ZT 18441 KHC (5900608) - Snapper 44" Zero-Turn Mower, 18hp Control Group Panel Parts Diagram

44" Zero-Turn Mower, 18hp

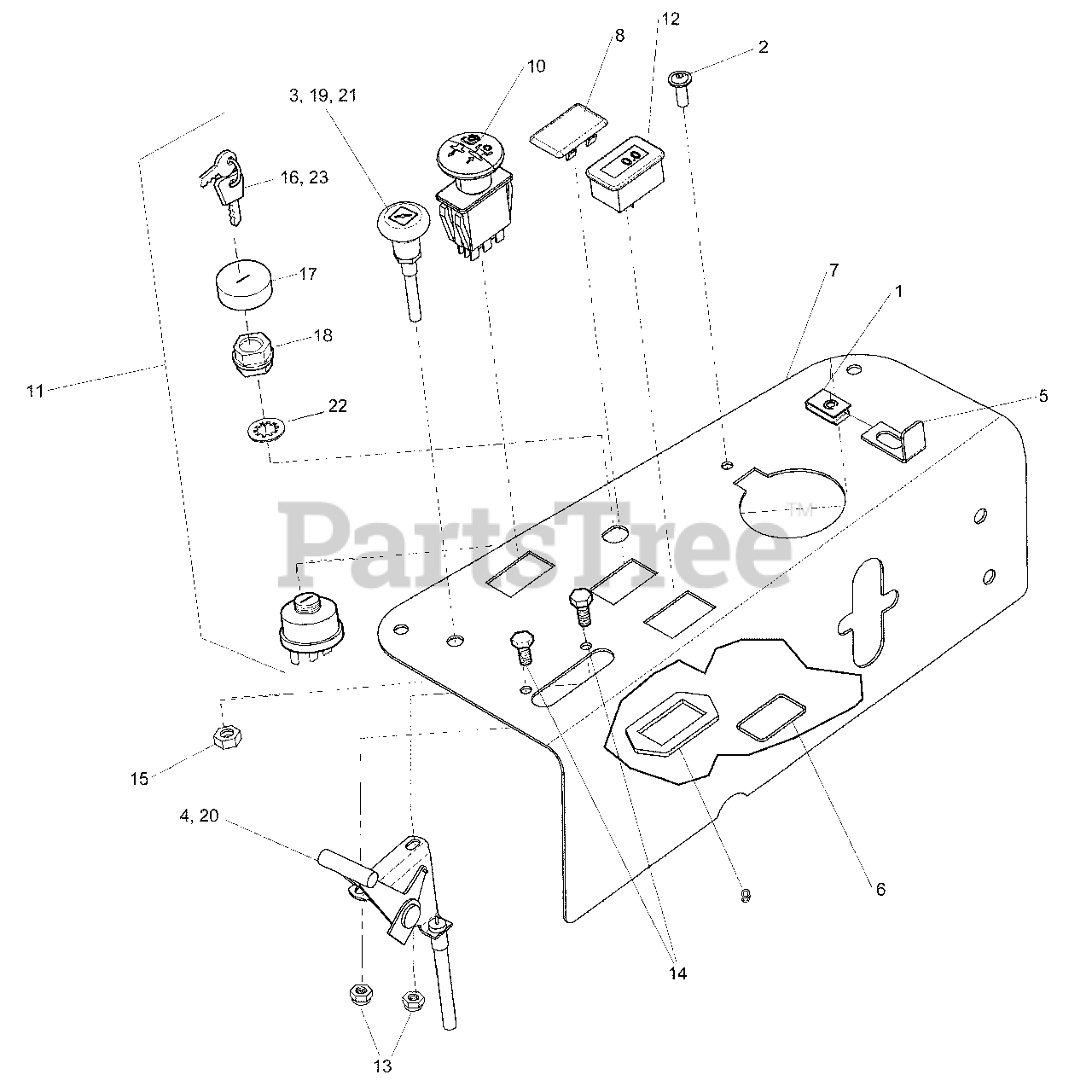

Control Group Panel Parts Diagram

  • Title

1

Snapper 5022665

BODY CLIP, 1/4-20 X .500 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

2

Snapper 5025299X6

SCREW, ALLEN HEAD, 1/4-20 X 3/4"
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 5047779

CABLE, CHOKE CONTROL, 51 (Z)
(Superseded to 5047779SM)

Note: (24HP Only)

$52.99

$

In Stock, only 4 left!

0

4

Snapper 5100182

CABLE, THROTTLE CONTROL, 36"
(Superseded to 5100182SM)

Note: (19HP, 20HP, 24HP Only)

$76.99

$

Usually ships in 2-12 days

0

5

Snapper 5049022

BRACKET, LOCK
(Superseded to 5049022ASM)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 5022269

O-RING, 7/8" ID X 1/16" W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 5400717A

PLATE, CONTROL TANK COVER
(Superseded to 5400717ASM)

$38.99

$

Usually ships in 2-12 days

0

8

Snapper 1709188

HOLE, PLUG DASH
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

9

Snapper 5022222

RING, SWITCH RETAINER, PTO
(Superseded to 5022222SM)

$4.49

$

In Stock, only 2 left!

0

10

Snapper 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

11

Snapper 1737853

SWITCH ASMY-IGNITION INDAK NO KEYS/HKWR
(Superseded to 1737853YP)

$35.99

$

In Stock, Qty 20+

0

12

Snapper 5100996

HOUR METER, W/ SUPRESSOR
(Superseded to 5102417)

$65.99

$

In Stock, only 1 left!

0

13

Snapper 5025095

NUT, Hex Nylon Lock, 1/4-20
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

14

Snapper 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

15

Snapper 5025309

NUT, 3/8-24 HEX JAM
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

16

Snapper 1737836

KEYS, BLISTER PK KIDS+MWRS DON'T MIX, DOM, USA MODELS ONLY
(Superseded to 1737836YP)

Note: (USA Models Only)

$20.99

$

In Stock, only 1 left!

0

17

Snapper 1717550

COVER, SWITCH
(Superseded to 1717550SM)

$8.49

$

In Stock, Qty 15

0

18

Snapper 1717549

NUT-HEX FLANGE 5/8-32 IGN SW DIE CAST
(Superseded to 1717549SM)

$10.99

$

Usually ships in 2-12 days

0

19

Snapper 5100184

CABLE, CHOKE CONTROL, 43.5"
(Superseded to 5100184SM)

Note: (19HP, 20HP Only)

$40.99

$

In Stock, Qty 5

0

20

Snapper 5100181

CABLE, THROTTLE CONTROL, 27.5"
(Superseded to 5100181SM)

Note: (18HP Only)

$51.99

$

In Stock, only 1 left!

0

21

Snapper 5100185

CABLE, CHOKE CONTROL, 35.25"
(Superseded to 5102875)

Note: (18HP Only)

$30.99

$

Usually ships in 2-12 days

0

22

Snapper 1960547

LOCKWASHER-INTERNAL TOOTH, .625 THIN BLK
(Superseded to 1960547SM)

$4.49

$

In Stock, only 3 left!

0

23

Snapper 1737837

KEYS, BLISTER PK KIDS+MWRS DON'T MIX, EXP, CE MODELS ONLY
(Superseded to 1737837YP)

Note: (CE Models Only)

$21.99

$

In Stock, only 1 left!

0
