ZT 18440 KH (5091000) - Snapper 44" Zero-Turn Mower, 18hp 44" Mower Deck - Roller Bar Group Parts Diagram

44" Zero-Turn Mower, 18hp

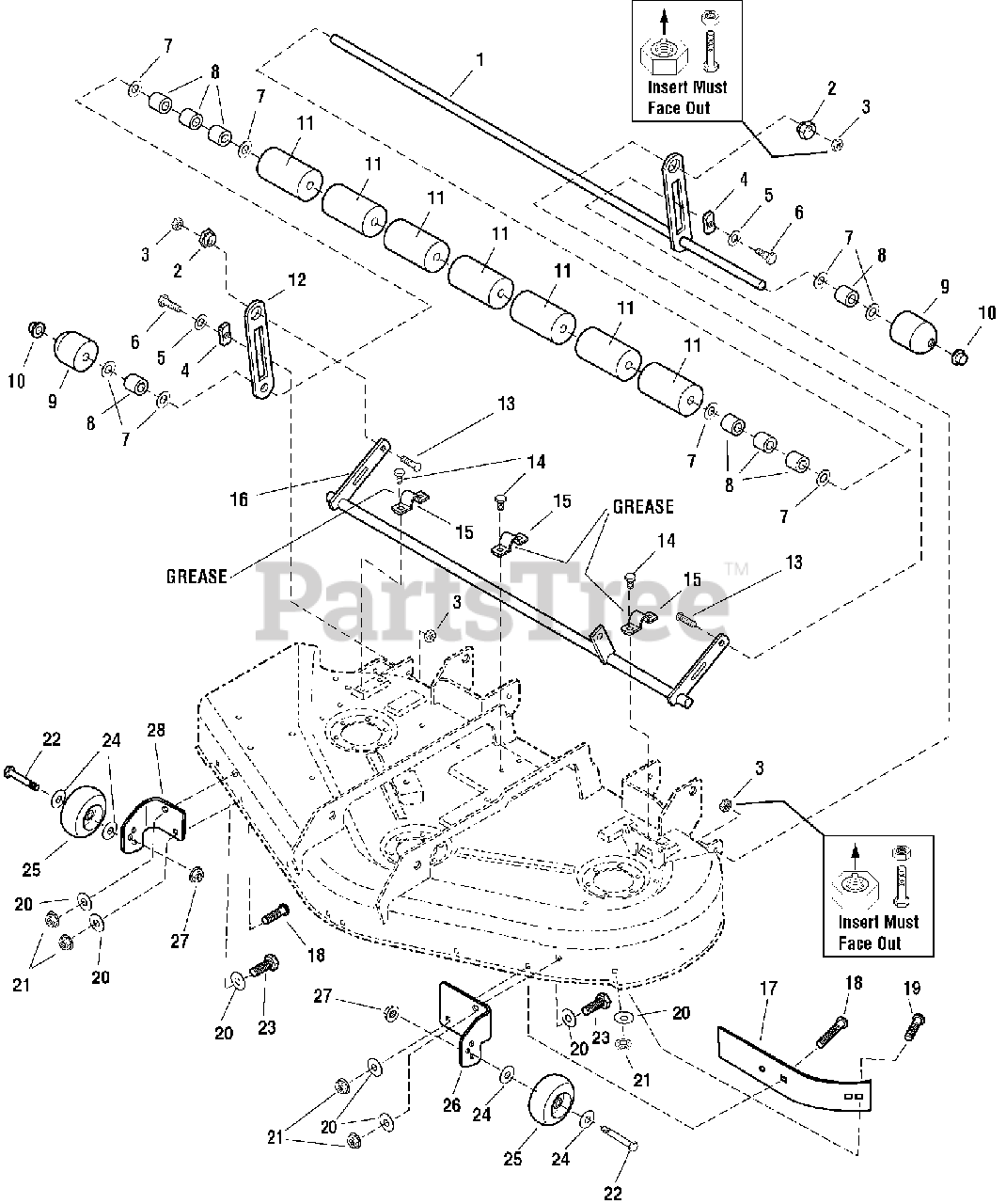

44" Mower Deck - Roller Bar Group Parts Diagram

  • Title

1

Snapper 5048676C

SHAFT, ROLLER, 44"
(Superseded to 5048676CSM)

$164.99

$

Usually ships in 2-12 days

0

2

Snapper 1704082

NUT, ADJUSTER
(Superseded to 1704082SM)

$5.49

$

In Stock, Qty 15

0

3

Snapper 7960641

NUT, HEX ALUMINUM INSERT LOCK, 3/8-16

$

$

Currently unavailable

4

Snapper 1677507

SLIDE
(Superseded to 1677507SM)

$6.99

$

In Stock, only 3 left!

0

5

Snapper 7091587

WASHER, PLAIN, 1/2
(Superseded to 704123)

Note: (Was 1924361)

$4.49

$

In Stock, only 3 left!

0

6

Snapper 2172622

BOLT, SHOULDER, 3/8-16
(Superseded to 2172622SM)

$6.99

$

In Stock, Qty 20+

0

7

Snapper 1924366

WASHER, .661 ID X 1.12 OD X .11, BLACK
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 1602946

SPACER, 25/64 X 13/16 X 13/16, STEEL, BLACK
(Superseded to 1602946SM)

$13.99

$

In Stock, Qty 20+

0

9

Snapper 1717675

ROLLER, ROUNDED
(Superseded to 1717675SM)

$6.99

$

In Stock, Qty 20+

0

10

Snapper 1960520

NUT, PUSH
(Superseded to 1960520SM)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 1668513

ROLLER
(Superseded to 1668513SM)

$10.99

$

In Stock, Qty 20+

0

12

Snapper 503849040

BAR, ROLLER
(Superseded to 5049040CSM)

$26.99

$

Usually ships in 2-12 days

0

13

Snapper 1931352

CARRIAGE BOLT, 3/8-16 X 1-1/2
(Superseded to 1931352SM)

$4.49

$

In Stock, only 4 left!

0

14

Snapper 7091541

CAPSCREW, HEX HEAD TAPTITE, 5/16-18 X 3/4
(Superseded to 703228)

Note: (Was 1664847)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 1665374A

STRAP
(Superseded to 1665374SM)

$7.99

$

Usually ships in 2-12 days

0

16

Snapper 5048672C

SHAFT, DECK LIFT, 44"
(Superseded to 5048672CSM)

$100.99

$

Usually ships in 2-12 days

0

17

Snapper 1724538A

SHORT BLOWOUT BAFFLE
(Superseded to 1724538ASM)

$45.99

$

In Stock, only 1 left!

0

18

Snapper 5025145X8

CARRIAGE BOLT, 5/16-18 X 1
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

19

Snapper 5025145X6

CARRIAGE BOLT, 5/16-18 X 3/4
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

20

Snapper 7091098

WASHER, 5/16, PLAIN, SAE
(Superseded to 703302)

Note: (Was 5025155)

$4.49

$

In Stock, Qty 20+

0

21

Snapper 7091298

NUT, 5/16-18, HEX, NYLON LOCK
(Superseded to 703902)

Note: (Was 5025057)

$3.99

$

In Stock, Qty 20+

0

22

Snapper 2108765

BOLT, REAR WHEEL
(Superseded to 2108765SM)

$6.49

$

In Stock, Qty 20+

0

23

Snapper 5025011X8

CAPSCREW, HEX HEAD,5/16-18 X 1
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

24

Snapper 80003590

WASHER
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

25

Snapper 1714760

GAUGE WHEEL
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

26

Snapper 5049017C

BRACKET, GAUGE WHEEL, LH
(Superseded to 1719852ASM)

$26.99

$

In Stock, only 1 left!

0

27

Snapper 1930645

NUT, FLANGE, SIDELOCK, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

28

Snapper 5049018C

BRACKET, GAUGE WHEEL, RH
(Superseded to 1719853ASM)

$29.99

$

In Stock, only 1 left!

0
