ZT 18440 KH (5091000) - Snapper 44" Zero-Turn Mower, 18hp 44" Mower Deck - Caster Mount Group Parts Diagram

44" Zero-Turn Mower, 18hp

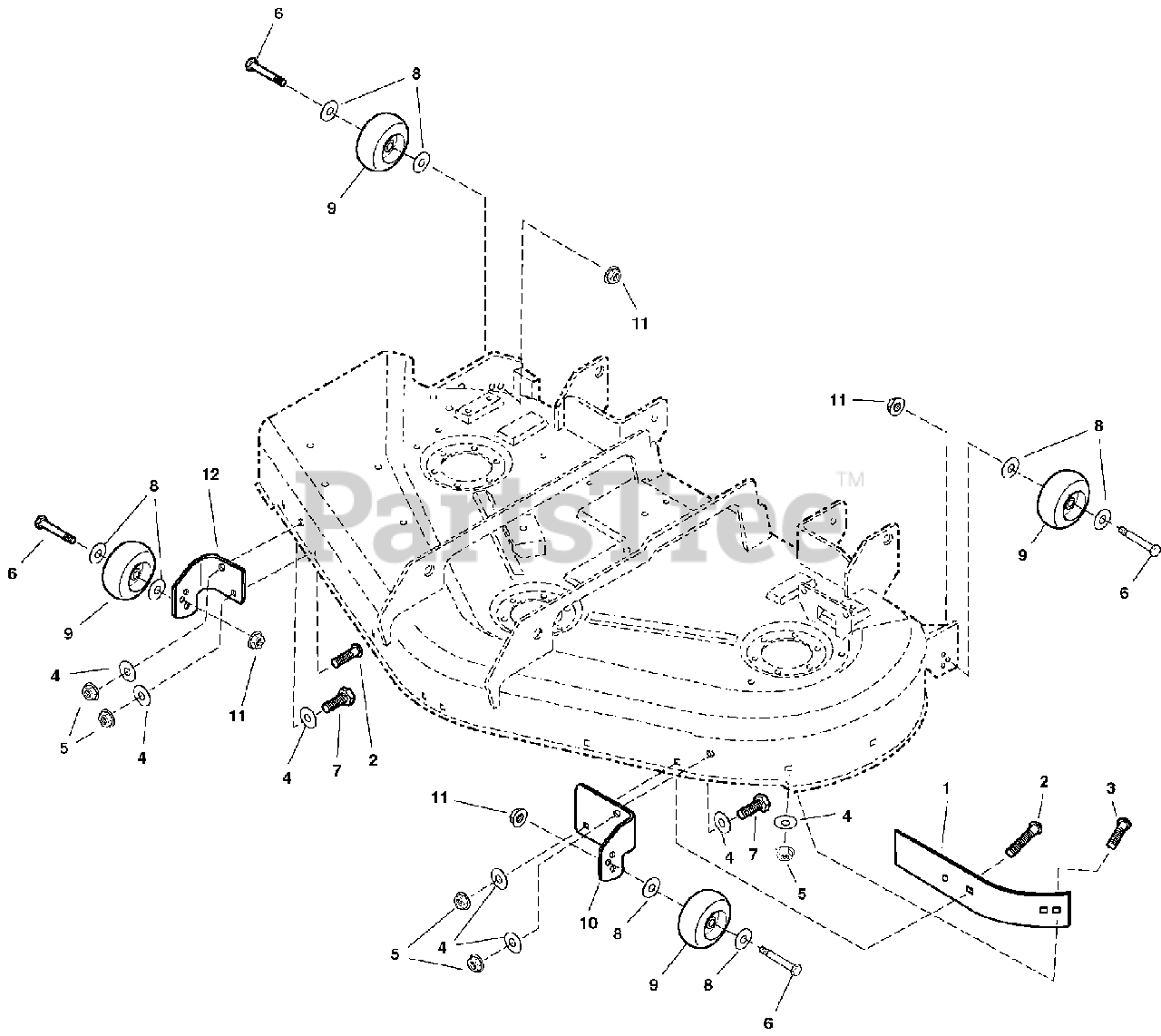

44" Mower Deck - Caster Mount Group Parts Diagram

  • Title
1

Snapper 1724538A

SHORT BLOWOUT BAFFLE
(Superseded to 1724538ASM)

$45.99

$

In Stock, only 1 left!

0

2

Snapper 5025145X8

CARRIAGE BOLT, 5/16-18 X 1
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

3

Snapper 5025145X6

CARRIAGE BOLT, 5/16-18 X 3/4
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

4

Snapper 7091098

WASHER, 5/16, PLAIN, SAE
(Superseded to 703302)

Note: (Was 5025155)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7091298

NUT, 5/16-18, HEX, NYLON LOCK
(Superseded to 703902)

Note: (Was 5025057)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 2108765

BOLT, REAR WHEEL
(Superseded to 2108765SM)

$6.49

$

In Stock, Qty 20+

0

7

Snapper 5025011X8

CAPSCREW, HEX HEAD, 5/16-18 X 1
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

8

Snapper 80003590

WASHER
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

9

Snapper 1714760

GAUGE, WHEEL
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

10

Snapper 5049017D

BRACKET, GAUGE WHEEL, LH
(Superseded to 1719852ASM)

$26.99

$

In Stock, only 1 left!

0

11

Snapper 1930645

NUT, FLANGE, SIDELOCK, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Snapper 5049018D

BRACKET, GAUGE WHEEL, RH
(Superseded to 1719853ASM)

$29.99

$

In Stock, only 1 left!

0
