ZT 1844 (2690487) - Massey Ferguson 44" Zero-Turn Mower, 18hp Kohler Fuel Tank Group (273FSG0) Parts Diagram

44" Zero-Turn Mower, 18hp Kohler

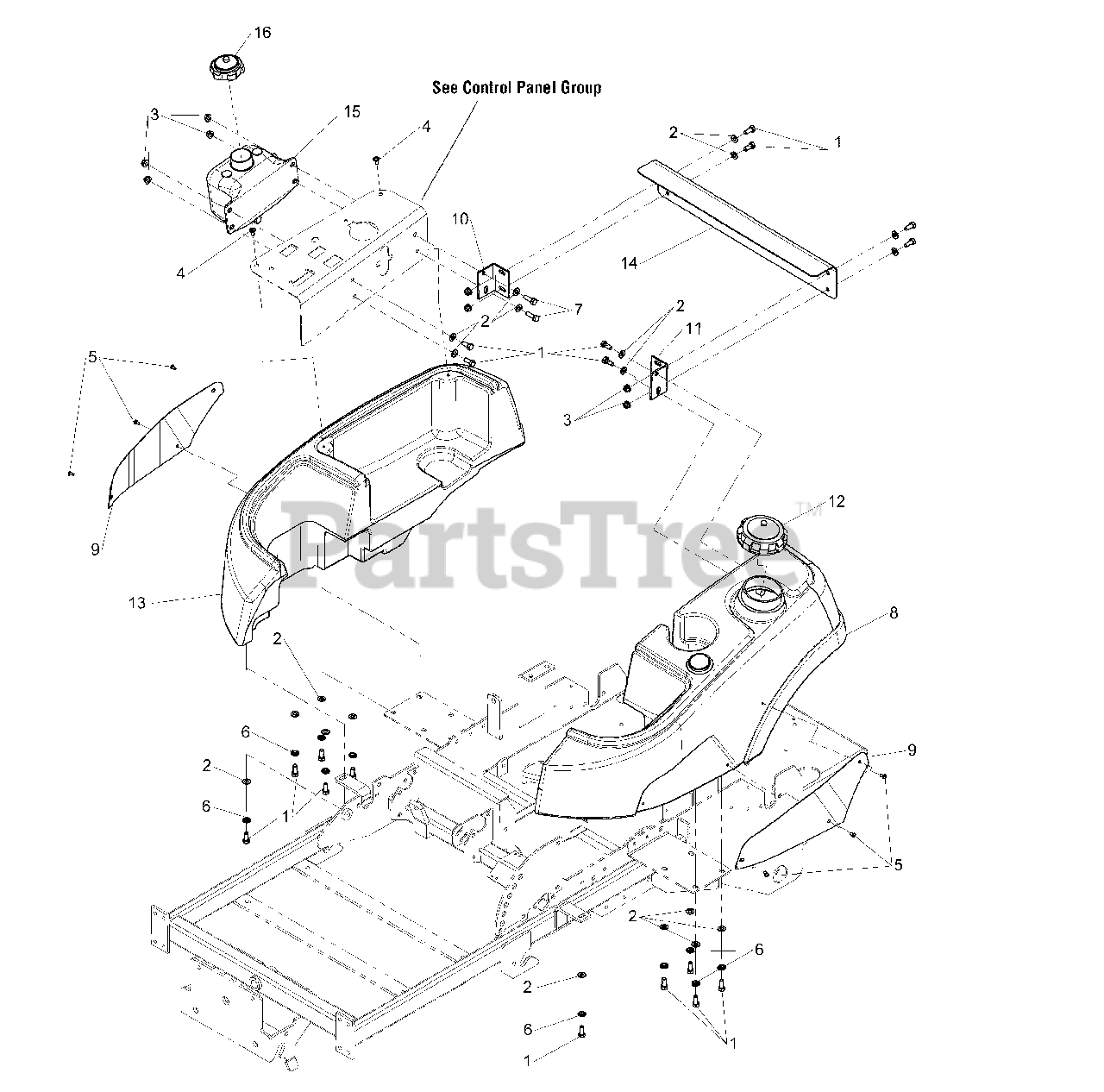

Fuel Tank Group (273FSG0) Parts Diagram

  • Title

1

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4" GRD5

$3.99

$

In Stock, only 3 left!

0

2

Simplicity 5025155SM

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 5025299X4SM

SCREW, ALLEN HEAD, 1/4-20X1/2

$4.99

$

In Stock, only 2 left!

0

5

Simplicity 5025386SM

SCREW, Allen Head, #10-24 x 3/8"

$3.99

$

In Stock, only 2 left!

0

6

Simplicity 5025170SM

WASHER, 5/16" LOCK

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1" GD5
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

8

Simplicity 5048751SM

ASSM,
(Superseded to 5102544YP)

Note: (Includes Ref. 17 - 23)

$500.99

$

Usually ships in 2-12 days

0

9

Simplicity 5048909DYP

PLATE, FUEL TANK BADGE

$29.99

$

In Stock, only 2 left!

0

10

Simplicity 5048763DYP

BRACKET, REAR SUPPORT - RH

$6.99

$

Usually ships in 2-12 days

0

11

Simplicity 5400836DYP

BRACKET, REAR SUPPORT - LH

$8.99

$

Usually ships in 2-12 days

0

12

Simplicity 5022158SM

CAP, FUEL TANK, 3-1/2" NECK
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 20+

0

13

Simplicity 5048752SM

TANK, FUEL - RH

$279.99

$

Usually ships in 2-12 days

0

14

Simplicity 5400919DSM

PLATE, SUPPORT, REAR TANK

$30.99

$

Usually ships in 2-12 days

0

15

Simplicity 5023345SM

TANK, 2QT HYDRAULIC

$87.99

$

Usually ships in 2-12 days

0

16

Simplicity 5023191SM

CAP, HYDRAULIC RESERVOIR

$28.99

$

In Stock, only 1 left!

0

17

Simplicity 5023061SM

ELBOW FITTING

$10.99

$

In Stock, only 1 left!

0

18

Simplicity 1654930SM

GROMMET

$7.99

$

In Stock, Qty 20+

0

19

Simplicity 5050925X20SM

HOSE, 20"
(Superseded to 5101217SM)

$50.99

$

In Stock, Qty 20+

0

20

Simplicity 5020835SM

HOSE CLAMP
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

21

Simplicity 5023067SM

SCREEN FITTING

$13.99

$

In Stock, only 1 left!

0

22

Simplicity 5023197SM

FUEL GAUGE

$57.99

$

In Stock, only 4 left!

0

23

Simplicity 5022917X1SM

GROMMET

$6.99

$

In Stock, Qty 9

0
