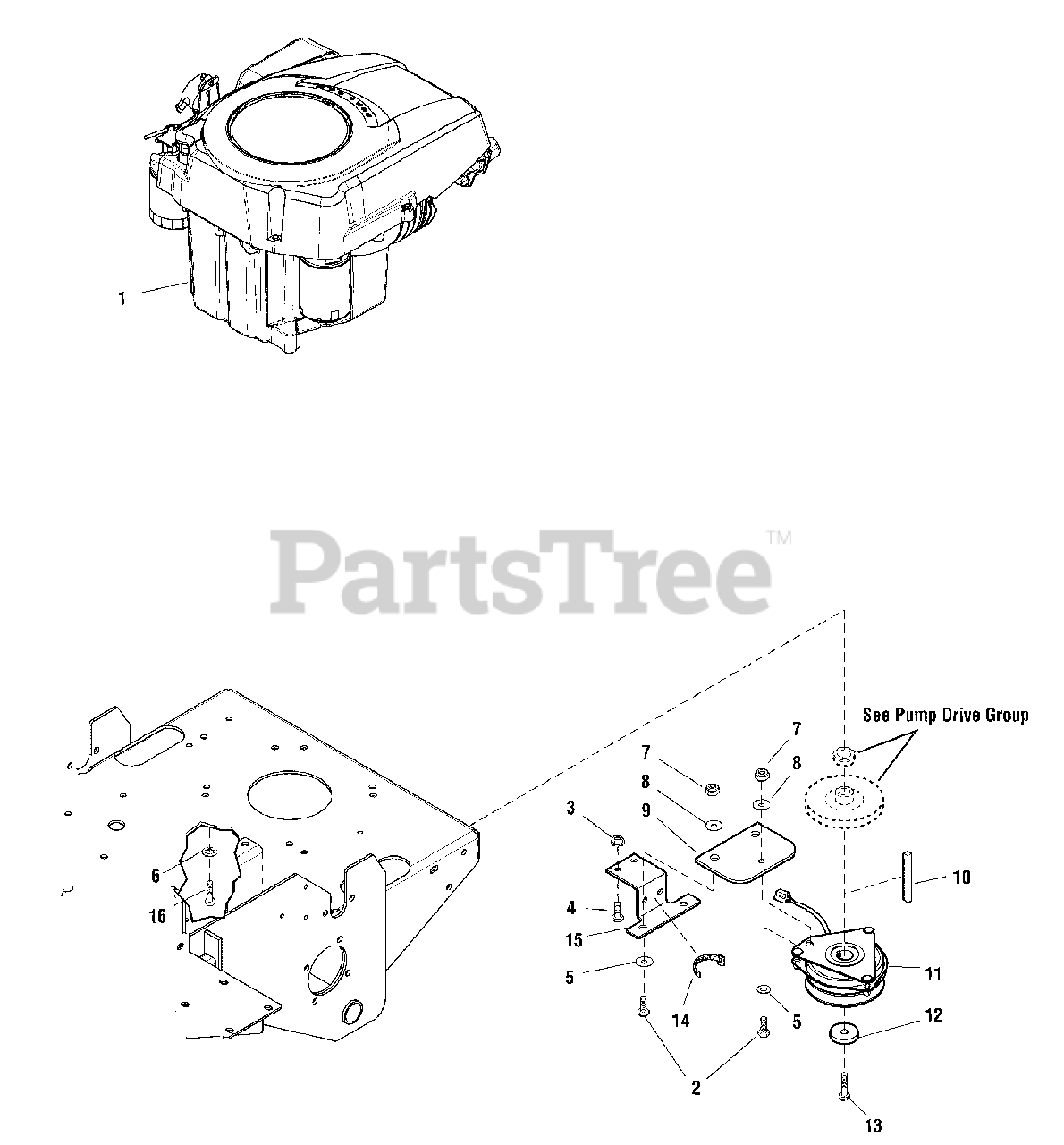

ZT 1844 (2690487) - Massey Ferguson 44" Zero-Turn Mower, 18hp Kohler Engine Group - PTO (273ENGK) Parts Diagram

44" Zero-Turn Mower, 18hp Kohler

Engine Group - PTO (273ENGK) Parts Diagram

  • Title

1

ENGINE, 18HP KOHLER

$

$

Not available

2

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

3

Simplicity 5025392SM

NUT, HEX NYLOCK FLANGE, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4

$3.99

$

In Stock, only 4 left!

0

5

Simplicity 5025155SM

WASHER, SAE, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

6

Simplicity 5025188SM

WASHER, 5/16 INT TOOTH LOCK

$3.99

$

In Stock, only 1 left!

0

7

Simplicity 5025057SM

NUT, HEX NYLON LOCK, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 5044617SM

WASHER, CLUTCH ANCHOR, 5/16

$8.49

$

In Stock, only 2 left!

0

9

Simplicity 5043636SM

CLUTCH ANCHOR PAD

$11.99

$

In Stock, only 1 left!

0

10

Simplicity 5050407X18

KEY, 1/4 SQ. X 2-1/4
(Superseded to 5050407X18SM)

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 5023100SM

CLUTCH, ELECTRIC

$535.99

$

Usually ships in 2-12 days

0

12

Simplicity 5042132SM

SPACER, .45 X 1.62 X .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

13

Simplicity 5103300SM

BOLT, CRANKSHAFT, 7/16-20 X 3-1/4"
(Superseded to 5103300YP)

$5.99

$

In Stock, only 1 left!

0

14

Simplicity 5021030SM

TIE WRAP

$2.99

$

In Stock, only 3 left!

0

15

Simplicity 5048226DYP

CLUTCH ANCHOR

$27.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025335SM

BOLT, M8-1.25 x 35MM

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 5048681SM

HOSE, OIL DRAIN

Note: (Not Shown)

$18.99

$

In Stock, only 1 left!

0

18

Simplicity 5050833X6

WIRE LOOM, OIL DRAIN
(Superseded to 5050833X6YP)

Note: (Not Shown)

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 5021500SM

CLAMP, VINYL INSULATED

Note: (Not Shown)

$3.99

$

Usually ships in 2-12 days

0
