ZT 1844 (2690487) - Massey Ferguson 44" Zero-Turn Mower, 18hp Kohler Electrical Group (273EGS0) Parts Diagram

44" Zero-Turn Mower, 18hp Kohler

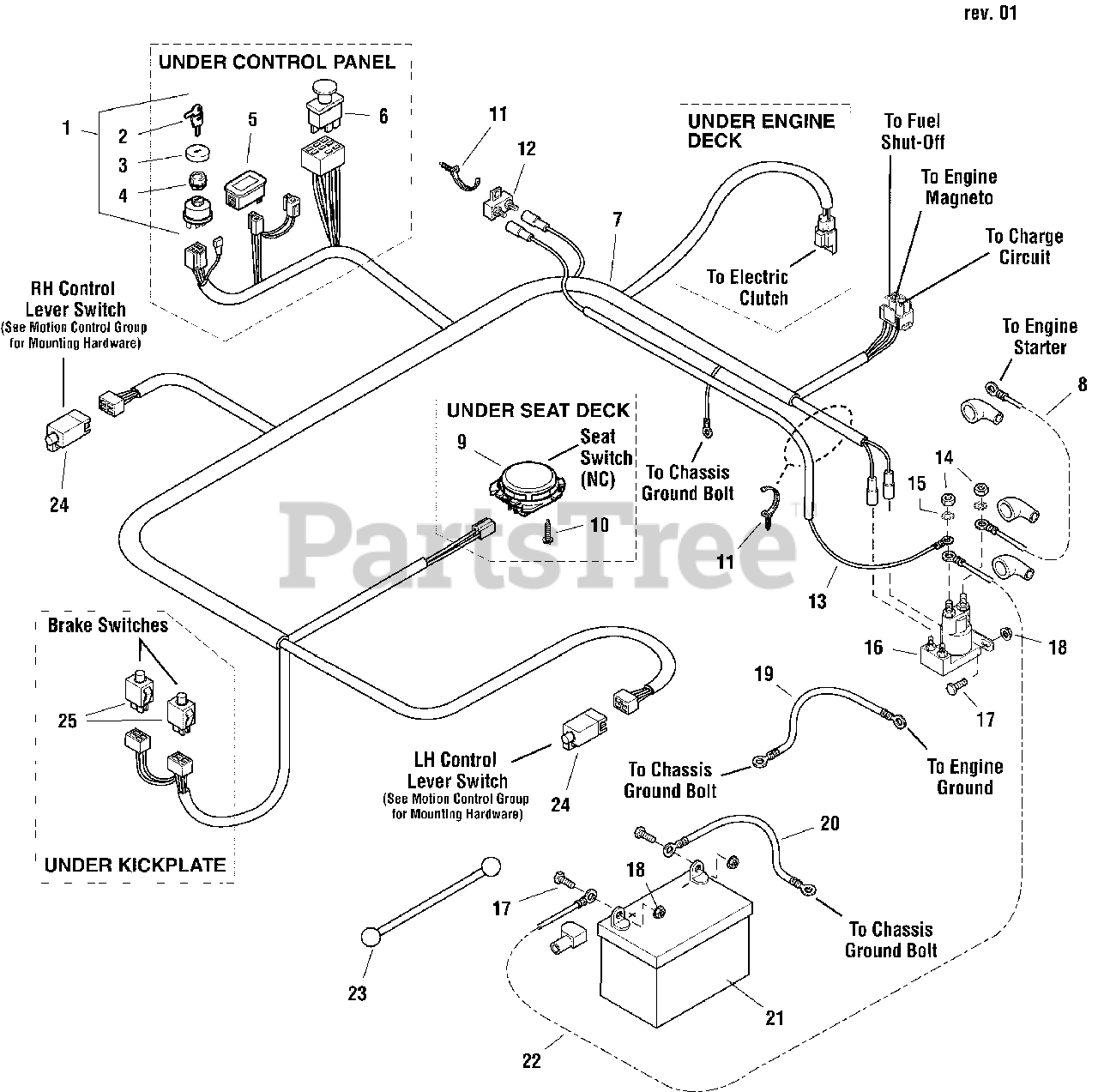

Electrical Group (273EGS0) Parts Diagram

  • Title

1

Simplicity 1686734SM

SWITCH, IGNITION,

Note: (Includes Ref No. 2-4)

$32.99

$

In Stock, Qty 20+

0

2

Simplicity 1717163SM

KEY, Ignition Molded

Note: (Set of 2)

$8.99

$

In Stock, Qty 20+

0

3

Simplicity 1704346SM

COVER

$4.49

$

In Stock, only 1 left!

0

4

Simplicity 5022791SM

PLASTIC NUT

$3.49

$

In Stock, only 1 left!

0

5

Simplicity 1731184SM

HOUR METER, DIGITAL

Note: (Includes Retaining Ring)

$64.99

$

In Stock, only 1 left!

0

6

Simplicity 1722887SM

SWITCH, PTO

$33.99

$

In Stock, Qty 20+

0

7

Simplicity 5048640SM

MAIN HARNESS ASSEMBLY

$384.99

$

Usually ships in 2-12 days

0

8

Simplicity 5048756SM

CABLE, #6 X 15" LONG, RING TERMINAL

$19.99

$

Usually ships in 2-12 days

0

9

Simplicity 1716368SM

SWITCH, SEAT, GRAY, NC

$20.99

$

In Stock, only 1 left!

0

10

Simplicity 1960536SM

BOLT, HEX WASHER HEAD PLASTITE, 1/4 X 1/2

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 5021199SM

CABLE TIE, PUSH MOUNT

$5.99

$

In Stock, only 1 left!

0

12

Simplicity 5023222SM

CIRCUIT BREAKER, 20A

$

$

Not available

13

Simplicity 5048938SM

CRICUIT BREAKER WIRE ASSEMBLY

$8.99

$

Usually ships in 2-12 days

0

14

Simplicity 2820438SM

NUT, HEX JAM, 5/16-24

$3.49

$

In Stock, only 2 left!

0

15

Simplicity 5023217SM

WASHER, LIGHT LOCK, 5/16

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

17

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 5025126SM

NUT, HEX SERRATED FLANGE, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 9

0

19

Simplicity 5044014SM

CABLE, #6 X 10" LONG, RING TERMINAL

$14.99

$

Usually ships in 2-12 days

0

20

Simplicity 5021406SM

CABLE, #6 X 22" LONG, RING TERMINAL

$16.99

$

Usually ships in 2-12 days

0

21

Simplicity 1685215SM

BATTERY, 12 VOLT

$

$

Not available

22

Simplicity 5021542SM

CABLE, #6 X 30" LONG, RING TERMINAL

$29.99

$

Usually ships in 2-12 days

0

23

Simplicity 1722009SM

STRAP, BATTERY, 14 LONG, RUBBER

$10.99

$

In Stock, only 1 left!

0

24

Simplicity 1717050SM

SWITCH, PLUNGER, N.O./N.C.

$17.99

$

In Stock, Qty 20+

0

25

Simplicity 7022886YP

SWITCH, DP NO/NC SNAP-IN

$14.99

$

In Stock, Qty 20+

0
