ZT 1844 (2690487) - Massey Ferguson 44" Zero-Turn Mower, 18hp Kohler 44" & 50" Mower Deck - Housing, Arbors & Blades Group (2734HC0) Parts Diagram

44" Zero-Turn Mower, 18hp Kohler

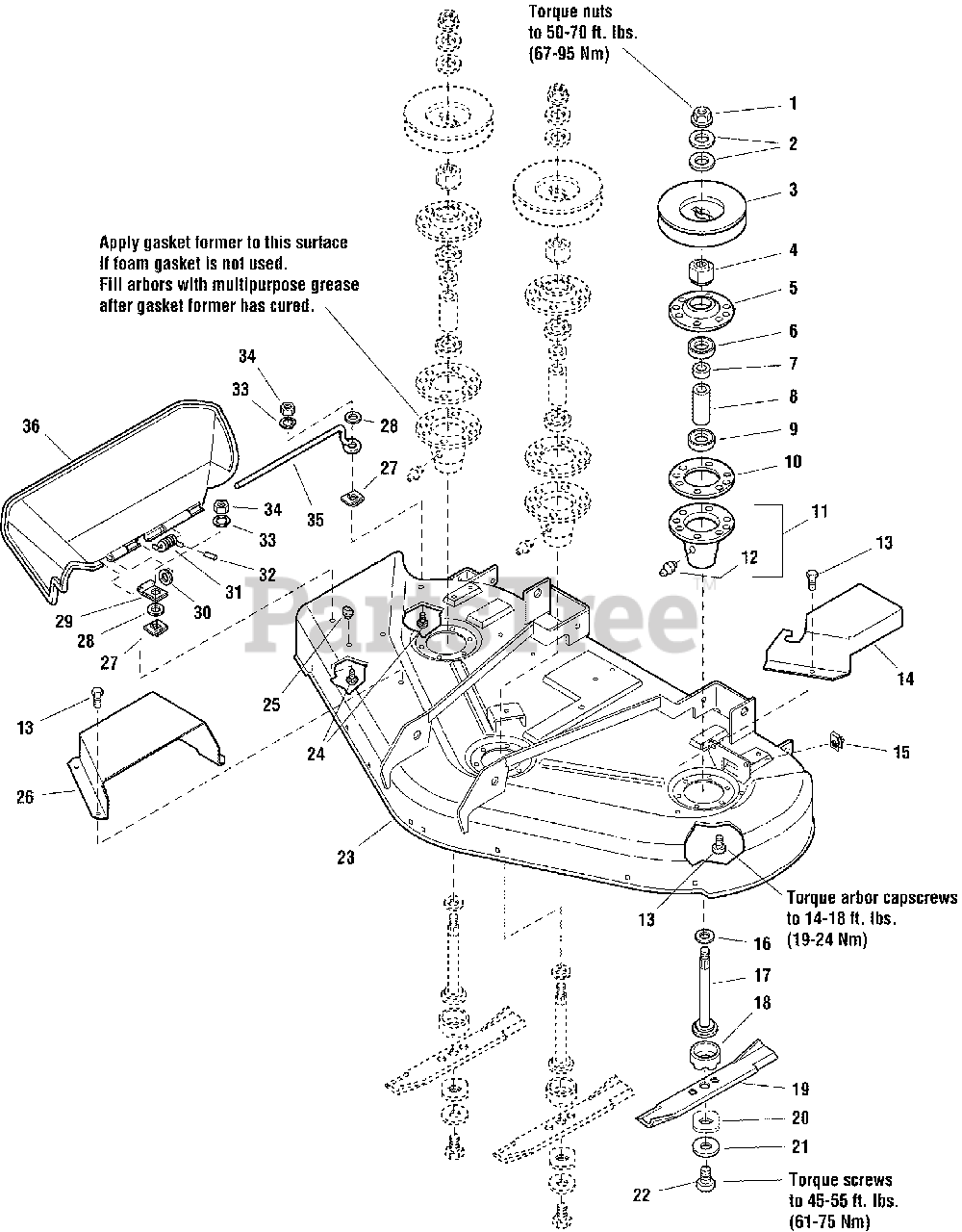

44" & 50" Mower Deck - Housing, Arbors & Blades Group (2734HC0) Parts Diagram

  • Title

1

Simplicity 1714419SM

NUT, HEX FLANGE, 9/16-18

$5.99

$

In Stock, Qty 20+

0

2

Simplicity 1713675SM

WASHER, BELLEVILLED, 9/16

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1713161SM

PULLEY

$20.99

$

In Stock, Qty 20+

0

4

Simplicity 1713613SM

HUB

$15.99

$

In Stock, Qty 20+

0

5

Simplicity 1655729ASM

COVER, ARBOR HOUSING

$14.99

$

Usually ships in 2-12 days

0

6

Simplicity 2108202SM

BEARING, BALL, 3/4 X 1-3/4 X 5/8

$11.99

$

In Stock, Qty 20+

0

7

Simplicity 1715724SM

SPACER, 21/32 X 3/4 X 5/8

$9.49

$

In Stock, Qty 20+

0

8

Simplicity 1732544SM

SPACER, 11/16 X 5/32 X 2-11/16

$5.49

$

In Stock, Qty 20+

0

9

Simplicity 1705897SM

BEARING, BALL, 11/16 X 1-9/16 X 15/32

$8.49

$

In Stock, Qty 20+

0

10

Simplicity 1707335SM

SEAL, FOAM

$5.99

$

In Stock, Qty 20+

0

11

Simplicity 1713338ASM

ARBOR HOUSING ASSEMBLY

Note: (Includes Ref No. 12)

$41.99

$

In Stock, Qty 20+

0

12

Simplicity 1704314SM

FITTING, GREASE
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 1664847SM

BOLT TAPTITE, 5/16-18 X 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 5400403DSM

COVER, ARBOR, LH

$30.99

$

Usually ships in 2-12 days

0

15

Simplicity 5022308SM

BODY CLIP, 5/16-18

$5.99

$

In Stock, only 2 left!

0

16

Simplicity 1713619SM

WASHER, 9/16, BLACK

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1713609SM

SHAFT, ARBOR

$30.99

$

In Stock, Qty 20+

0

18

Simplicity 1713196SM

SHIELD, GRASS, LOWER

$9.49

$

In Stock, Qty 20+

0

19

Simplicity 1704100ASM

BLADE, Mower, 16-1/8
(Superseded to 1716696ASM)

Note: (For 44" Deck)

$25.99

$

In Stock, Qty 20+

0

19

Simplicity 1708229ASM

BLADE, MOWER, 18-1/8
(Superseded to 1716697ASM)

Note: (For 50" Deck)

$24.99

$

In Stock, Qty 20+

0

20

Simplicity 1713089SM

WASHER, HEX, 11/16 X 2

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 1656916SM

WASHER, SPRING, 15/32, BLACK

$7.49

$

In Stock, Qty 20+

0

22

Simplicity 2823471SM

BOLT, 7/16-14 X 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 5400395DYP

MOWER HOUSING ASSEMBLY, 44" MOWER

Note: (Includes Decals)

$

$

Not available

23

Simplicity 5049095DYP

MOWER HOUSING ASSEMBLY, 50" MOWER

Note: (Includes Decals)

$

$

Not available

24

Simplicity 1931318SM

CARRIAGE BOLT, 1/4-20 X 7/8

$4.49

$

In Stock, only 2 left!

0

25

Simplicity 1705115SM

PLUG, HOLE

$4.49

$

In Stock, only 1 left!

0

26

Simplicity 5401091DYP

COVER, ARBOR, RH

$51.99

$

Usually ships in 2-12 days

0

27

Simplicity 1960518SM

NUT, PUSH
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 1960353SM

WASHER, 1/4, BLACK
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

29

Simplicity 1704873SM

CLAMP

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1919326SM

WASHER, 5/16, BLACK

$4.49

$

In Stock, Qty 8

0

31

Simplicity 1723938SM

SPRING

$

$

Not available

32

Simplicity 1723323SM

VINYL CAP

$4.99

$

In Stock, only 1 left!

0

33

Simplicity 1916964SM

WASHER, LOCK, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

34

Simplicity 1916622SM

NUT, HEX, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 1706709

ROD, DEFLECTOR
(Superseded to 1706709SM)

$8.49

$

In Stock, Qty 20+

0

36

Simplicity 1705449SM

DEFLECTOR, PLASTIC

$122.99

$

In Stock, only 2 left!

0
