ZT 1844 (2690487) - Massey Ferguson 44" Zero-Turn Mower, 18hp Kohler 44" & 50" Mower Deck - Belt & Idler Group (2734PB0) Parts Diagram

44" Zero-Turn Mower, 18hp Kohler

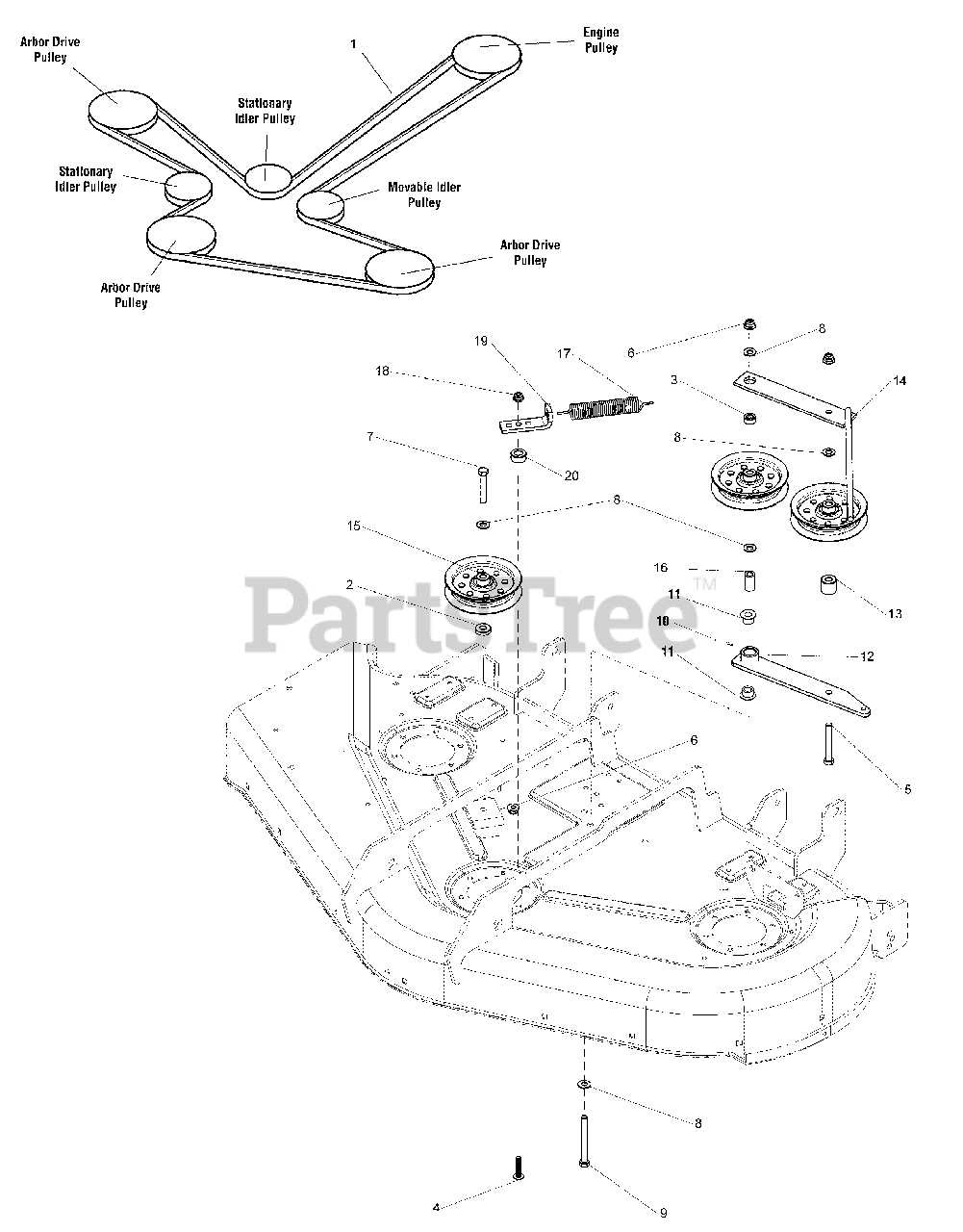

44" & 50" Mower Deck - Belt & Idler Group (2734PB0) Parts Diagram

  • Title

1

Simplicity 5023256SM

BELT

Note: (For 44" Deck)

$108.99

$

In Stock, Qty 19

0

1

Simplicity 5023255SM

BELT

Note: (For 50" Deck)

$91.99

$

Usually ships in 2-12 days

0

2

Simplicity 5044960SM

SPACER, .39 X 1.00 X .25

$5.49

$

In Stock, Qty 7

0

3

Simplicity 5044933SM

SPACER, .39 X .75 X .38

$4.99

$

In Stock, only 2 left!

0

4

Simplicity 5023157SM

BOLT, 5/16-18 X 1-1/2" FLANGE

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025013X22SM

BOLT, 3/8-16 X 2-3/4" GD5

$4.49

$

In Stock, only 3 left!

0

6

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5025013X18SM

BOLT, 3/8-16 X 2-1/4" GD5

$3.99

$

In Stock, only 1 left!

0

8

Simplicity 5025156SM

WASHER 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

9

Simplicity 5025013X28SM

BOLT, 3/8-16 X 3-1/2" GD5

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 5020095SM

FITTING, Grease

$3.99

$

In Stock, only 2 left!

0

11

Simplicity 1676148SM

BUSHING, 5/8 X 3/4 X 13/32, POWDER METAL

$5.99

$

In Stock, Qty 20+

0

12

Simplicity 5400398DYP

ASSM, IDLER ARM 44" SIMPLICITY

$88.99

$

Usually ships in 2-12 days

0

13

Simplicity 5047125SM

SPACER, .39 X 1.00 X .88

$7.99

$

In Stock, only 2 left!

0

14

Simplicity 5400412DYP

WELD, MOUNT, IDLER, TENSION

$37.99

$

Usually ships in 2-12 days

0

15

Simplicity 5049003DYP

ASSM, PULLEY IDLER

$

$

Not available

16

Simplicity 1674669SM

SPACER

$11.99

$

In Stock, Qty 20+

0

17

Simplicity 1715435SM

SPRING, EXTEN, 1.0 OD, 6" LG, .118

$9.49

$

In Stock, Qty 20+

0

18

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 5048383DYP

ANCHOR, SPRING

$17.99

$

Usually ships in 2-12 days

0

20

Simplicity 5045023SM

SPACER, .52 X 1.00 X .44

$6.49

$

Usually ships in 2-12 days

0
