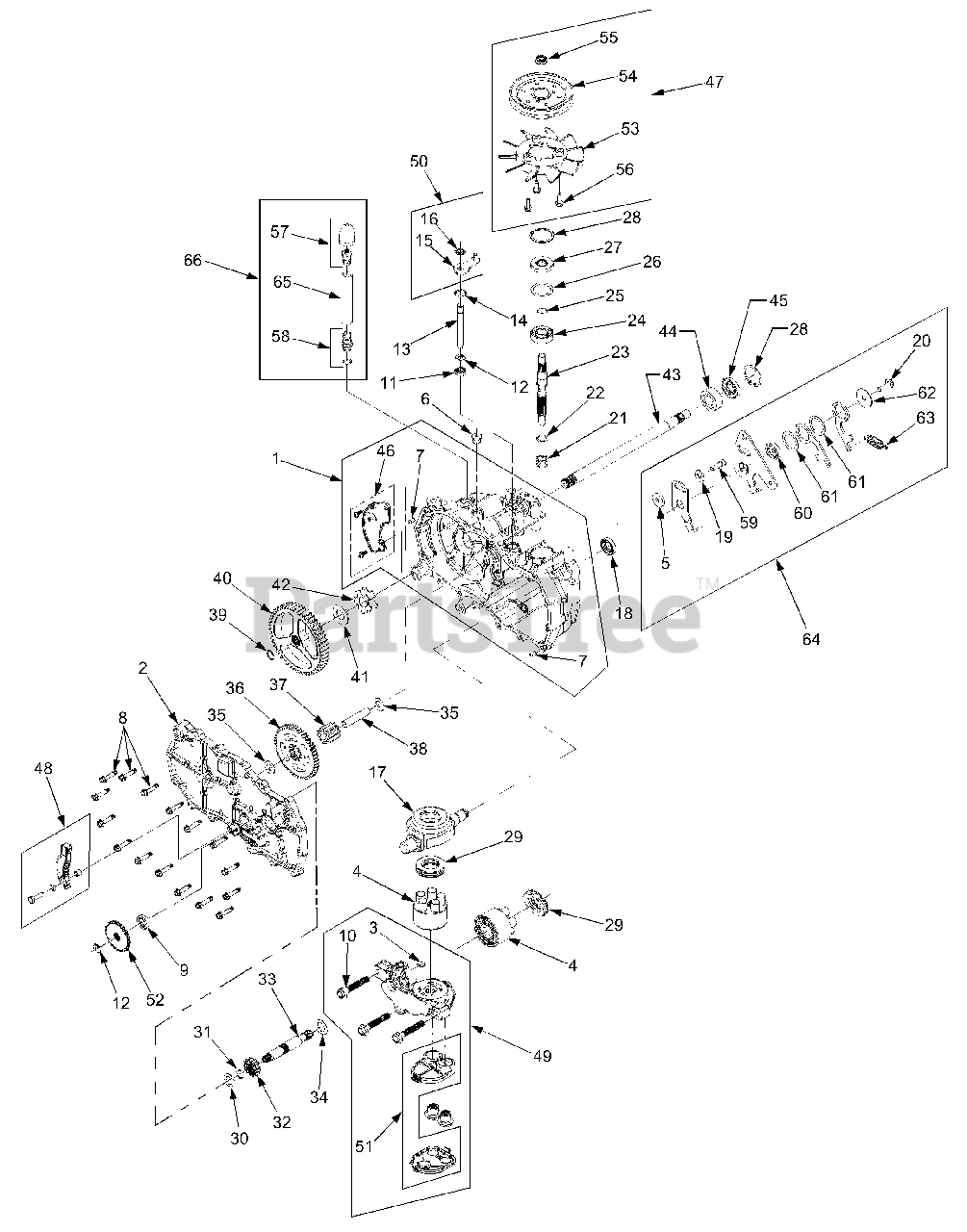

ZT-17 (17AA5A4G790) - White Outdoor 42" Zero-Turn Mower (2004) LH Transmission Parts Diagram

42" Zero-Turn Mower

LH Transmission Parts Diagram

  • Title

1

White Outdoor HG-70862L

Housing Assembly, Main

$364.99

$

Usually ships in 3-6 days

0

2

White Outdoor HG-70863L

Side Assembly,

$159.99

$

Usually ships in 3-6 days

0

3

White Outdoor HG-51448

Plate, Bypass

$4.49

$

Usually ships in 3-6 days

0

4

White Outdoor HG-70331

Block Assembly

$188.99

$

Usually ships in 3-6 days

0

5

White Outdoor HG-51949

Spacer, .32 x 1.005

$

$

Not available

6

White Outdoor HG-9005110-5600

Plug, SAE #6

$20.99

$

Usually ships in 3-6 days

0

7

White Outdoor HG-9004800-2506

Pin, Stainless

$4.49

$

Usually ships in 3-6 days

0

8

White Outdoor HG-51190

Screw, Hex Self Tapping, 1/4-20 x 1.25
(Superseded to HG-53246)

$3.99

$

Usually ships in 3-6 days

0

9

White Outdoor HG-44761

Seal, Lip, .625 x 1.0 x .25
(Superseded to HG-70719)

$14.99

$

Usually ships in 3-6 days

0

10

White Outdoor HG-50016

Bolt, Hex Flange, 3/8-24 x 2.5

$4.99

$

Usually ships in 3-6 days

0

11

White Outdoor HG-51626

Seal, Lip, .375 x .75 x .25
(Superseded to HG-55232)

$4.99

$

Usually ships in 3-6 days

0

12

White Outdoor HG-51628

Ring, Retaining, .375 Ext.

$4.49

$

In Stock, Qty 5

0

13

White Outdoor HG-51625

Rod, Bypass

$16.99

$

Usually ships in 3-6 days

0

14

White Outdoor HG-51627

Ring, Retaining, .75 Int.

$4.49

$

Usually ships in 3-6 days

0

15

White Outdoor HG-51910

Arm, Bypass

$14.99

$

Usually ships in 3-6 days

0

16

White Outdoor HG-51630

Ring, Retaining, .375 Push

$3.99

$

In Stock, only 1 left!

0

17

White Outdoor HG-51048

Swashplate, Trunnion

$88.99

$

Usually ships in 3-6 days

0

18

White Outdoor HG-51140

Seal, Lip, 18 x 32 x 7

$9.99

$

Usually ships in 3-6 days

0

19

White Outdoor HG-44130

Washer, Flat, 11/32 x 7/8 x 1/16
(Superseded to 736-0371)

$4.49

$

In Stock, only 3 left!

0

20

White Outdoor HG-51812

Screw, 5/16-24 x 1.0

$4.49

$

Usually ships in 3-6 days

0

21

White Outdoor HG-2003014

Spring, Compression

$4.99

$

Usually ships in 3-6 days

0

22

White Outdoor HG-2003017

Washer, .591 x .787 x .04

$4.49

$

Usually ships in 3-6 days

0

23

White Outdoor HG-51062

Shaft, Input
(Superseded to HG-51062P)

$134.99

$

Usually ships in 3-6 days

0

24

White Outdoor HG-50315

Bearing, Ball, 17mm x 40 x 12

$18.99

$

Usually ships in 3-6 days

0

25

White Outdoor HG-2000022

Ring, Wire Retaining, .561

$4.49

$

Usually ships in 3-6 days

0

26

White Outdoor HG-50951

Spacer

$4.49

$

Usually ships in 3-6 days

0

27

White Outdoor HG-51161

Seal, Lip, 17 x 40 x 7

$11.99

$

Usually ships in 3-6 days

0

28

White Outdoor HG-50329

Ring, Retaining

$11.99

$

Usually ships in 3-6 days

0

29

White Outdoor HG-50551

Bearing, Thrust, 30 x 52 x 13
(Superseded to HG-50551P)

$29.99

$

Usually ships in 3-6 days

0

30

White Outdoor HG-44371

Washer, Flat, 5/8 x 1.0 x .05

$15.99

$

Usually ships in 3-6 days

0

31

White Outdoor HG-44145

Ring, Retaining

$4.49

$

In Stock, only 2 left!

0

32

White Outdoor HG-51130

Gear, Pinion, 13T

$9.49

$

Usually ships in 3-6 days

0

33

White Outdoor HG-51632

Shaft, Motor

$

$

Not available

34

White Outdoor HG-51069

Washer, .71 x 1.16 x .04

$4.49

$

Usually ships in 3-6 days

0

35

White Outdoor HG-50132

Washer, HT, .5 x 1.0 x .032

$4.49

$

Usually ships in 3-6 days

0

36

White Outdoor HG-51129

Gear, 10T/48T

$53.99

$

Usually ships in 3-6 days

0

37

White Outdoor HG-51043

Gear, Jackshaft, 10T

$28.99

$

Usually ships in 3-6 days

0

38

White Outdoor HG-51083

Pin, Jackshaft

$33.99

$

Usually ships in 3-6 days

0

39

White Outdoor HG-44871

Ring, Spiral Retaining

$4.49

$

Usually ships in 3-6 days

0

40

White Outdoor HG-51633

Gear, Bull, 52T
(Superseded to HG-71714)

$422.99

$

Usually ships in 3-6 days

0

41

White Outdoor HG-44875

Washer, 3/4 x 1.5 x .13

$4.49

$

Usually ships in 3-6 days

0

42

White Outdoor HG-51088

Bearing, Sleeve

$10.99

$

In Stock, only 2 left!

0

43

White Outdoor HG-51954

Axle
(Superseded to HG-71714)

$422.99

$

Usually ships in 3-6 days

0

44

White Outdoor HG-51089

Bushing, .752 x 1.571 x .625

$12.99

$

In Stock, only 1 left!

0

45

White Outdoor HG-51066

Seal, Lip, .75 x 1.577 x .25

$9.49

$

Usually ships in 3-6 days

0

46

White Outdoor HG-70868L

Kit, Expansion Plate

$21.99

$

Usually ships in 3-6 days

0

47

HG-70591

Kit, Fan-Pulley

$

$

Not available

48

White Outdoor HG-70865

Kit, Brake Arm

$20.99

$

In Stock, only 4 left!

0

49

White Outdoor HG-70864L

Kit, Center Section-Filter
(Superseded to HG-71529)

$232.99

$

In Stock, only 3 left!

0

50

White Outdoor HG-71006

Kit, Bypass Arm

$19.99

$

Usually ships in 3-6 days

0

51

White Outdoor HG-70911

Kit, Filter
(Superseded to HG-71497)

$19.99

$

Usually ships in 3-6 days

0

52

White Outdoor HG-51635

Disc, Brake Cog

$17.99

$

Usually ships in 3-6 days

0

53

White Outdoor HG-51365

Fan, 6" 10 Blade

$

$

Not available

54

White Outdoor HG-50302

Pulley Kit, 4.5

$

$

Not available

55

White Outdoor HG-51244

Nut, Hex Insert Lock, 1/2-20
(Superseded to 912-0346)

$4.99

$

In Stock, Qty 8

0

56

White Outdoor HG-50752

Screw, Hex Wash. Hd. Tapp 1/4-20

$4.49

$

Usually ships in 3-6 days

0

57

White Outdoor HG-70921

Cap Assembly, Vent

$

$

Not available

58

White Outdoor HG-70110

Fitting/O-ring Assembly

$31.99

$

In Stock, Qty 7

0

59

White Outdoor HG-51616

Screw, Patch, 5/16-24 x 1.0
(Superseded to HG-71341)

$9.49

$

Usually ships in 3-6 days

0

60

White Outdoor HG-51947

Bushing, Pilot, 1.125

$

$

Not available

61

White Outdoor HG-51948

Washer, Plastic

$

$

Not available

62

White Outdoor HG-51950

Washer, 1.5 x .34 x .062
(Superseded to HG-54244)

$6.49

$

Usually ships in 3-6 days

0

63

White Outdoor HG-51399

Spring, Extension
(Superseded to HG-52401)

$4.99

$

In Stock, only 1 left!

0

64

White Outdoor HG-71094

Kit, Return Assembly

$

$

Not available

65

White Outdoor HG-51401

Hose, .5 x 4.0

$

$

Not available

66

HG-71004

Kit, Breather Assembly

$

$

Not available

White Outdoor HG-70853

Kit, Seal

$70.99

$

Usually ships in 3-6 days

0
