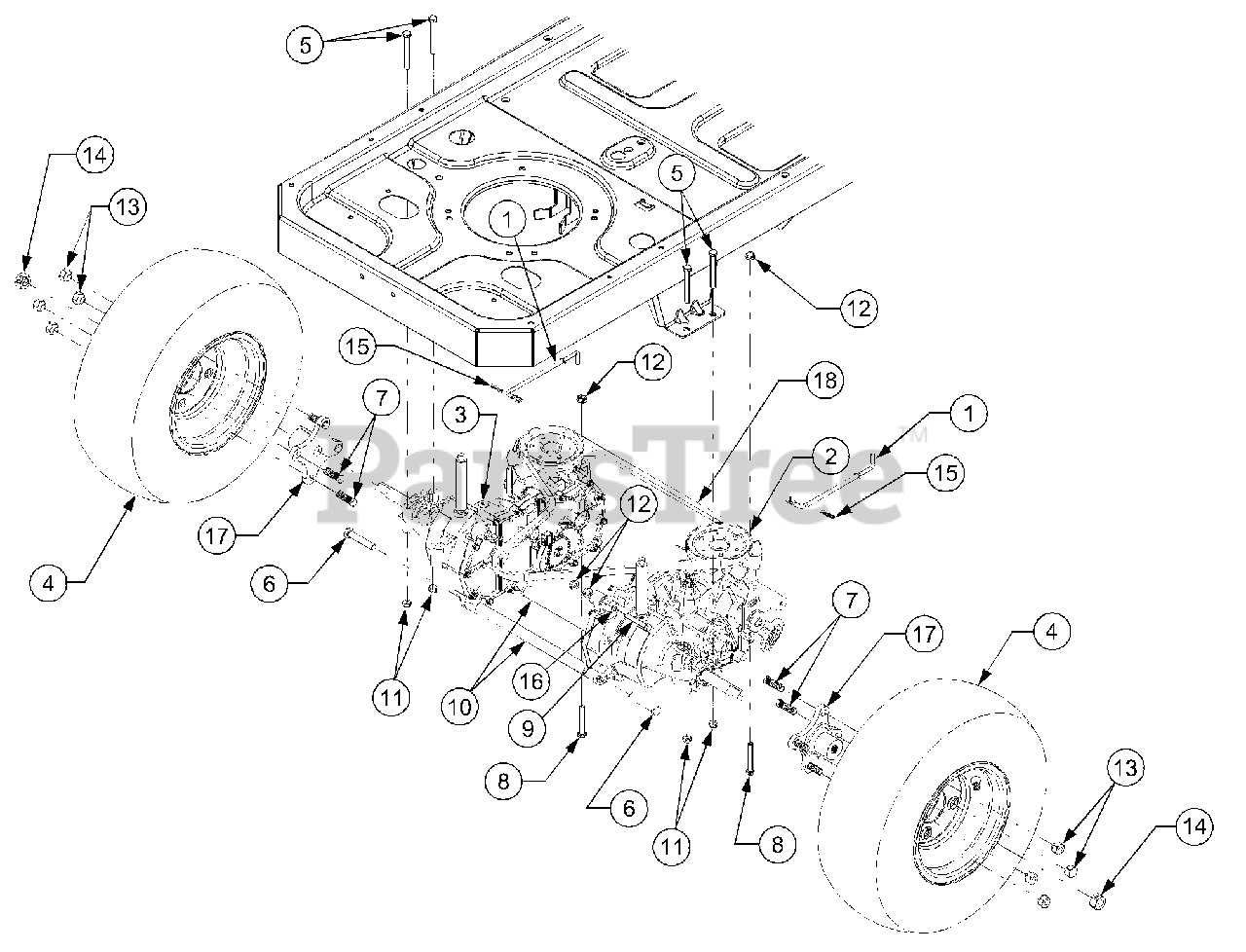

ZT-17 (17AA5A4G790) - White Outdoor 42" Zero-Turn Mower (2004) Drive Parts Diagram

42" Zero-Turn Mower

Drive Parts Diagram

  • Title

1

White Outdoor 603-04178

Rod, Bypass
(Superseded to 747-04217C-0637)

$21.99

$

Usually ships in 3-6 days

0

2

White Outdoor 759-04143

Transmission Assembly, RH, Service Kit

Note: replaces 618-04163 NLA

$1457.99

$

Usually ships in 3-6 days

0

White Outdoor 732-04448

Neutral Return Spring

Note: Included in service kit, not shown, must have the same color neutral return spring on RH & LH transmission

$10.99

$

In Stock, Qty 19

0

White Outdoor 618-04432A

Transmission, RH
(Superseded to 918-04432B)

Note: Double D axle

$1805.99

$

Usually ships in 3-6 days

0

3

White Outdoor 759-04142

Transmission Assembly, LH, Service Kit

Note: replaces 618-04164 NLA

$

$

Not available

White Outdoor 732-04448

Neutral Return Spring

Note: Included in service kit, not shown, must have the same color neutral return spring on RH & LH transmission

$10.99

$

In Stock, Qty 19

0

White Outdoor 618-04431A

Transmission, LH
(Superseded to 918-04431B)

Note: Double D axle

$1719.99

$

Usually ships in 3-6 days

0

4

White Outdoor 634-04170

Wheel Assembly, 18 x 6.5 x 8
(Superseded to 634-04127-0911)

$233.99

$

Usually ships in 3-6 days

0

4

White Outdoor 734-0294

Tire, 18 x 6.5 x 8

Variations

White Outdoor 734-0294-0901

Tubeless Tire, 18 X 6.5 X 8" - Carlisle (0901)

$85.99

$

In Stock, Qty 5

0

White Outdoor 734-0294-0902

Tubeless Tire, 18 X 6.5 X 8" - Dico (0902)

$85.99

$

In Stock, Qty 5

0

White Outdoor 734-0294-0905

Tubeless Tire, 18 X 6.5 X 8" - Duro (0905)

$85.99

$

In Stock, Qty 5

0

$

$

4

White Outdoor 734-0255

Valve Assembly
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0176

Screw, Hex Cap, 5/16-18 x 2.75 GR5

$4.49

$

In Stock, only 2 left!

0

6

White Outdoor 710-04308

Screw, Hex Lock, 7/16-14 x 2.25 GR5

$

$

Not available

7

White Outdoor 710-0852

Stud, Rib Neck, 7/16-14 x 1.6

$6.49

$

In Stock, only 2 left!

0

8

White Outdoor 710-0395

Screw, Hex Cap, 5/16-18 x 2.25 GR5

$4.99

$

In Stock, only 1 left!

0

9

White Outdoor 710-3103

Screw, Hex Cap, 5/16-18 x 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 711-04232

Brace, Transmission

$

$

Not available

11

White Outdoor 712-0429

Nut, Hex Insert Lock, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-3050

Nut, Lug, 7/16-14

$9.99

$

In Stock, only 2 left!

0

14

White Outdoor 712-04088

Nut, Hex Lock, 9/16-18 GR "C"

$6.99

$

Usually ships in 3-6 days

0

15

White Outdoor 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 736-0275

Washer, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

17

White Outdoor 748-04054

Hub, Wheel Spline
(Superseded to 748-04054-0637)

Variations

White Outdoor 748-04054-0637

REAR WHEEL HUB-POWDER BLACK - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

17

White Outdoor 618-04494

Hub, Wheel 42 Double D
(Superseded to 918-04494)

Note: Included in service kit, not shown

$

$

Not available

18

White Outdoor 754-04043

V-Belt, Type A Sec x 57.7
(Superseded to 954-04043B)

$42.99

$

In Stock, Qty 20+

0

White Outdoor 710-3119

SCREW:3/8"-16 x .750:GR5:LOCK

Note: Included in service kit, not shown

$6.99

$

In Stock, only 1 left!

0

White Outdoor 726-04059

CLAMP:HOSE: .750

Note: Included in service kit, not shown

$

$

Not available

White Outdoor 736-0227

WASHER:FLAT: .390 x 1.50 x .134

Note: Included in service kit, not shown

$6.49

$

In Stock, Qty 9

0

White Outdoor 751-10474

HOSE:BREATHER

Note: Included in service kit, not shown

$38.99

$

Usually ships in 3-6 days

0

White Outdoor 737-3120

Drive System Fluid
(Superseded to 490-000-C051)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0
