ZT 1644 E (2690431) - Simplicity 44" Zero-Turn Mower, 16hp Hydro (2005) 44" Mower Deck - Housing & Arbor Group Parts Diagram

44" Zero-Turn Mower, 16hp Hydro

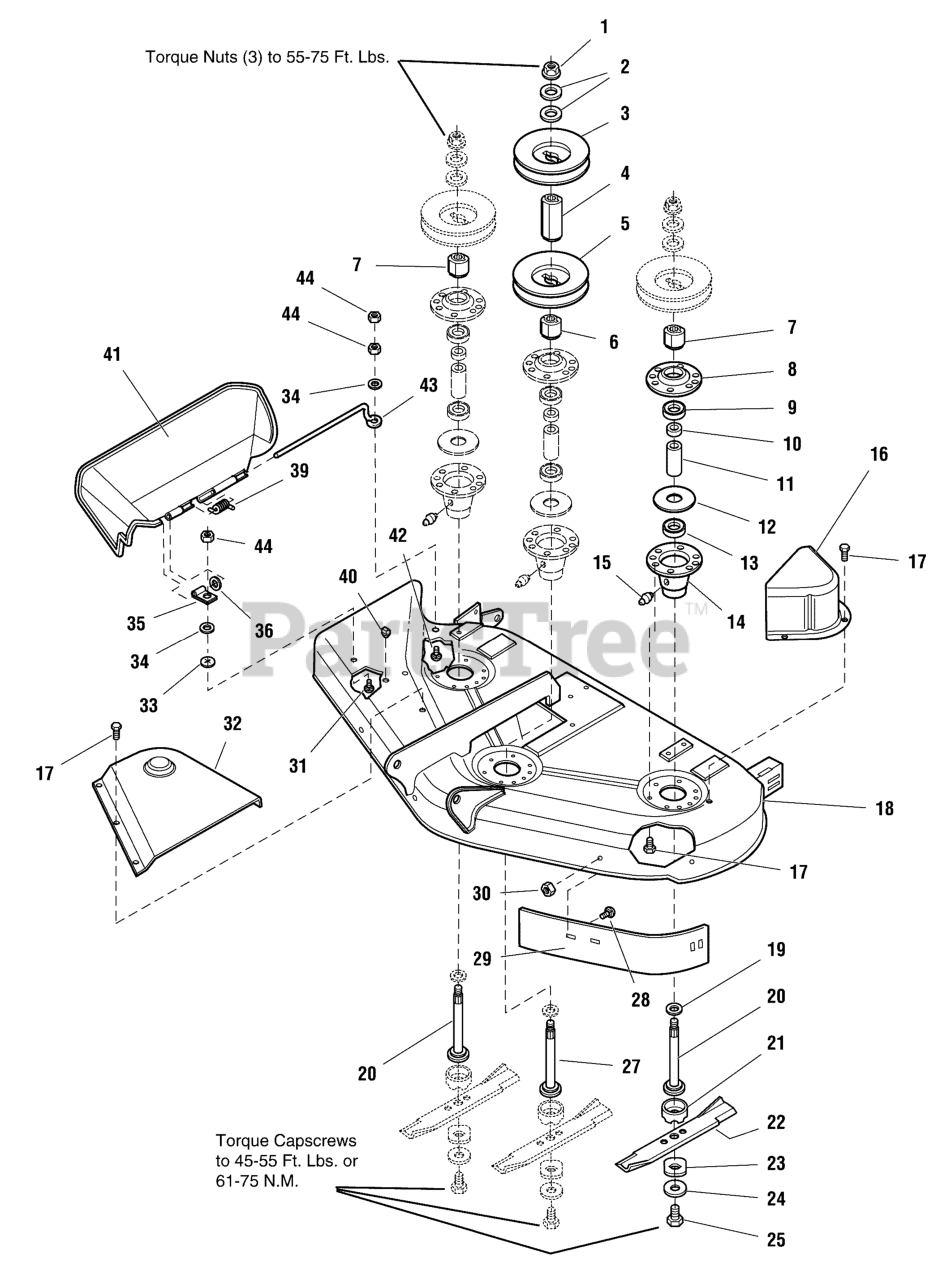

44" Mower Deck - Housing & Arbor Group Parts Diagram

  • Title

1

Murray 1714419SM

NUT, Hex Plange Non-Locking, 9/16-18

$5.99

$

In Stock, Qty 20+

0

2

Murray 1713675SM

WASHER, Bellville .56ID x 1.34 OD x .05T

$4.49

$

In Stock, Qty 20+

0

3

Murray 1720387SM

PULLEY

$20.99

$

In Stock, Qty 20+

0

4

Murray 1713158SM

HUB, Spacer, 2-13/32

$18.99

$

In Stock, Qty 20+

0

5

Murray 1713098SM

PULLEY

$19.99

$

In Stock, Qty 20+

0

6

Murray 1713533SM

HUB, 35/64

$9.99

$

In Stock, Qty 20+

0

7

Murray 1713197SM

HUB, Serated, 35/64

$6.99

$

In Stock, Qty 20+

0

8

Murray 1655729ASM

HOUSING, Arbor Top

$14.99

$

Usually ships in 2-12 days

0

9

Murray 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

10

Murray 1715724SM

SPACER, Bearing Sleeve

$9.49

$

In Stock, Qty 20+

0

11

Murray 1732544SM

SPACER, Tube

$5.49

$

In Stock, Qty 20+

0

12

Murray 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0

13

Murray 1705897SM

BEARING, Ball

$8.49

$

In Stock, Qty 20+

0

14

Murray 1713338ASM

HOUSING ASSEMBLY, Arbor Bottom, w/Lube Fitting

Note: (Includes Ref. No. 15)

$41.99

$

In Stock, Qty 20+

0

15

Murray 1704314SM

FITTING, Lube, 1/4 Drive
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

16

Murray 1720560ASM

COVER, Arbor
(Superseded to 84002518)

$90.99

$

In Stock, only 1 left!

0

17

Murray 1664847SM

CAPSCREW, Hex, Washer Head, Taptite, 5/16-18 x 3/4, G5
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

18

Murray 1729763C

HOUSING ASSEMBLY, 44" Mower Deck

$

$

Not available

19

Murray 1713619SM

WASHER, Cup

$4.49

$

In Stock, Qty 20+

0

20

Murray 1713195SM

SHAFT, Arbor with Extruded Washers (short)

$31.99

$

In Stock, Qty 8

0

21

Murray 1713196SM

SHIELD, Grass, Lower Arbor

$9.49

$

In Stock, Qty 20+

0

22

Murray 1727774ASM

BLADE, Mower 44"
(Superseded to 1716696ASM)

$25.99

$

In Stock, Qty 20+

0

23

Murray 1713089SM

WASHER, Hex

$4.99

$

In Stock, Qty 20+

0

24

Murray 1656916SM

WASHER, Spring, 3/8

$7.49

$

In Stock, Qty 20+

0

25

Murray 2823471SM

CAPSCREW, Hex Head, 7/16-14 x 1-1/4, G8
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

27

Murray 1713612SM

SHAFT, Arbor with Extruded Washers (Long)

$

$

Not available

28

Murray 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

29

Murray 1724538ASM

BAFFLE, Blowout, Short

$45.99

$

In Stock, only 1 left!

0

30

Murray 1927557SM

NUT, Hex Flange Whiz Lock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

31

Murray 1931318SM

CARRIAGE BOLT, 1/4-20 x 7/8, G5

$4.49

$

In Stock, only 2 left!

0

32

Murray 1703601SM

COVER, Arbor

$80.99

$

In Stock, only 1 left!

0

33

Murray 1960518SM

NUT, Push
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

34

Murray 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

35

Murray 1704873SM

CLAMP, Wire, 5/16 Diameter

$4.49

$

In Stock, Qty 20+

0

36

Murray 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 5

0

39

Murray 1723938SM

Sring, Torsion

$

$

Not available

40

Murray 1705115SM

PLUG, Button

$4.49

$

In Stock, only 1 left!

0

41

Murray 1705449SM

DEFLECTOR, Discharge

$122.99

$

In Stock, only 1 left!

0

42

Murray 1960633SM

CARRIAGE BOLT, 1/4-20 x 1-1/2
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0

43

Murray 1706709SM

ROD, Deflector

$8.49

$

In Stock, Qty 20+

0

44

Murray 1709195SM

SPACER, .66 X 7/8 X 1 1/4

$5.99

$

In Stock, Qty 20+

0
