ZSX4640 - Exmark Z-Spray Intermediate Stand-on Sprayer, 5.3 GPM Pump (SN: 413950474 & Above) (Rev C) (2023) Park Brake Assembly Parts Diagram

Z-Spray Intermediate Stand-on Sprayer, 5.3 GPM Pump

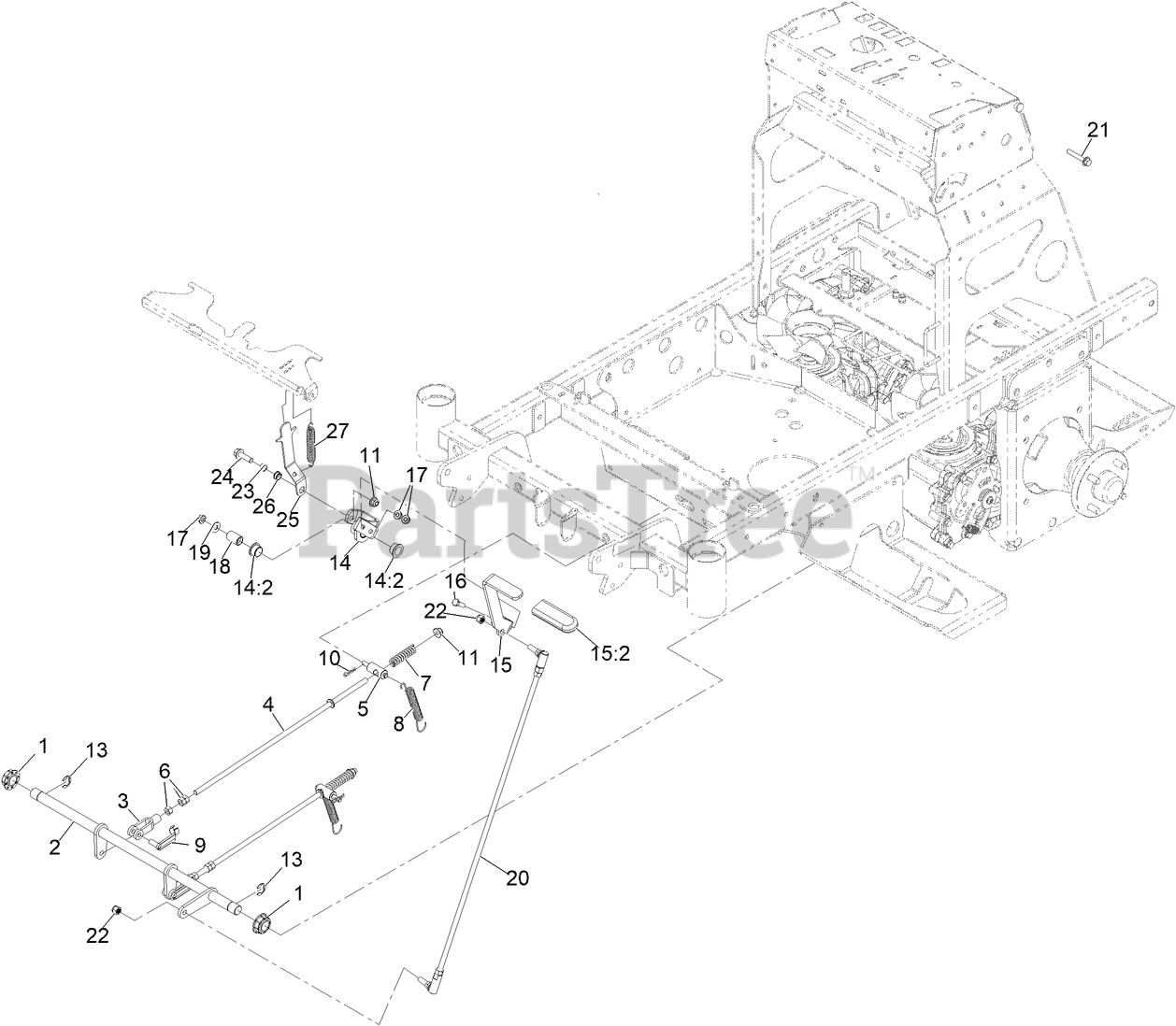

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 142-4668

BEARING-SPHERICAL

$22.99

$

Usually ships in 0 days

0

2

Exmark 142-3832

BRAKE ASM

$199.99

$

Usually ships in 3-6 days

0

3

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 12

0

4

Exmark 142-3860

ROD-BRAKE

$28.99

$

Usually ships in 3-6 days

0

5

Exmark 142-3859

FITTING-ROD, BRAKE

$28.99

$

Usually ships in 3-6 days

0

6

Exmark 126-0687

NUT-HEX

$5.49

$

Usually ships in 3-6 days

0

7

Exmark 142-3901

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

8

Exmark 142-3902

SPRING-EXTENSION

$3.49

$

Usually ships in 3-6 days

0

9

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.49

$

In Stock, Qty 6

0

10

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

11

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 5

0

13

Exmark 142-4693

RETAINER, E-RING

$4.99

$

Usually ships in 3-6 days

0

14

Exmark 142-5500

HANDLE-BRAKE, ASM

$80.99

$

Usually ships in 0 days

0

14:2

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

15

Exmark 142-6870

ASM-HANDLE, W/ GRIP

$41.99

$

Usually ships in 0 days

0

15:2

Exmark 132-4749

GRIP-LEVER

$5.49

$

In Stock, only 1 left!

0

16

Exmark 126-0683

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

17

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 15

0

18

Exmark 142-3879

SPACER-BRAKE, LINKAGE

$17.99

$

Usually ships in 3-6 days

0

19

Exmark HDW14535

FLAT WASHER, 5/16 NOM,ST

$1.49

$

In Stock, Qty 5

0

20

Linkage-Brake

Note: Not serviced separately

$

$

Not available

21

Exmark 126-2711

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0

22

Exmark 135-7741

XREF 126-4803

$0.99

$

Usually ships in 3-6 days

0

23

Exmark 142-7468

SPACER-BRAKE PIVOT

$2.99

$

Usually ships in 3-6 days

0

24

Exmark 135-6211

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

25

Exmark 142-6701

LINK-BRAKE CONTROL LOCK

$15.99

$

Usually ships in 3-6 days

0

26

Exmark 116-1393

BUSHING,SNAP

$5.49

$

Usually ships in 3-6 days

0

27

Exmark 132-6915

SPRING-EXTENSION

$5.99

$

Usually ships in 3-6 days

0
