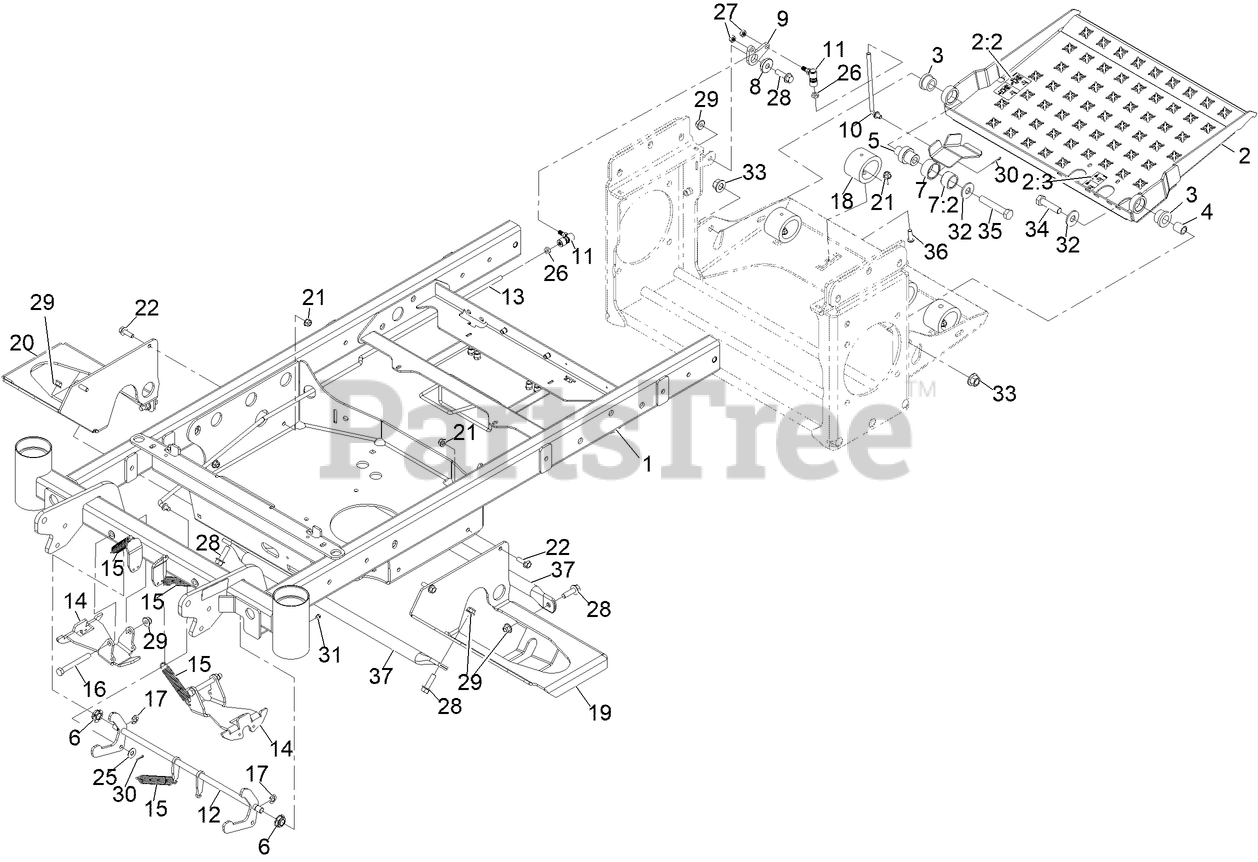

ZSX4640 - Exmark Z-Spray Intermediate Stand-on Sprayer, 5.3 GPM Pump (SN: 413950474 & Above) (Rev C) (2023) Main Frame Assembly Parts Diagram

Z-Spray Intermediate Stand-on Sprayer, 5.3 GPM Pump

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 142-7523

FRAME-MAIN

$3792.99

$

Usually ships in 0 days

0

2

Exmark 142-6877

FOOT PLATE W/DECALS

$551.99

$

Usually ships in 0 days

0

2:2

Exmark 135-6728

Decal-Spray Foot Button

$3.49

$

Usually ships in 3-6 days

0

2:3

Exmark 135-6430

Decal-Lock, Caster

$4.99

$

Usually ships in 3-6 days

0

3

Exmark 142-6033

BUSHING-RUBBER

$1.49

$

Usually ships in 3-6 days

0

4

Exmark 142-6034

SPACER
