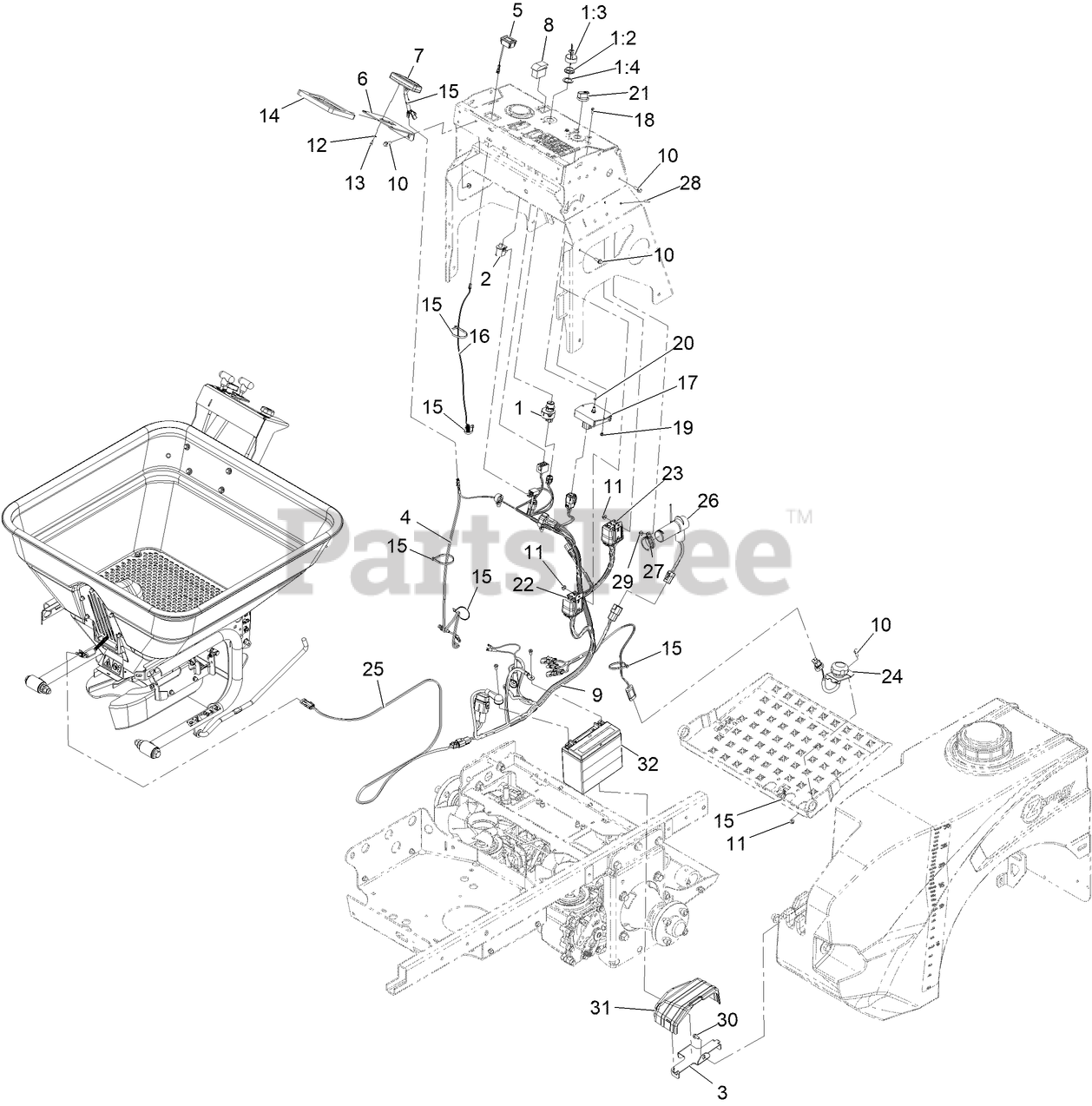

ZSX4640 - Exmark Z-Spray Intermediate Stand-on Sprayer, 5.3 GPM Pump (SN: 413950474 & Above) (Rev C) (2023) Electrical Assembly Parts Diagram

Z-Spray Intermediate Stand-on Sprayer, 5.3 GPM Pump

Electrical Assembly Parts Diagram

  • Title

1

Exmark 126-6285

IGNITION SWITCH ASM

$52.99

$

In Stock, Qty 16

0

1:2

Exmark 108-8660

NUT-MOUNTING

$33.99

$

In Stock, only 3 left!

0

1:3

Exmark 106-5270

IGNITION KEY SET

$21.99

$

In Stock, Qty 18

0

1:4

Exmark 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

2

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 11

0

3

Exmark 142-7882

STRAP-BATTERY

$47.99

$

Usually ships in 3-6 days

0

4

Exmark 135-8898

Cable-Trail Tech, Sensor

$49.99

$

Usually ships in 3-6 days

0

5

Exmark 135-5259

METER-TACH/HOUR

$50.99

$

In Stock, only 1 left!

0

6

Exmark 142-5553-05

MOUNT-DISPLAY

$41.99

$

Usually ships in 3-6 days

0

7

Exmark 135-8900

HEAD ONLY, STRIKER

$191.99

$

In Stock, only 2 left!

0

8

Exmark 100-8469

SWITCH-ROCKER

$26.99

$

In Stock, only 2 left!

0

9

Exmark 142-5493

HARNESS

$1165.99

$

Usually ships in 0 days

0

10

Exmark 135-6221

Screw-HHF

$1.49

$

In Stock, Qty 10

0

11

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

12

Exmark 126-0759

WASHER-FLAT

$1.49

$

In Stock, Qty 7

0

13

Exmark 135-6357

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

14

Exmark 142-6690

PAD-DISPLAY MOUNT

$12.99

$

Usually ships in 3-6 days

0

15

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

16

Exmark 135-6118

WIRE-TACHOMETER

$25.99

$

Usually ships in 3-6 days

0

17

Exmark 142-6905

CONTROLLER-MOTOR, SPREADER

$246.99

$

Usually ships in 3-6 days

0

18

Exmark 112-3169

SCREW-HHF, SERRATED

$0.99

$

Usually ships in 3-6 days

0

19

Exmark 520-0006

NUT-HEX, NYLOCK

$0.99

$

In Stock, only 1 left!

0

20

Exmark 360-0497

O-RING

$0.99

$

Usually ships in 3-6 days

0

21

Exmark 142-7061

KNOB-INDICATING

$17.99

$

Usually ships in 3-6 days

0

22

Exmark 142-8081

DECAL-FUSE,SOLID STATE

$2.99

$

In Stock, only 1 left!

0

23

Exmark 142-8079

DECAL-FUSE,MAIN

$2.99

$

Usually ships in 3-6 days

0

24

SWITCH-FOOT

Note: Not serviced separately

$

$

Not available

25

Exmark 142-7224

HARNESS-SPREADER MOTOR

$43.99

$

Usually ships in 3-6 days

0

26

Exmark 142-9333

HARNESS-CAPACITOR

$137.99

$

Usually ships in 0 days

0

27

Exmark 142-8944

CLAMP-R, CUSHION

$5.99

$

Usually ships in 3-6 days

0

28

Exmark 135-6356

SCREW-HH

$1.49

$

In Stock, Qty 14

0

29

Exmark 135-6342

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

30

Exmark 142-5490

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

31

Exmark 146-0151

COVER-BATTERY

$24.99

$

Usually ships in 0 days

0

32

Exmark 142-7345

BATTERY-AGM

$244.90

$

Usually ships in 4-12 days

0

99

Exmark 135-7317

MANUAL-USER, STRIKER

Note: Not illustrated

$5.99

$

Usually ships in 3-6 days

0

99

Exmark 135-7318

CARD-STRIKER, QUICK START

Note: Not illustrated

$2.99

$

Usually ships in 3-6 days

0
