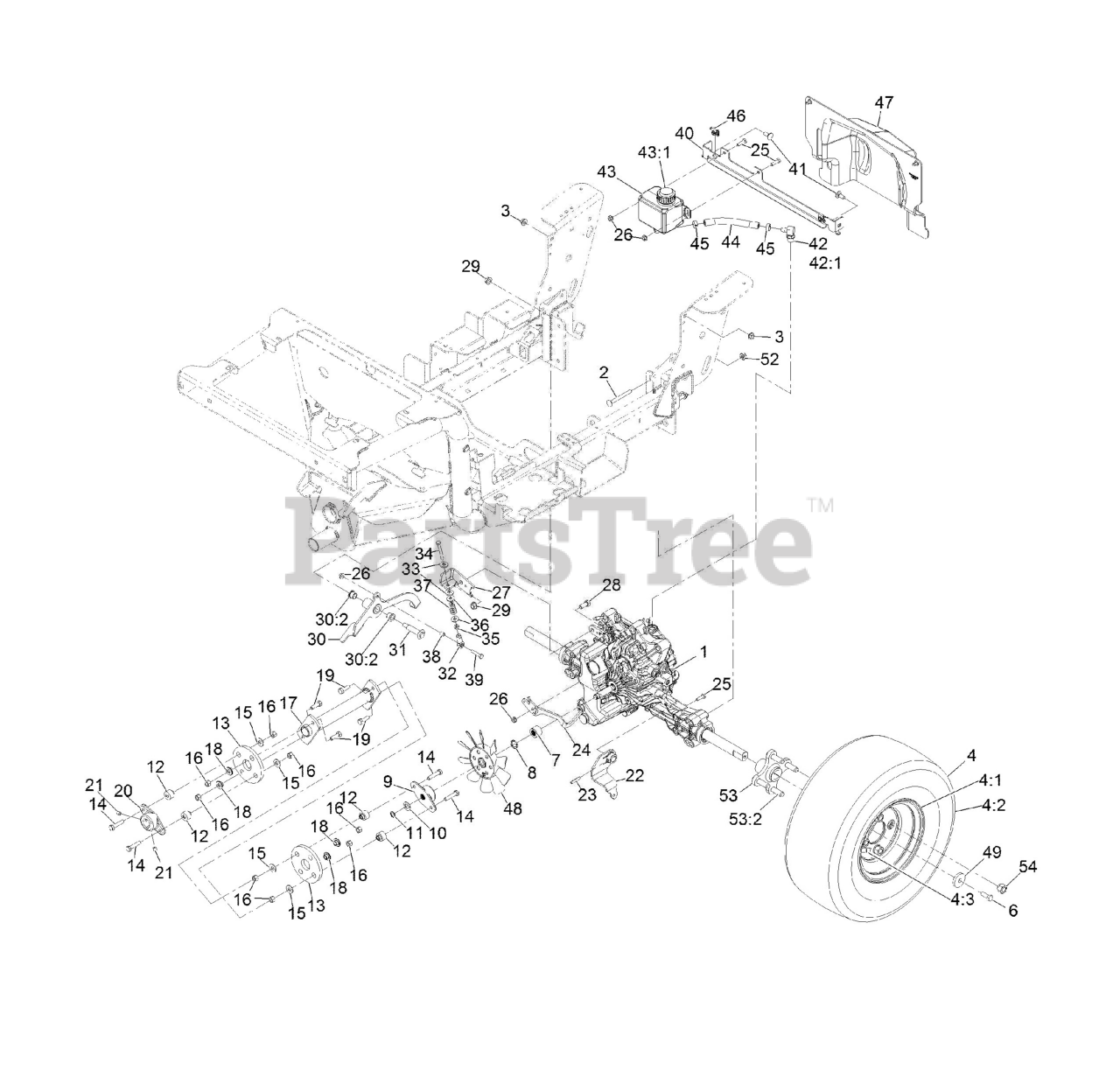

ZSL3620 - Exmark Z-Spray LTS Stand-on Sprayer, 3.8 GPM Pump (SN: 413950474 - 999999999) (Rev A) (2023) Ground Drive Assembly Parts Diagram

Z-Spray LTS Stand-on Sprayer, 3.8 GPM Pump

Ground Drive Assembly Parts Diagram

  • Title

1

Exmark 126-2814

TRANSAXLE

$2128.99

$

Usually ships in 3-6 days

0

1:99

Exmark 126-9688

KIT-SEAL

Note: Not illustrated

$14.99

$

Usually ships in 3-6 days

0

1:99

Exmark 135-3175

KIT-TRANSMISSION SEAL

Note: Not illustrated

$90.99

$

Usually ships in 3-6 days

0

1:99

Exmark 142-4793

PLUG-BORE 20

Note: Not illustrated

$11.99

$

Usually ships in 3-6 days

0

2

Exmark 3230-26

SCREW-CARR

$4.49

$

Usually ships in 3-6 days

0

3

Exmark 135-2881

NUT-HF

$1.99

$

In Stock, only 1 left!

0

4

Exmark 142-2738

Wheel And Tire ASM(18X7.5-8)

$184.99

$

Usually ships in 3-6 days

0

4:1

Exmark 119-8907

TIRE-4 PLY

$176.99

$

Usually ships in 3-6 days

0

4:2

Exmark 142-2739

Wheel, 8 X 5.375

$84.99

$

Usually ships in 3-6 days

0

4:3

Exmark 232-27

Stem-Valve

$

$

Not available

6

Exmark 135-1711

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

7

Exmark 126-2983

SPACER-SHAFT, INPUT

$35.99

$

Usually ships in 3-6 days

0

8

Exmark 3290-317

WASHER-SPRING

$1.99

$

In Stock, only 1 left!

0

9

Exmark 116-9787

HUB-SHAFT, TRANSAXLE

$80.99

$

Usually ships in 3-6 days

0

10

Exmark 605256

SPACER

$2.99

$

In Stock, Qty 20+

0

11

Exmark 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

12

Exmark 27-6590

SPACER-COUPLING, RUBBER

$16.99

$

Usually ships in 3-6 days

0

13

Exmark 115-4523

COUPLING-RUBBER

$56.99

$

In Stock, Qty 20+

0

14

Exmark 3210-8

SCREW-HH

$4.49

$

In Stock, only 3 left!

0

15

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Exmark 32152-5

NUT-HEX

$3.49

$

In Stock, only 2 left!

0

17

Exmark 135-5223-03

Drive Shaft ASM, Welded

$61.99

$

Usually ships in 3-6 days

0

18

Exmark 125-9249

SPACER-COUPLER, RUBBER

$2.99

$

In Stock, only 3 left!

0

19

Exmark 3210-5

SCREW-HH

$3.99

$

In Stock, Qty 6

0

20

Exmark 116-9788

HUB-SHAFT, ENGINE

$92.99

$

Usually ships in 3-6 days

0

21

Exmark 3246-18

SETSCREW

$5.49

$

Usually ships in 3-6 days

0

22

Exmark 126-6243-03

ARM-MOTION

$56.99

$

Usually ships in 3-6 days

0

23

Exmark 126-4295

PIN-SPIRAL

$2.99

$

Usually ships in 3-6 days

0

24

Exmark 126-2811-03

ARM-RELEASE

$21.99

$

Usually ships in 3-6 days

0

25

Exmark 126-0498

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

26

Exmark 135-2880

NUT-HF

$1.49

$

In Stock, only 1 left!

0

27

Exmark 126-3937-03

ARM-BRAKE

$19.99

$

Usually ships in 3-6 days

0

28

Exmark 126-0520

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

29

Exmark 135-2882

NUT-HF

$2.99

$

In Stock, Qty 8

0

30

Exmark 126-0433

BRAKE LEVER ASM

$86.99

$

Usually ships in 3-6 days

0

30:2

Exmark 116-4279

BEARING-FLANGE

$5.49

$

In Stock, Qty 5

0

31

Exmark 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 9

0

32

Exmark 2411-41

ROD END-BALL JOINT

$42.99

$

Usually ships in 3-6 days

0

33

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

34

Exmark 126-4009

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

36

Exmark 3256-78

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

37

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

38

Exmark 612503

SPACER

$5.49

$

Usually ships in 3-6 days

0

39

Exmark 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

40

Exmark 126-4423-03

BRACKET-MOUNT, TANK

$30.99

$

Usually ships in 3-6 days

0

41

Exmark 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

42

Exmark 126-2927

FITTING-90 DEG

$26.99

$

Usually ships in 3-6 days

0

42:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

43

Exmark 126-2578

TANK ASM

$93.99

$

Usually ships in 3-6 days

0

43:1

Exmark 126-2579

CAP-TANK

$12.99

$

Usually ships in 3-6 days

0

44

Exmark 126-2842

HOSE-EXPANSION

$5.49

$

Usually ships in 3-6 days

0

45

Exmark 126-3749

CLAMP

$1.49

$

Usually ships in 3-6 days

0

46

Exmark 119-1730

RECEPTACLE-CLIP, MINI

$2.49

$

Usually ships in 3-6 days

0

47

Exmark 126-1462

TRANSAXLE COVER ASM

$198.99

$

Usually ships in 3-6 days

0

48

Exmark 126-2980

FAN-7 INCH

$21.99

$

Usually ships in 3-6 days

0

49

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 6

0

52

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

53

Exmark 126-9884

WHEEL HUB ASM

$52.99

$

Usually ships in 3-6 days

0

53:2

Exmark 10-6830

STUD-TYPE, DRIVE

$5.49

$

In Stock, Qty 5

0

54

Exmark 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0
