ZSL3620 - Exmark Z-Spray LTS Stand-on Sprayer, 3.8 GPM Pump (SN: 413950474 - 999999999) (Rev A) (2023) Engine Assembly Parts Diagram

Z-Spray LTS Stand-on Sprayer, 3.8 GPM Pump

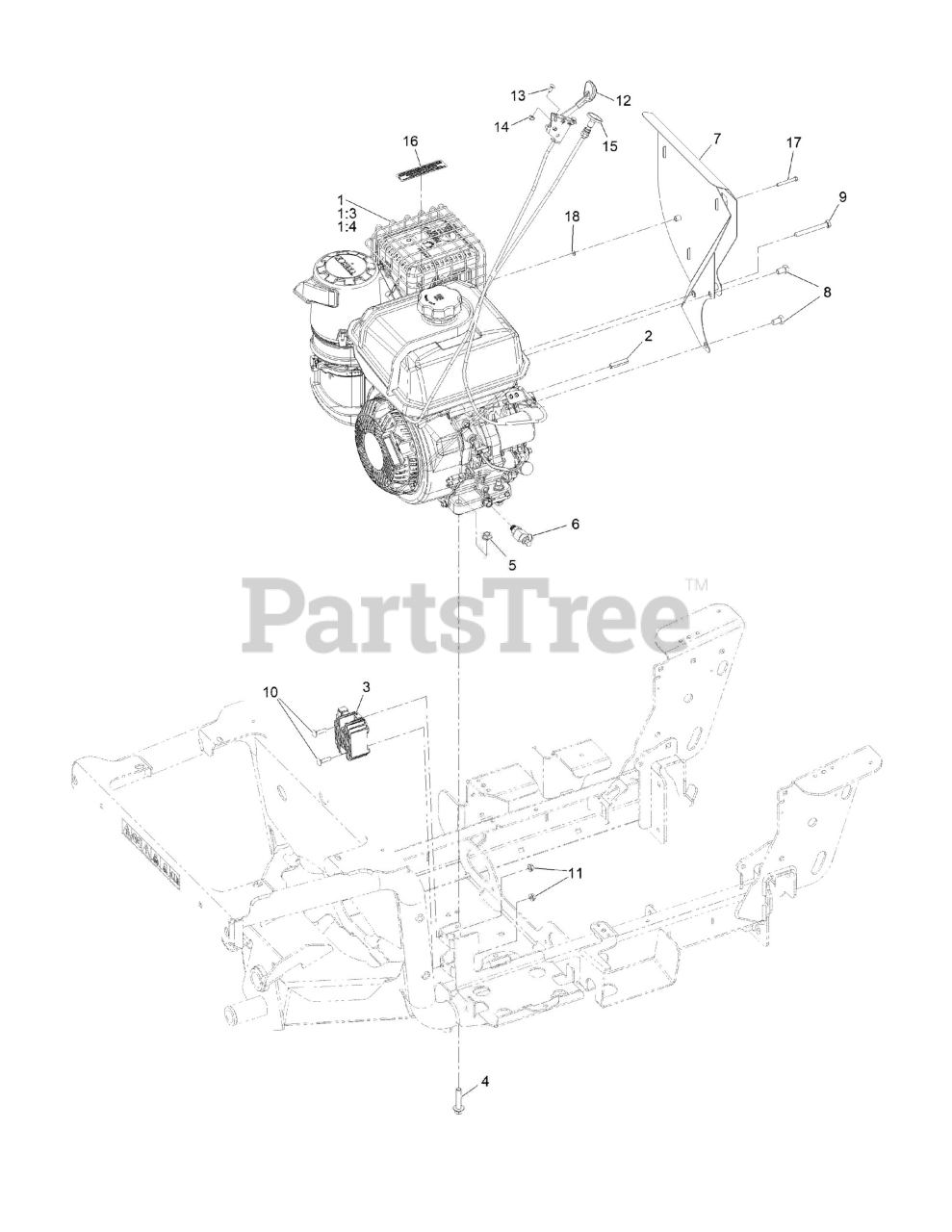

Engine Assembly Parts Diagram

  • Title

1

Exmark 126-1359

Engine-Kohler, Ch395

$1414.99

$

Usually ships in 3-6 days

0

1:3

Exmark 142-9962

Cage-Ch395 17_314_197 Bird

$

$

Currently unavailable

1:4

Exmark 138-3103

Deflector-Exhaust, Kohler

$33.99

$

Usually ships in 0 days

0

2

Exmark 135-3980

KEY-SQUARE, 7MM

$5.49

$

Usually ships in 3-6 days

0

3

Exmark 135-7026

REGULATOR-TROMBETTA, 18A

$119.99

$

In Stock, only 1 left!

0

4

Exmark 126-2710

SCREW-HHF

$12.99

$

Usually ships in 3-6 days

0

5

Exmark 135-2882

NUT-HF

$2.99

$

In Stock, Qty 20+

0

6

Exmark 126-9978

Valve-Drain, Oil

$46.99

$

Usually ships in 3-6 days

0

7

Exmark 126-2225

HEAT SHIELD ASM

$232.99

$

Usually ships in 3-6 days

0

8

Exmark 115-8486

Screw-HH

$3.49

$

In Stock, Qty 6

0

9

Exmark 120-1177

Screw-HH

$3.49

$

Usually ships in 3-6 days

0

10

Exmark 126-1455

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 135-2880

NUT-HF

$1.49

$

In Stock, only 1 left!

0

12

Exmark 135-3149

Control-Throttle

$43.99

$

In Stock, only 2 left!

0

13

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

14

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Exmark 135-3150

Cable-Choke, Push/Pull

$35.99

$

Usually ships in 3-6 days

0

16

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 135-4328

BOLT-M5X0.8MM X 40 MM LON

$1.99

$

Usually ships in 3-6 days

0

18

Exmark 126-0759

WASHER-FLAT

$1.49

$

In Stock, Qty 7

0
