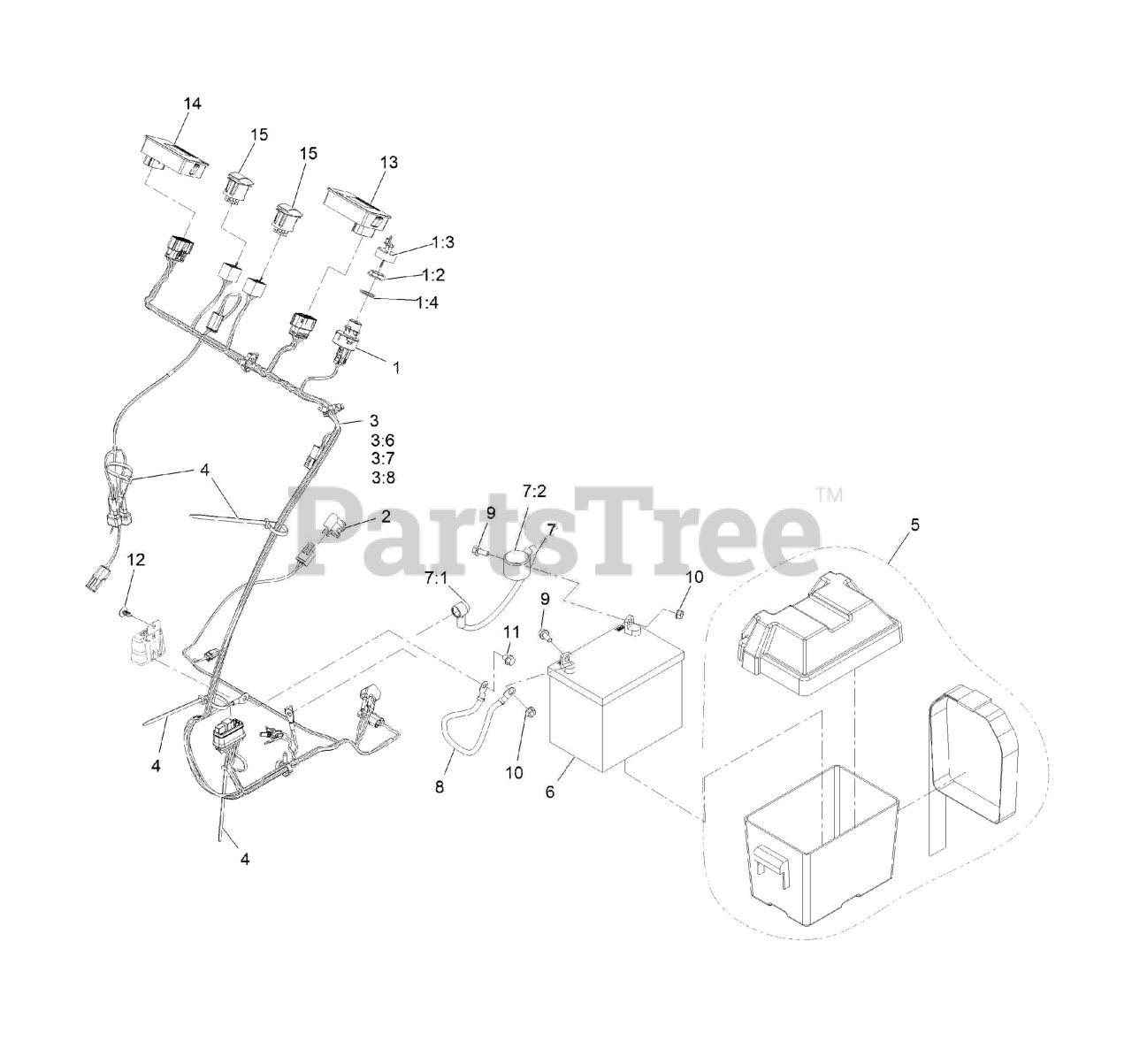

ZSL3620 - Exmark Z-Spray LTS Stand-on Sprayer, 3.8 GPM Pump (SN: 413950474 - 999999999) (Rev A) (2023) Electrical Assembly Parts Diagram

Z-Spray LTS Stand-on Sprayer, 3.8 GPM Pump

Electrical Assembly Parts Diagram

  • Title

1

Exmark 126-6285

IGNITION SWITCH ASM

$54.99

$

In Stock, Qty 20+

0

1:2

Exmark 108-8660

NUT-MOUNTING

$35.99

$

In Stock, only 3 left!

0

1:3

Exmark 106-5270

IGNITION KEY SET

$22.99

$

In Stock, Qty 18

0

1:4

Exmark 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

2

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

3

Exmark 135-6127

Harness-Wire

$515.99

$

Usually ships in 3-6 days

0

3:6

Exmark 121-8868

FUSE-MINI BLADE, 20 AMP

$5.99

$

Usually ships in 3-6 days

0

3:7

Exmark 126-3991

RELAY-MICRO

$41.99

$

In Stock, Qty 15

0

3:8

Exmark 135-5221

Relay-Coil, NC, Mp280

$85.99

$

In Stock, only 1 left!

0

4

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

5

Exmark 126-1424

BATTERY BOX

$49.99

$

Usually ships in 3-6 days

0

6

Battery

Note: Not serviced separately

$

$

Not available

7

Exmark 135-4669

Positive Battery Cable ASM

$13.99

$

Usually ships in 3-6 days

0

7:1

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

7:2

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 3 left!

0

8

Exmark 114-9715

CABLE-BATTERY, NEGATIVE

$25.99

$

Usually ships in 3-6 days

0

9

Exmark 126-2712

SCREW-HHF

$5.49

$

In Stock, Qty 8

0

10

Exmark 135-2881

NUT-HF

$1.99

$

In Stock, only 1 left!

0

11

Exmark 68-9410

Screw-HHF

$9.49

$

Usually ships in 3-6 days

0

12

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

13

Exmark 135-6674

Hour Meter ASM

$

$

Not available

14

Exmark 135-6675

DISCONTINUED

$

$

Not available

15

Exmark 100-1535

SWITCH

$90.99

$

In Stock, only 3 left!

0
