ZSL3620 - Exmark Z-Spray LTS Stand-on Sprayer, 3.8 GPM Pump (SN: 408644346 - 411294211) (Rev A) (2021) Steering Assembly Parts Diagram

Z-Spray LTS Stand-on Sprayer, 3.8 GPM Pump

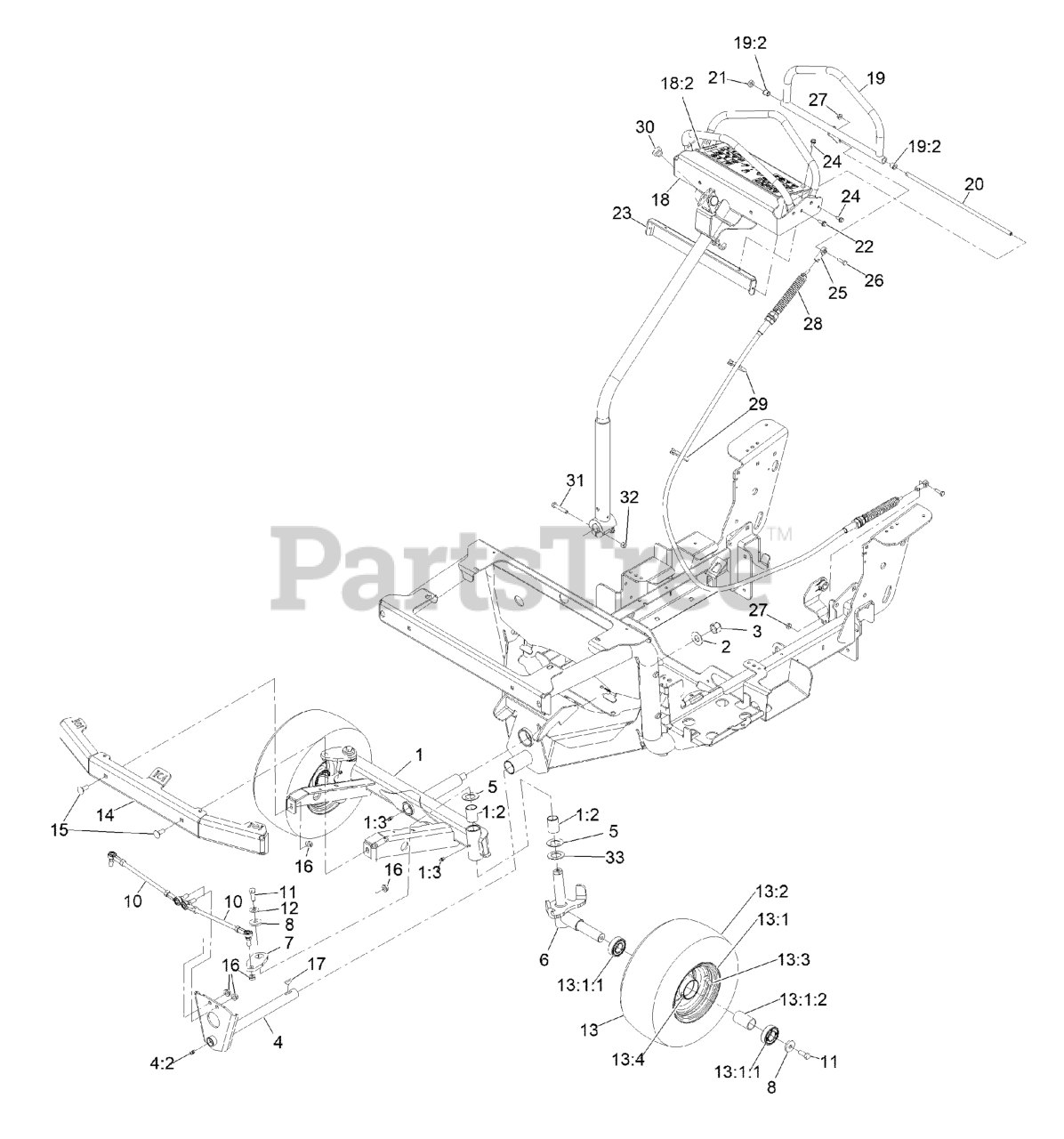

Steering Assembly Parts Diagram

  • Title

1

Exmark 126-7045

FRONT AXLE ASM

$973.99

$

Usually ships in 3-6 days

0

1:2

Exmark 126-7048

BEARING-SLEEVE

$12.99

$

In Stock, Qty 5

0

1:3

Exmark 126-1375

ZERK-GREASE

$5.49

$

In Stock, Qty 10

0

2

Exmark 126-0656

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

3

Exmark 126-3841

NUT-HEX, NI

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 135-3156

STEERING SHAFT ASM

$222.99

$

Usually ships in 3-6 days

0

4:2

Exmark 126-1375

ZERK-GREASE

$5.49

$

In Stock, Qty 10

0

5

Exmark 126-7044

WASHER-THRUST

$7.99

$

In Stock, Qty 5

0

6

Exmark 126-6733

FRONT AXLE ASM

$311.99

$

In Stock, only 2 left!

0

7

Exmark 126-7069

ARM-STEERING

$44.99

$

In Stock, only 2 left!

0

8

Exmark 126-3875

WASHER

$5.49

$

Usually ships in 3-6 days

0

10

Exmark 126-7185

STEERING LINKAGE ASM

$183.99

$

In Stock, Qty 7

0

11

Exmark 135-1711

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

12

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

13

Exmark 142-2736

Wheel And Tire ASM

$164.99

$

Usually ships in 3-6 days

0

13:1

Wheel ASM

Note: Not serviced separately

$

$

Not available

13:1:1

Exmark 116-0720

BEARING-BALL

$22.99

$

Usually ships in 3-6 days

0

13:1:2

Exmark 126-7260

SPACER

$6.49

$

Usually ships in 3-6 days

0

13:2

Exmark 126-1509

TIRE

$85.99

$

In Stock, only 2 left!

0

13:3

Exmark 232-27

Stem-Valve

$

$

Not available

13:4

Exmark 302-62

FITTING-GREASE

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 116-9789

BUMPER-FRONT

$285.99

$

Usually ships in 3-6 days

0

15

Exmark 126-0980

SCREW-CARR

$1.99

$

In Stock, only 1 left!

0

16

Exmark 135-2882

NUT-HF

$2.99

$

In Stock, Qty 8

0

17

Exmark 3257-7

KEY-WOODRUFF

$9.49

$

In Stock, only 3 left!

0

18

Exmark 135-3155

Motion Handle ASM

$802.99

$

Usually ships in 3-6 days

0

18:2

Exmark 135-2844

DECAL-WARNING

$21.99

$

Usually ships in 3-6 days

0

19

Exmark 142-2735

Motion Handle ASM

$106.99

$

Usually ships in 3-6 days

0

19:2

Exmark 103-9928

BEARING

$7.99

$

In Stock, Qty 11

0

20

Exmark 126-0496

SHAFT-PIVOT, SPEED CONTRO

$47.99

$

Usually ships in 3-6 days

0

21

Exmark 116-4198

SPACER-SHAFT, DRIVE LEVER

$6.49

$

Usually ships in 3-6 days

0

22

Exmark 117-8304

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

23

Exmark 126-1604-03

PANEL-REAR, STEERING

$36.99

$

Usually ships in 3-6 days

0

24

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

25

Exmark 2411-41

ROD END-BALL JOINT

$41.99

$

Usually ships in 3-6 days

0

26

Exmark 126-0498

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

27

Exmark 135-2880

NUT-HF

$1.49

$

In Stock, only 1 left!

0

28

Exmark 126-2169

CABLE-MOTION

$205.99

$

Usually ships in 3-6 days

0

29

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

30

Exmark 104-1412

BUMPER-RUBBER

$18.99

$

In Stock, only 3 left!

0

31

Exmark 3210-9

Screw-HH

$4.49

$

Usually ships in 3-6 days

0

32

Exmark 32152-5

NUT-HEX

$3.49

$

In Stock, only 2 left!

0

33

Exmark 126-7050

SPACER-RELIEF

$5.49

$

In Stock, Qty 5

0
