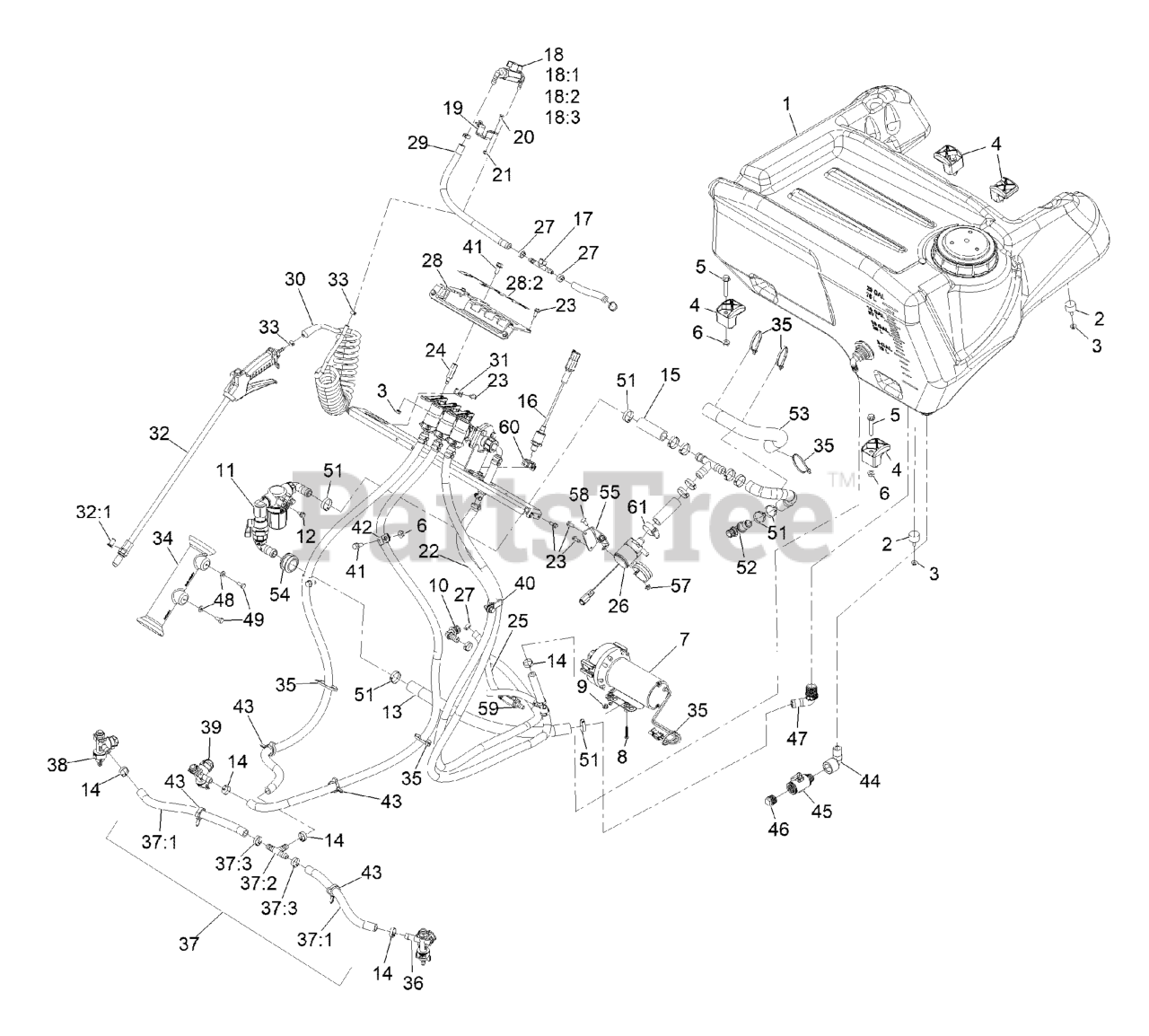

ZSL3620 - Exmark Z-Spray LTS Stand-on Sprayer, 3.8 GPM Pump (SN: 408644346 - 411294211) (Rev A) (2021) Spray System Assembly Parts Diagram

Z-Spray LTS Stand-on Sprayer, 3.8 GPM Pump

Spray System Assembly Parts Diagram

  • Title

1

Exmark 142-2730

Tank-Sprayer

$598.99

$

Usually ships in 3-6 days

0

2

Exmark 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

3

Exmark 135-2880

NUT-HF

$1.49

$

In Stock, only 1 left!

0

4

Exmark 107-4543

CLAMP

$14.99

$

Usually ships in 3-6 days

0

5

Exmark 126-2711

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0

6

Exmark 135-2881

NUT-HF

$1.99

$

In Stock, only 1 left!

0

7

Exmark 142-2301

Pump-Diaphragm, 3.8 GPM

$503.99

$

Usually ships in 3-6 days

0

8

Exmark 692501

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

9

Exmark 126-2645

NUT-HF

$1.99

$

Usually ships in 3-6 days

0

10

Exmark 126-0961

FITTING-ELBOW, BARBED

$10.99

$

In Stock, only 3 left!

0

11

Exmark 126-4358

STRAINER ASM

$159.99

$

In Stock, only 4 left!

0

12

Exmark 126-2713

SCREW-HHF

$5.49

$

In Stock, only 3 left!

0

13

Exmark 126-4422

HOSE-WATER

$18.99

$

Usually ships in 3-6 days

0

14

Exmark 142-3662

CLAMP OETIKER 0.716"" CLOSED 0.826"" OPEN

$1.99

$

Usually ships in 3-6 days

0

15

Exmark 142-2192

ASM-, 3/4 Pvc Reinforced Water Hose

$41.99

$

Usually ships in 3-6 days

0

16

Exmark 142-4495

TRANSDUCER-PRESSURE

$402.99

$

Usually ships in 3-6 days

0

17

Exmark 126-2348

FITTING-TEE

$17.99

$

Usually ships in 3-6 days

0

18

Wand Control ASM

Note: Not serviced separately

$

$

Not available

18:1

Exmark 126-0242

VALVE-BALL

$55.99

$

In Stock, Qty 8

0

18:2

Exmark 126-4992

FITTING-ELBOW-90
(Superseded to 135-8341)

$1.99

$

In Stock, Qty 20+

0

18:3

Exmark 126-4993

FITTING-ELBOW-90

$5.49

$

In Stock, Qty 19

0

19

Exmark 126-0239-03

BRACKET-VALVE

$19.99

$

In Stock, only 1 left!

0

20

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

21

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Manifold-Valve, Control ASM

Note: Not serviced separately

$

$

Not available

23

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

24

Exmark 135-6461

Spacer, Manifold Mount

$19.99

$

Usually ships in 3-6 days

0

25

Exmark 142-2213

Hose-Water

$4.49

$

Usually ships in 3-6 days

0

26

Exmark 135-7843

Pump-Centrifugal

$197.99

$

In Stock, only 1 left!

0

27

Exmark 126-3749

CLAMP

$1.49

$

Usually ships in 3-6 days

0

28

Exmark 126-4180

COVER-CONTROLS

$128.99

$

Usually ships in 3-6 days

0

28:2

Exmark 135-7256

Decal-Lever Control

$10.99

$

Usually ships in 3-6 days

0

29

Exmark 126-5847

HOSE-WATER, 3/8 PVC RED

$7.99

$

Usually ships in 3-6 days

0

30

Exmark 142-5821

Hose-Coiled, 04X15Ft

$39.99

$

In Stock, only 1 left!

0

31

Exmark 2412-89

CLAMP-R

$2.99

$

Usually ships in 3-6 days

0

32

Exmark 126-8000

SPRAY WAND ASM

$139.99

$

In Stock, only 3 left!

0

32:1

Exmark 126-3943

STRAINER-NOZZLE, 50M 5PSI

$21.99

$

In Stock, Qty 20+

0

33

Exmark 126-2707

CLAMP

$1.49

$

In Stock, Qty 19

0

34

Exmark 126-3987

HOLDER-WAND

$76.99

$

In Stock, only 1 left!

0

35

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

36

Exmark 126-3667

LEFT NOZZLE SUB ASM

$82.99

$

Usually ships in 3-6 days

0

37

Exmark 126-2252

HOSE ASM

$26.99

$

Usually ships in 3-6 days

0

37:1

Exmark 126-2264

HOSE-WATER

$9.49

$

In Stock, only 1 left!

0

37:2

Exmark 126-0968

FITTING-TEE

$5.49

$

Usually ships in 3-6 days

0

37:3

Exmark 142-3662

CLAMP OETIKER 0.716"" CLOSED 0.826"" OPEN

$1.99

$

Usually ships in 3-6 days

0

38

Exmark 126-3669

RIGHT NOZZLE SUB ASM

$82.99

$

In Stock, only 1 left!

0

39

Exmark 126-3668

CENTER NOZZLE SUB ASM

$82.99

$

Usually ships in 3-6 days

0

40

Exmark 120-1959

CLAMP

$3.49

$

Usually ships in 3-6 days

0

41

Exmark 126-2712

SCREW-HHF

$5.49

$

In Stock, Qty 8

0

42

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

43

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

44

Exmark 108-3573

ELBOW-90 DEG

$16.99

$

Usually ships in 3-6 days

0

45

Exmark 126-1494

MICROVALVE

$55.99

$

Usually ships in 3-6 days

0

46

Exmark 363-3125

PLUG

$2.99

$

Usually ships in 3-6 days

0

47

Exmark 119-0490

ELBOW-HOSEBARB

$5.49

$

In Stock, only 2 left!

0

48

Exmark 360-0140

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

49

Exmark 126-1290

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

51

Exmark 126-4779

CLAMP

$2.99

$

Usually ships in 3-6 days

0

52

Exmark 126-4420

FITTING-ELBOW

$15.99

$

In Stock, Qty 10

0

53

Exmark 126-5065

SLEEVE-CORRUGATED, SPLIT

$14.99

$

Usually ships in 3-6 days

0

54

Exmark 126-7410

GROMMET

$7.49

$

Usually ships in 3-6 days

0

55

Exmark 135-7913-03

Brkt-Recir Pump

$11.99

$

Usually ships in 3-6 days

0

57

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

58

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

59

Exmark 142-2180

Valve-3/8 Check

$79.99

$

Usually ships in 3-6 days

0

60

Exmark 132-7590

R-Clamp

$3.49

$

Usually ships in 3-6 days

0

61

Exmark 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0
