ZS5260XL - Exmark Z-Spray Z-Max Stand-on Sprayer, 7 GPM Pump (SN: 406294345 - 408644345) (Rev A) (2020) Park Brake Assembly Parts Diagram

Z-Spray Z-Max Stand-on Sprayer, 7 GPM Pump

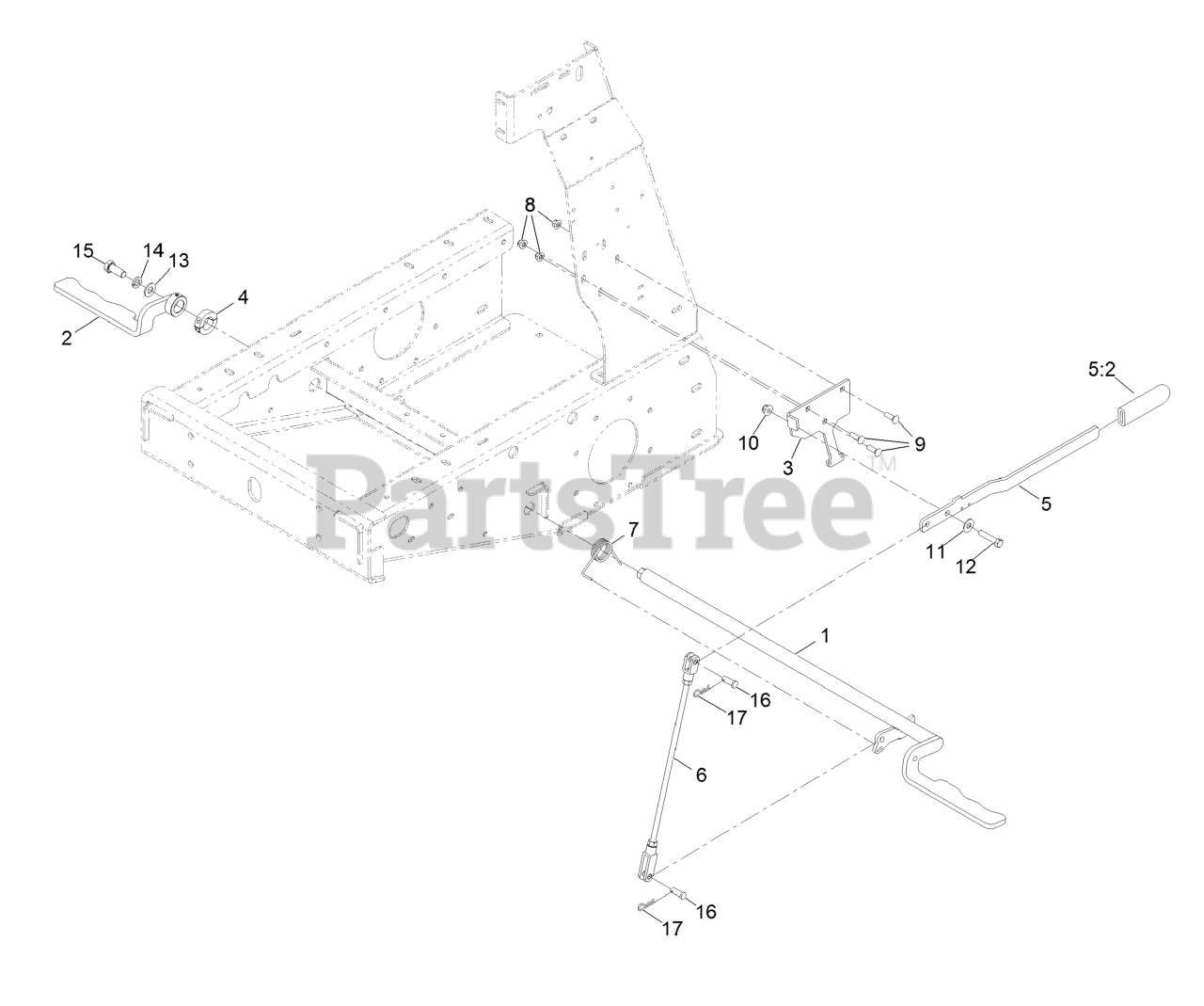

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 135-5380-03

Arm-Brake, Lt [black]

$82.99

$

In Stock, only 3 left!

0

2

Exmark 135-5376-03

Arm-Brake, Rt [black]

$44.99

$

In Stock, Qty 5

0

3

Exmark 135-5432

BRACKET-HANDLE, BRAKE

$35.99

$

Usually ships in 3-6 days

0

4

Exmark 116-7271

COLLAR-LOCKING

$21.99

$

In Stock, only 1 left!

0

5

Exmark 135-6059

ASM, Handle-Brake

$57.99

$

Usually ships in 3-6 days

0

5:2

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

6

Exmark 135-6066

ASM, Rod-Brake

$49.99

$

In Stock, only 1 left!

0

7

Exmark 135-6106

SPRING-TORSION

$6.49

$

In Stock, only 3 left!

0

8

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 5

0

9

Exmark HDW17294

Bolt,Carriage,5/16-18X1,ST/ST 18-8

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 1126

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

12

Exmark 323-52

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

13

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

15

Exmark 106-0378

Screw ( .50-20Unfx1.25 Grade 8]

$4.99

$

In Stock, Qty 5

0

16

Exmark 1-808284

PIN-CLEVIS

$3.49

$

In Stock, only 4 left!

0

17

Exmark 135-6284

Pin-Hair

$0.99

$

In Stock, Qty 6

0
