ZS5260XL - Exmark Z-Spray Z-Max Stand-on Sprayer, 7 GPM Pump (SN: 404314159 - 406294344) (2019) Spray System Assembly Parts Diagram

Z-Spray Z-Max Stand-on Sprayer, 7 GPM Pump

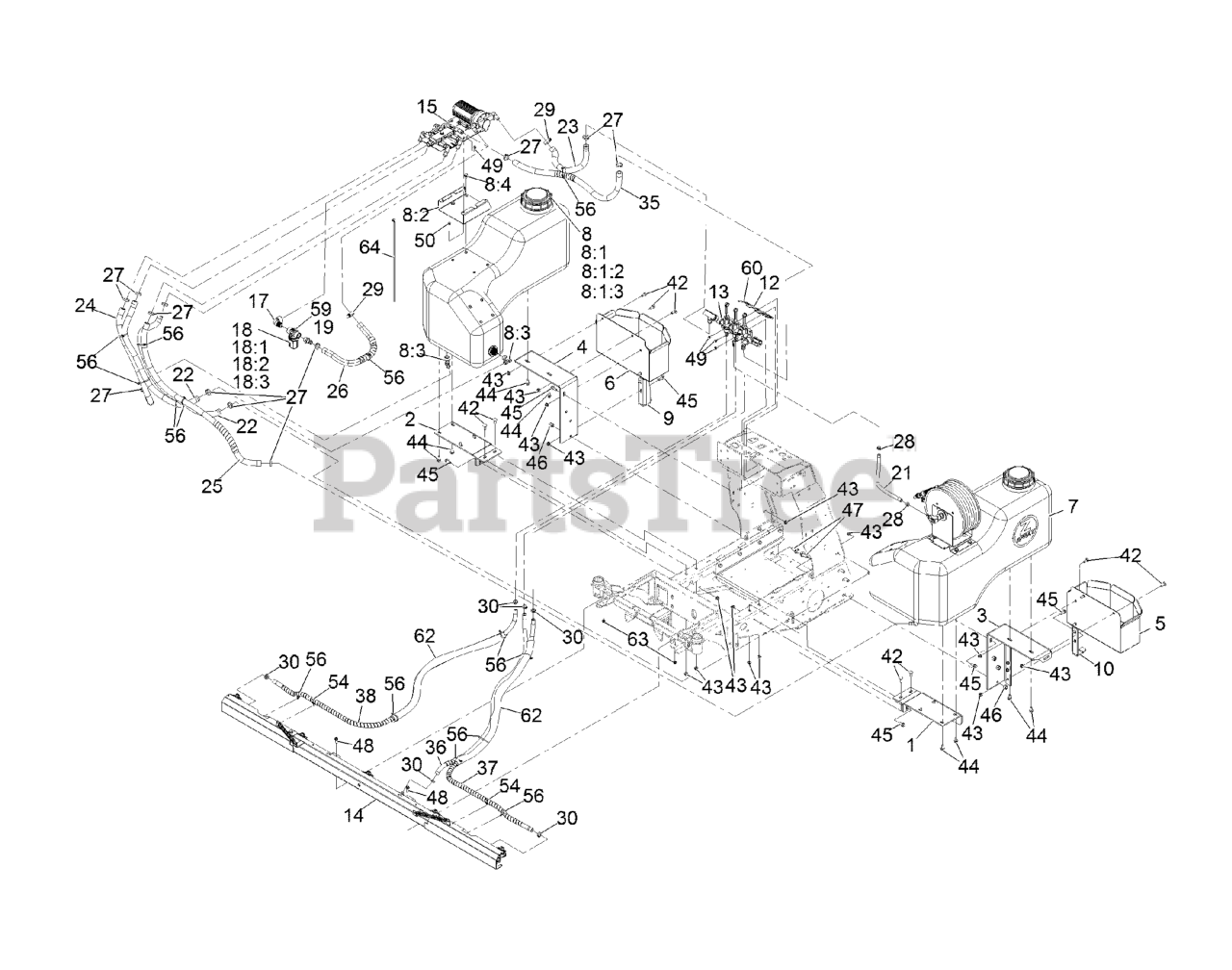

Spray System Assembly Parts Diagram

  • Title
1

Exmark 135-5495

Mount-Tank, LH Wing

$155.99

$

In Stock, only 2 left!

0

2

Exmark 135-5496

Mount-Tank, RH Wing

$155.99

$

Usually ships in 3-6 days

0

3

Exmark 135-5395

Mount-Box, Lt Fert

$234.99

$

Usually ships in 3-6 days

0

4

Exmark 135-5397

Mount-Box, Rt Fert

$234.99

$

Usually ships in 3-6 days

0

5

Exmark 135-5399

Box-Fert, Lt

$273.99

$

Usually ships in 3-6 days

0

6

Exmark 135-5402

Box-Fert, Rt

$273.99

$

Usually ships in 3-6 days

0

7

ASM-Tank, Hose Reel

Note: Not serviced separately

$

$

Not available

8

ASM-Tank, Rt

Note: Not serviced separately

$

$

Not available

8:1

Exmark 135-5918

ASM-Tank, Rt
(Superseded to 142-3057)

$595.99

$

Usually ships in 3-6 days

0

8:1:2

Exmark 135-5916

CAP-TANK, SPRAY

$10.99

$

In Stock, only 4 left!

0

8:1:3

Exmark 126-4393

FITTING-BULKHEAD

$17.99

$

In Stock, only 3 left!

0

8:2

Exmark 135-5546

PLATFORM, LIQUID VALVE MO

$26.99

$

Usually ships in 3-6 days

0

8:3

Exmark 135-5772

FITTING-ELBOW, 90

$1.99

$

In Stock, Qty 5

0

8:4

Exmark 135-7096

Screw-HHF

$3.99

$

Usually ships in 3-6 days

0

9

Exmark 135-5408

Bracket-Anti-Tip, Rt

$41.99

$

Usually ships in 3-6 days

0

10

Exmark 135-5406

Bracket-Anti-Tip, Lt

$41.99

$

Usually ships in 3-6 days

0

12

Exmark 135-5570

BRACKET-MANIFOLD
(Superseded to 135-5570-05)

$16.99

$

Usually ships in 3-6 days

0

13

ASM-Manifold

Note: Not serviced separately

$

$

Not available

14

ASM-Boom

Note: Not serviced separately

$

$

Not available

15

ASM, Liquid Valve

Note: Not serviced separately

$

$

Not available

17

Exmark 132-7706

ELBOW-90DEG

$11.99

$

Usually ships in 3-6 days

0

18

Exmark 135-5765

STRAINER-INLINE

$28.99

$

In Stock, only 2 left!

0

18:1

Exmark 126-7195

BOWL-STRAINER

$27.99

$

In Stock, only 1 left!

0

18:2

Exmark 126-2272

GASKET-HEAD, LINE STRAINE

$9.99

$

In Stock, Qty 7

0

18:3

Exmark 135-5766

Screen-Strainer, 50 Mesh

$19.99

$

In Stock, Qty 6

0

19

Exmark 41257

HOSEBARB

$2.99

$

Usually ships in 3-6 days

0

21

Exmark 135-5321

Hose-Spray

$12.99

$

Usually ships in 3-6 days

0

22

Exmark 135-6163

Hose-Spray

$17.99

$

Usually ships in 3-6 days

0

23

Exmark 135-5324

Hose-Spray

$13.99

$

In Stock, only 2 left!

0

24

Exmark 135-5326

Hose-Spray

$15.99

$

Usually ships in 3-6 days

0

25

Exmark 135-5327

Hose-Spray, Wrapped

$38.99

$

Usually ships in 3-6 days

0

26

Exmark 135-5325

Hose-Spray, Wrapped

$16.99

$

Usually ships in 3-6 days

0

27

Exmark 135-5890

Clamp-Oetiker, 167

$3.49

$

In Stock, Qty 5

0

28

Exmark 135-5757

CLAMP-OETIKER, 167

$1.99

$

Usually ships in 3-6 days

0

29

Exmark 2412-129

CLAMP-HOSE

$4.99

$

In Stock, Qty 7

0

30

Exmark 135-5692

CLAMP-OETIKER, 167

$1.99

$

In Stock, Qty 15

0

35

Exmark 135-6480

Hose-Spray, Wrapped

$28.99

$

In Stock, only 1 left!

0

36

Exmark 135-5294

HOSE-SPRAY, WRAPPED

$23.99

$

Usually ships in 3-6 days

0

37

Exmark 135-5295

HOSE-SPRAY, WRAPPED

$19.99

$

Usually ships in 3-6 days

0

38

Exmark 135-5296

HOSE-SPRAY, WRAPPED

$22.99

$

Usually ships in 3-6 days

0

42

Exmark 126-0980

SCREW-CARR

$1.99

$

In Stock, only 1 left!

0

43

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 5

0

44

Exmark 135-6274

SCREW-HHF

$1.99

$

In Stock, only 2 left!

0

45

Exmark 135-6208

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

46

Exmark HDW14426

Nut,1/2-13,NYL INS,ST/ST,18-8

$1.49

$

Usually ships in 3-6 days

0

47

Exmark 135-6207

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

48

Exmark 135-6272

SCREW-HHF

$3.49

$

In Stock, Qty 10

0

49

Exmark 135-6221

Screw-HHF

$1.99

$

In Stock, Qty 10

0

50

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

54

Exmark 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

56

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

59

Exmark 135-6424

DECAL-CAP, STRAINER

$1.99

$

Usually ships in 3-6 days

0

60

Exmark 135-6285

Decal-Valve, Boom

$4.99

$

Usually ships in 3-6 days

0

62

Exmark 135-6484

Guard-Mesh

$19.99

$

In Stock, only 3 left!

0

63

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 5

0

64

Exmark 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0
