ZS5260XL - Exmark Z-Spray Z-Max Stand-on Sprayer, 7 GPM Pump (SN: 404314159 - 406294344) (2019) Liquid Valve Assembly Parts Diagram

Z-Spray Z-Max Stand-on Sprayer, 7 GPM Pump

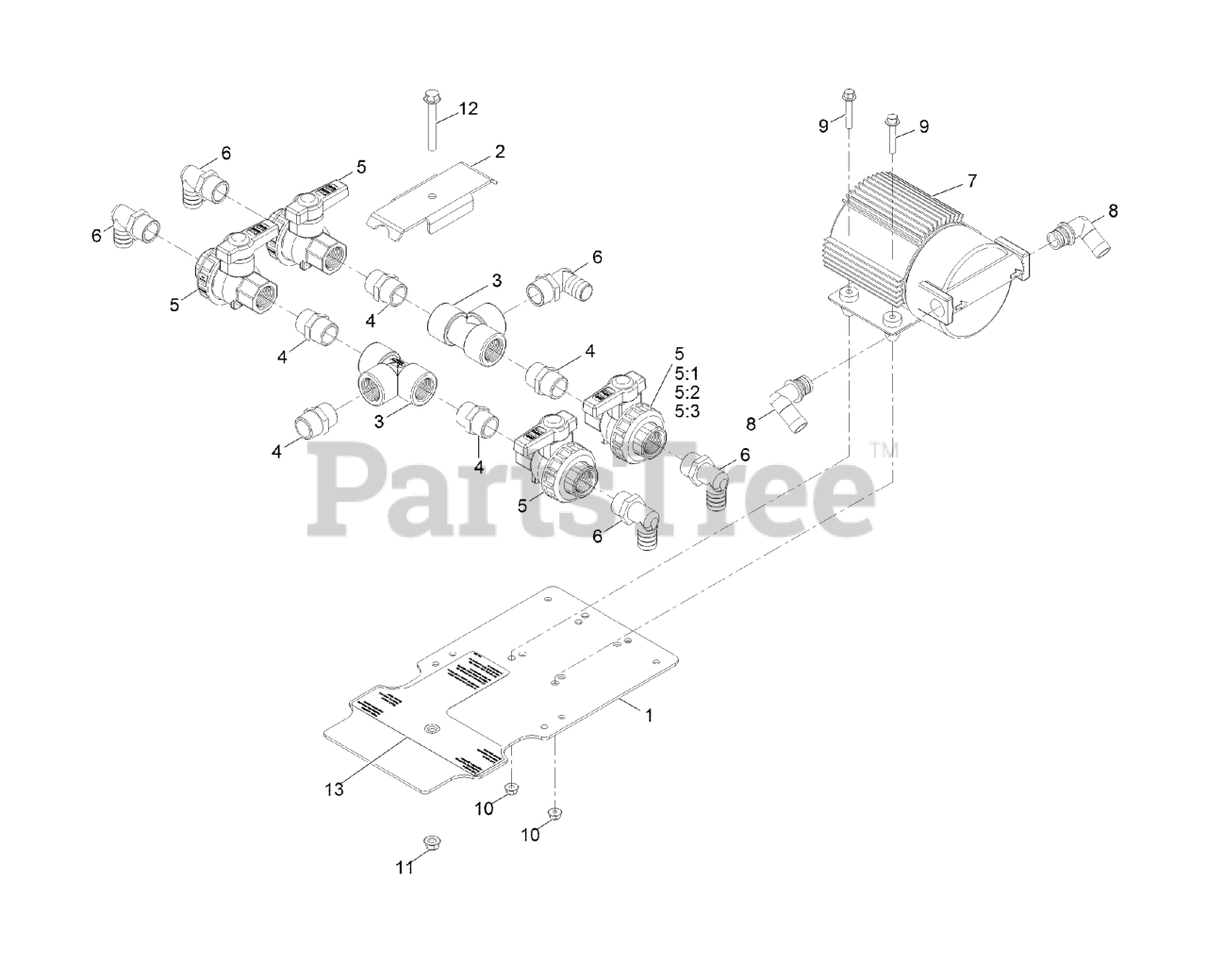

Liquid Valve Assembly Parts Diagram

  • Title

1

Exmark 135-5491

MOUNT-PLATE, LIQUID VALVE

$31.99

$

Usually ships in 3-6 days

0

2

Exmark 135-5504

PLATE-CLAMP, LIQUID VALVE

$7.99

$

Usually ships in 3-6 days

0

3

Exmark 135-6004

FITTING-TEE

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 135-5741

FITTING-NIPPLE

$1.49

$

In Stock, Qty 5

0

5

Exmark 135-6002

VALVE-UNION, 3/4

$30.99

$

In Stock, only 3 left!

0

5:1

Exmark 135-6006

O-Ring
(Superseded to 135-6002)

$30.99

$

In Stock, only 3 left!

0

5:2

Exmark 135-6007

Ring-Valve, Union 3/4
(Superseded to 135-6002)

$30.99

$

In Stock, only 3 left!

0

5:3

Exmark 135-6008

Adapter-Uv, 3/4

$13.99

$

Usually ships in 3-6 days

0

6

Exmark 135-5772

FITTING-ELBOW, 90

$1.99

$

In Stock, Qty 5

0

7

Exmark 135-6001

PUMP-7.0 GPM
(Superseded to 135-8324)

$683.99

$

Usually ships in 3-6 days

0

8

Exmark 135-6003

FITTING-ELBOW, 3/4QD X 3/
(Superseded to 126-4420)

$15.99

$

In Stock, Qty 8

0

9

Exmark 135-6320

Screw-HHF

$1.99

$

In Stock, only 2 left!

0

10

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

11

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 5

0

12

Exmark 135-6323

Screw-HHF

$3.49

$

Usually ships in 3-6 days

0

13

Exmark 135-6420

DECAL-VALVE, TANK

$12.99

$

Usually ships in 3-6 days

0
