ZS5260XL - Exmark Z-Spray Z-Max Stand-on Sprayer, 7 GPM Pump (SN: 404314159 - 406294344) (2019) Hydraulic Assembly Parts Diagram

Z-Spray Z-Max Stand-on Sprayer, 7 GPM Pump

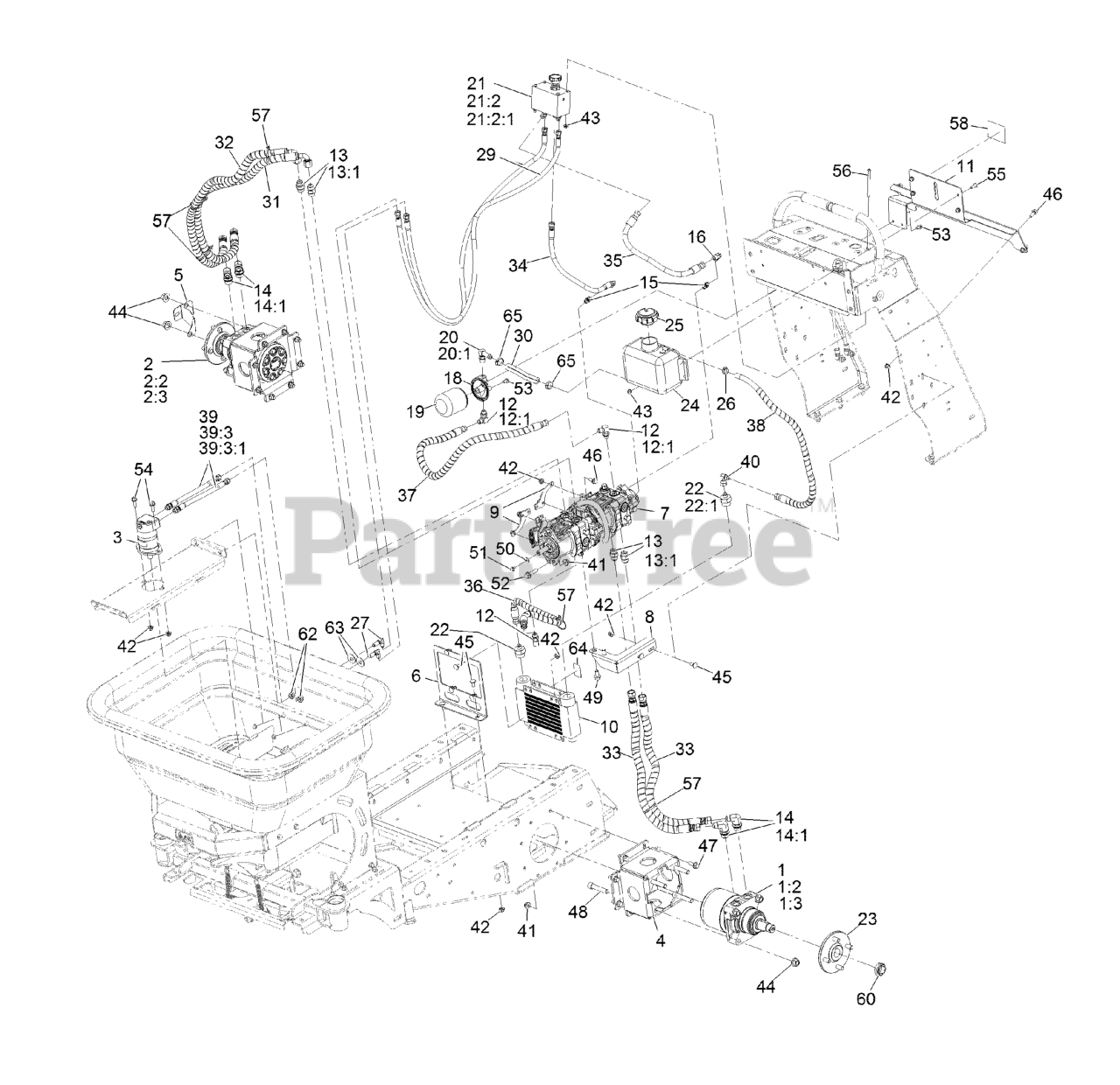

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 135-5230

MOTOR, LH WHEEL

$668.99

$

Usually ships in 3-6 days

0

1:2

Exmark 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 10

0

1:3

Exmark 103-6994

SEAL KIT

$330.99

$

Usually ships in 3-6 days

0

2

Exmark 135-5231

MOTOR, RH WHEEL

$668.99

$

Usually ships in 3-6 days

0

2:2

Exmark 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 10

0

2:3

Exmark 103-6994

SEAL KIT

$330.99

$

Usually ships in 3-6 days

0

3

Exmark 135-5243

MOTOR-HYDRAULIC, SPREADER

$527.99

$

Usually ships in 3-6 days

0

4

Exmark 135-5448-03

Mount-Motor, Wheel [black]

$162.99

$

Usually ships in 3-6 days

0

5

Exmark 135-5574

BRACKET-HOPPER, SPEEDOMET

$4.99

$

Usually ships in 3-6 days

0

6

Exmark 135-6483

Mount-Cooler

$52.99

$

Usually ships in 3-6 days

0

7

Exmark 135-5665

PUMP-TANDEM

$1867.99

$

Usually ships in 3-6 days

0

8

Exmark 135-5551

Bracket-Support, Hydro Pump

$28.99

$

Usually ships in 3-6 days

0

9

Exmark 135-5558

Extension, Hydro Pump

$4.99

$

Usually ships in 3-6 days

0

10

Exmark 135-5679

COOLER-OIL

$296.99

$

Usually ships in 3-6 days

0

11

Exmark 135-5550

Mount, Hydraulic Tank And Filter

$233.99

$

Usually ships in 3-6 days

0

12

Exmark 103-1802

FITTING-ELBOW, 90 DEG

$23.99

$

In Stock, only 2 left!

0

12:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

13

Exmark 353-388

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

13:1

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

14

Exmark 353-426

FITTING-90 DEG

$31.99

$

Usually ships in 3-6 days

0

14:1

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

15

Exmark 353-545

FITTING-STRAIGHT

$25.99

$

Usually ships in 3-6 days

0

16

Exmark 135-5680

FITTING-90 SWIVEL

$4.99

$

Usually ships in 3-6 days

0

18

Exmark 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 3 left!

0

19

Exmark 135-5695

FILTER-HYDRAULIC
(Superseded to 142-3049)

$32.99

$

In Stock, Qty 11

0

20

Exmark 109-6449

FITTING-ELBOW, 90

$33.99

$

Usually ships in 3-6 days

0

20:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

21

Exmark 135-5256

MANIFOLD-HOPPER, W/OUT RE
(Superseded to 142-8082)

$382.99

$

Usually ships in 3-6 days

0

21:2

Exmark 353-212

FITTING-ELBOW, 45 DEG

$26.99

$

Usually ships in 3-6 days

0

21:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

22

Exmark AU218-5044

ADAPTER-STRAIGHT

$7.99

$

Usually ships in 3-6 days

0

22:1

Exmark 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

23

Exmark 135-5684

HUB-WHEEL
(Superseded to 135-7525)

$111.99

$

In Stock, Qty 7

0

24

Exmark 135-5712

TANK-HYDRAULIC, PLASTIC

$39.99

$

Usually ships in 3-6 days

0

25

Exmark 135-5713

Cap-Vented

$20.99

$

In Stock, only 1 left!

0

26

Exmark 135-5757

CLAMP-OETIKER, 167

$2.49

$

Usually ships in 3-6 days

0

27

Exmark 135-5796

FITTING-ELBOW, 90

$4.99

$

Usually ships in 3-6 days

0

29

Exmark 135-5357

HOSE ASM, HYD HP
(Superseded to 142-3111)

$69.99

$

Usually ships in 3-6 days

0

30

Exmark 109-5577

HOSE-HYDRAULIC

$6.49

$

In Stock, Qty 5

0

31

Exmark 135-5458

HOSE ASM, HYD HP
(Superseded to 142-3115)

$117.99

$

Usually ships in 3-6 days

0

32

Exmark 135-5460

HOSE ASM, HYD HP
(Superseded to 142-3116)

$117.99

$

In Stock, only 1 left!

0

33

Exmark 135-5457

Hose ASM, HYD HP
(Superseded to 142-3114)

$69.99

$

Usually ships in 3-6 days

0

34

Exmark 135-5360

Hose ASM, HYD HP
(Superseded to 142-3113)

$59.99

$

Usually ships in 3-6 days

0

35

Exmark 135-5361

Hose ASM, HYD LP

$35.99

$

In Stock, only 1 left!

0

36

Exmark 135-5384

Hose ASM, HYD LP

$48.99

$

Usually ships in 3-6 days

0

37

Exmark 135-5385

Hose ASM, HYD LP

$64.99

$

Usually ships in 3-6 days

0

38

Exmark 135-5456

Hose ASM, HYD LP

$46.99

$

Usually ships in 3-6 days

0

39

Exmark 135-5359

HOSE ASM, HYD HP
(Superseded to 142-3112)

$51.99

$

Usually ships in 3-6 days

0

39:3

Fitting-Straight, Rigid

Note: Not serviced separately

$

$

Not available

39:3:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

40

Exmark AU218-980

ELBOW-SWIVEL, 90 DEG

$11.99

$

Usually ships in 3-6 days

0

41

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 5

0

42

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 15

0

43

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

44

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

45

Exmark 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

46

Exmark 126-2712

SCREW-HHF

$5.49

$

In Stock, Qty 8

0

47

Exmark 135-6208

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

48

Exmark 3274-71

Screw-HSH

$13.99

$

Usually ships in 3-6 days

0

49

Exmark 135-6274

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

50

Exmark 135-6273

Washer

$1.99

$

Usually ships in 3-6 days

0

51

Exmark 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5

0

52

Exmark 135-6278

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

53

Exmark 135-6280

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

54

Exmark 135-6272

SCREW-HHF

$3.49

$

In Stock, Qty 10

0

55

Exmark 135-7080

Screw-Hsbhf

$3.49

$

In Stock, Qty 8

0

56

Exmark 135-6385

Screw-HSBH

$1.99

$

Usually ships in 3-6 days

0

57

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

58

Exmark 135-6398

DECAL-OIL

$3.49

$

Usually ships in 3-6 days

0

60

Exmark 116-1399

LOCKNUT

$14.99

$

In Stock, only 1 left!

0

62

Exmark 3220-4

Nut-Jam

$2.99

$

Usually ships in 3-6 days

0

63

Exmark 135-5586

Washer-SS, 1.25 OD, .503 ID

$0.99

$

Usually ships in 3-6 days

0

64

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

65

Exmark 135-5692

CLAMP-OETIKER, 167

$2.49

$

In Stock, Qty 15

0
