ZS5260 - Exmark Z-Spray Z-Max Stand-on Sprayer, 5 GPM Pump (SN: 406294345 - 408644345) (Rev A) (2020) Liquid Valve Assembly Parts Diagram

Z-Spray Z-Max Stand-on Sprayer, 5 GPM Pump

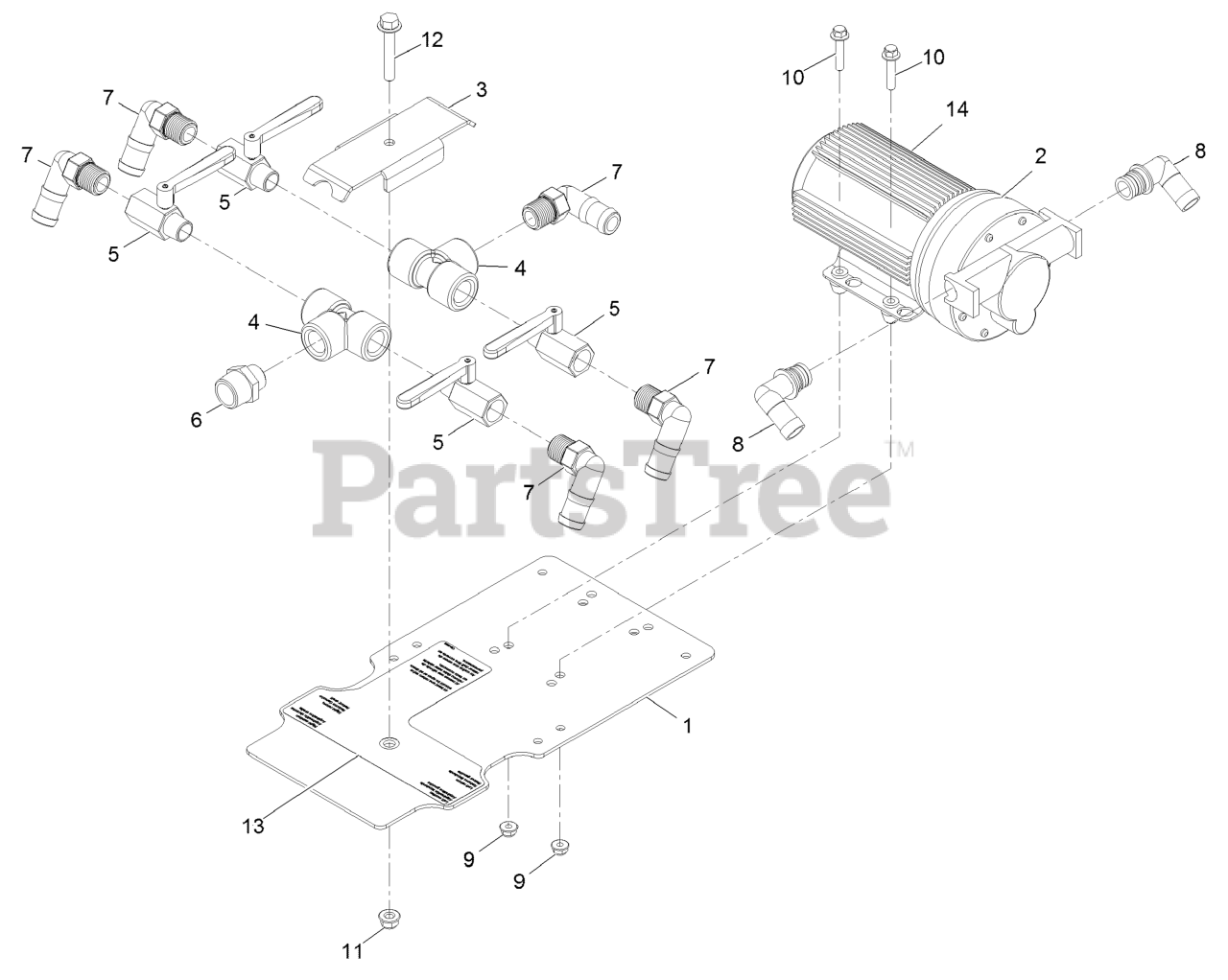

Liquid Valve Assembly Parts Diagram

  • Title

1

Exmark 135-5491

MOUNT-PLATE, LIQUID VALVE

$31.99

$

Usually ships in 3-6 days

0

2

Exmark 142-3321

PUMP-5.3 GPM

$354.99

$

In Stock, only 2 left!

0

3

Exmark 135-5504

PLATE-CLAMP, LIQUID VALVE

$7.99

$

Usually ships in 3-6 days

0

4

Exmark 94-7100

TEE

$10.99

$

In Stock, only 2 left!

0

5

Exmark 135-5760

VALVE-CHROME, 1/2

$29.99

$

In Stock, only 3 left!

0

6

Exmark 135-5742

FITTING-NIPPLE

$1.49

$

In Stock, only 3 left!

0

7

Exmark 92-8557

ELBOW-90

$5.99

$

In Stock, only 2 left!

0

8

Exmark 135-6003

FITTING-ELBOW, 3/4QD X 3/
(Superseded to 126-4420)

$15.99

$

In Stock, Qty 8

0

9

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

10

Exmark 135-6312

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

11

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 5

0

12

Exmark 126-2711

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0

13

Exmark 135-6420

DECAL-VALVE, TANK

$12.99

$

Usually ships in 3-6 days

0

14

Exmark 142-3322

HEATSINK-3.0""

$48.99

$

Usually ships in 3-6 days

0
