ZS5260 - Exmark Z-Spray Z-Max Stand-on Sprayer, 5 GPM Pump (SN: 406294345 - 408644345) (Rev A) (2020) Electrical Assembly Parts Diagram

Z-Spray Z-Max Stand-on Sprayer, 5 GPM Pump

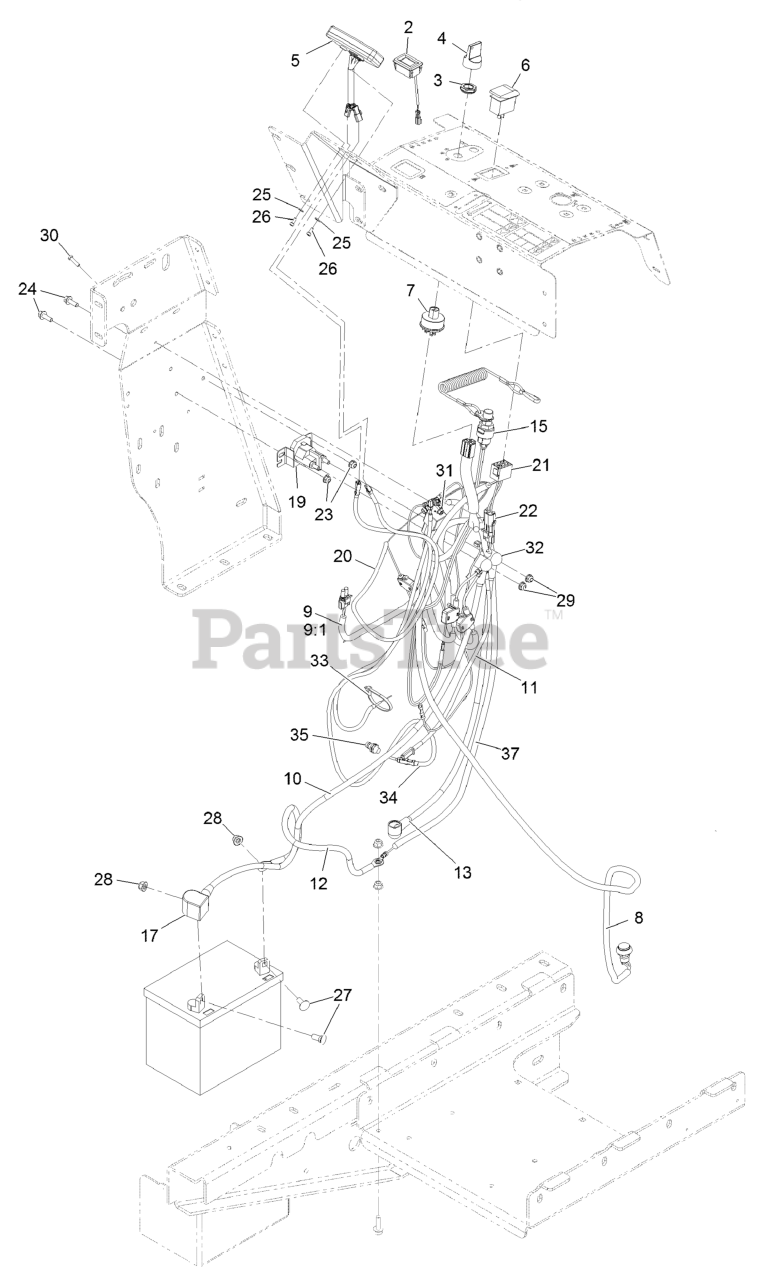

Electrical Assembly Parts Diagram

  • Title
2

Exmark 135-5259

METER-TACH/HOUR

$51.99

$

In Stock, only 1 left!

0

3

Exmark 135-5715

NUT-SWITCH, KEY

$3.49

$

Usually ships in 3-6 days

0

4

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

4

Exmark 135-5708

KEY-UMBRELLA

$7.99

$

Usually ships in 3-6 days

0

5

Exmark 135-8900

HEAD ONLY, STRIKER

$193.99

$

In Stock, only 1 left!

0

6

Exmark 100-8469

SWITCH-ROCKER

$26.99

$

In Stock, Qty 20+

0

7

Exmark 135-6052

SWITCH-IGNITION

$29.99

$

In Stock, Qty 6

0

8

Exmark 135-6054

Switch-Push Button

$115.99

$

In Stock, only 1 left!

0

9

Exmark 135-6113

Harness, Main

$198.99

$

Usually ships in 3-6 days

0

9:1

Exmark 135-6270

RELAY-MINI ISO PWR, 5M

$30.99

$

In Stock, only 1 left!

0

10

Exmark 135-6114

CABLE-POSITIVE

$27.99

$

Usually ships in 3-6 days

0

11

Exmark 135-6115

Wire-Solenoid

$19.99

$

Usually ships in 3-6 days

0

12

Exmark 135-6116

CABLE-GROUND

$19.99

$

Usually ships in 3-6 days

0

13

Exmark 135-6117

CABLE-POSITIVE

$22.99

$

Usually ships in 3-6 days

0

15

Exmark 135-6121

SWITCH-OP

$71.99

$

Usually ships in 3-6 days

0

17

Exmark 135-2304

Insulator-Battery

$1.99

$

Usually ships in 3-6 days

0

19

Exmark 135-6189

Solenoid-Starter

$38.99

$

Usually ships in 3-6 days

0

20

Exmark 135-6443

HARNESS-STRIKER

$19.99

$

In Stock, only 1 left!

0

21

Exmark 32160-008

CONNECTOR-CARLING, 8F

$4.99

$

Usually ships in 3-6 days

0

22

Exmark 32160-072

Connector-Wp,2M

$3.99

$

In Stock, only 3 left!

0

23

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

24

Exmark 135-6221

Screw-HHF

$1.99

$

In Stock, Qty 10

0

25

Exmark 126-0759

WASHER-FLAT

$1.49

$

In Stock, Qty 7

0

26

Exmark 135-6357

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

27

Exmark 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

28

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 5

0

29

$1.49

$

In Stock, Qty 20+

0

30

Exmark 135-6356

SCREW-HH

$1.99

$

In Stock, Qty 14

0

31

Exmark 135-6342

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

32

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

33

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

34

Exmark 135-8898

Cable-Trail Tech, Sensor

$50.99

$

In Stock, only 1 left!

0

35

Exmark 135-8903

MAGNET, SPEEDOMETER

$4.99

$

Usually ships in 3-6 days

0

37

Exmark 135-3998

HARNESS-WIRE, JUMPER

$30.99

$

Usually ships in 3-6 days

0

99

Exmark 135-7317

MANUAL-USER, STRIKER

Note: Not illustrated

$5.99

$

Usually ships in 3-6 days

0

99

Exmark 135-7318

CARD-STRIKER, QUICK START

Note: Not illustrated

$2.99

$

Usually ships in 3-6 days

0
