ZS4630XL - Exmark Z-Spray Intermediate Stand-on Sprayer, 7 GPM Pump (SN: 404314159 - 406294344) (2019) Manifold Assembly Parts Diagram

Z-Spray Intermediate Stand-on Sprayer, 7 GPM Pump

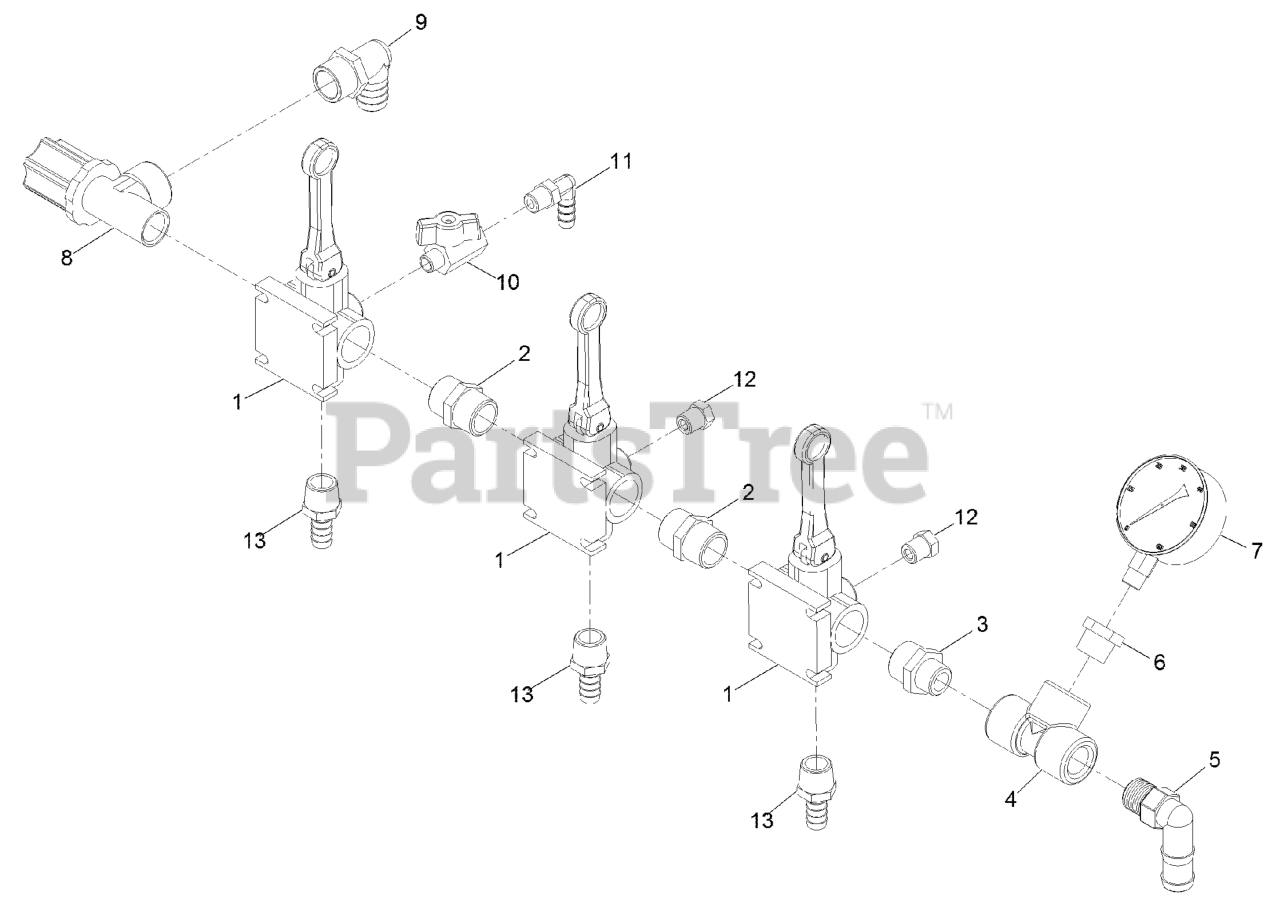

Manifold Assembly Parts Diagram

  • Title

1

Exmark 135-5721

VALVE-DIRECTO

$78.99

$

In Stock, Qty 6

0

2

Exmark 135-5741

FITTING-NIPPLE

$1.49

$

In Stock, Qty 5

0

3

Exmark 135-5742

FITTING-NIPPLE

$1.49

$

In Stock, only 3 left!

0

4

Exmark 94-7100

TEE

$10.99

$

In Stock, only 2 left!

0

5

Exmark 92-8557

ELBOW-90

$5.99

$

In Stock, only 2 left!

0

6

Exmark 135-5743

FITTING-REDUCER

$2.49

$

Usually ships in 3-6 days

0

7

Exmark 135-5740

GAUGE
(Superseded to 142-3437)

$35.99

$

Usually ships in 3-6 days

0

8

Exmark 135-5736

VALVE-THROTTLE

$57.99

$

In Stock, only 1 left!

0

9

Exmark 135-5772

FITTING-ELBOW, 90

$1.99

$

In Stock, Qty 5

0

10

Exmark 135-5737

VALVE-CHROME, 1/4

$20.99

$

Usually ships in 3-6 days

0

11

Exmark 135-5745

FITTING-ELBOW, 90

$1.49

$

In Stock, only 1 left!

0

12

Exmark 135-5735

PLUG-VALVE

$0.99

$

In Stock, only 2 left!

0

13

Exmark 120-8671

FITTING-HOSEBARB

$2.49

$

Usually ships in 3-6 days

0
