ZS4630 - Exmark Z-Spray Intermediate Stand-on Sprayer, 5 GPM Pump (SN: 408644346 - 411294211) (Rev B) (2021) Hopper Assembly Parts Diagram

Z-Spray Intermediate Stand-on Sprayer, 5 GPM Pump

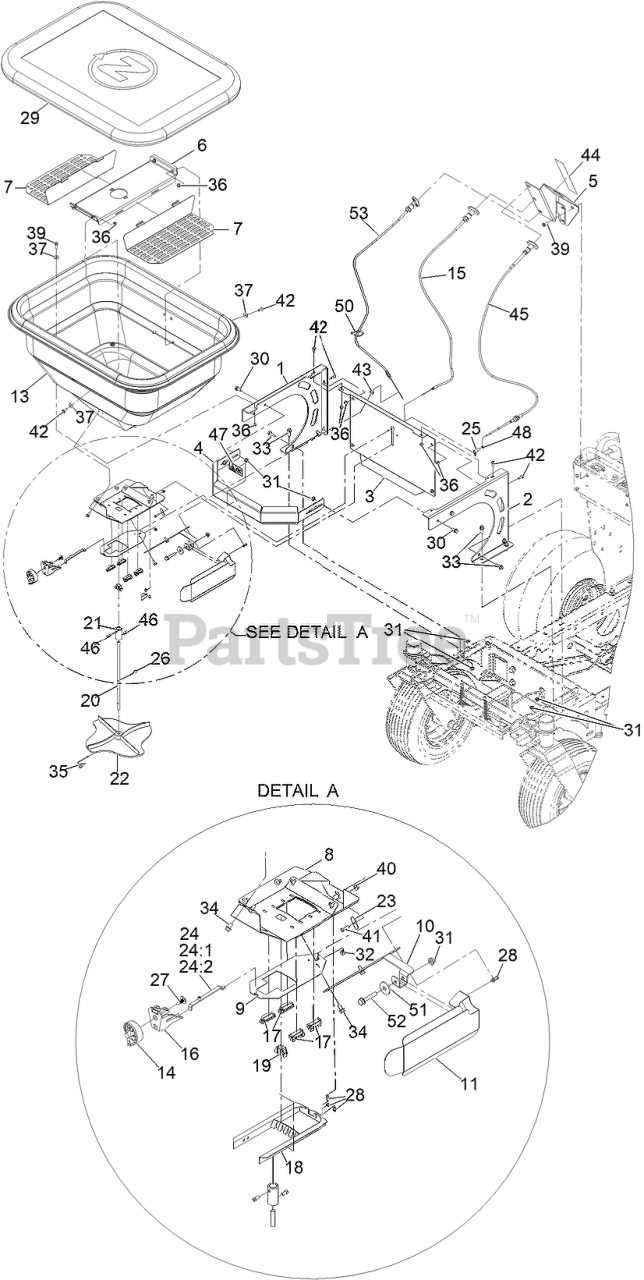

Hopper Assembly Parts Diagram

  • Title

1

Exmark 135-5391

Side-Hopper, Rt

$191.99

$

Usually ships in 3-6 days

0

2

Exmark 135-5393

Side-Hopper, Lt

$191.99

$

Usually ships in 3-6 days

0

3

Exmark 135-5571

Backshield-Hopper

$77.99

$

Usually ships in 3-6 days

0

4

Exmark 135-5567

BUMPER-FRONT, HOPPER

$50.99

$

In Stock, only 1 left!

0

5

Exmark 142-3957-05

Mount-Speedometer

$56.99

$

Usually ships in 3-6 days

0

6

Exmark 135-5542

PAN-HOPPER, 220

$50.99

$

Usually ships in 3-6 days

0

7

Exmark 135-5544

SCREEN-HOPPER, 220

$38.99

$

In Stock, only 1 left!

0

8

Exmark 142-5110

BASE PLATE, HOPPER, 220

$47.99

$

Usually ships in 3-6 days

0

9

Exmark 142-3792

Slide-Door, Hopper

$7.99

$

Usually ships in 3-6 days

0

10

Exmark 142-5102

MOUNT-DEFLECTOR, SIDE

$15.99

$

Usually ships in 3-6 days

0

11

Exmark 142-5103

Deflector-Side, Spreader

$45.99

$

Usually ships in 3-6 days

0

13

Exmark 142-5406

ASY-HOPPER 220 LB

$397.99

$

Usually ships in 3-6 days

0

14

Exmark 142-3359

Dial

$11.99

$

In Stock, only 4 left!

0

15

Exmark 135-5931

CABLE-PUSH/PULL

$57.99

$

In Stock, only 2 left!

0

16

Exmark 142-3319

MOUNT-DIAL

$2.99

$

In Stock, Qty 9

0

17

Exmark 142-3316

GUIDE-RATE, GATE

$1.99

$

In Stock, Qty 13

0

18

Exmark 142-3406

DIFFUSER

$7.49

$

Usually ships in 3-6 days

0

19

Exmark 142-4042

HOPPER BOTTOM BEARING

$1.99

$

Usually ships in 3-6 days

0

20

Exmark 142-5956

SHAFT-HOPPER, 220

$25.99

$

Usually ships in 3-6 days

0

21

Exmark 135-5937

COUPLER-SS

$28.99

$

In Stock, only 2 left!

0

22

Exmark 142-3506

Spinner-Spreader

$41.99

$

In Stock, only 2 left!

0

23

Exmark 135-5569

RETAINER, CABLE

$1.99

$

In Stock, only 3 left!

0

24

Exmark 126-2659

RATE GATE LINK ASM

$27.99

$

In Stock, only 1 left!

0

24:1

Exmark 126-0987

LINK-GATE, RATE

$34.99

$

In Stock, only 1 left!

0

24:2

Exmark 126-4196

SCREW-SHOULDER, SLOTTED

$10.99

$

In Stock, only 2 left!

0

25

Exmark 135-5682

BALL JOINT-SS

$47.99

$

Usually ships in 3-6 days

0

26

Exmark 142-3666

WIRE-AGITATOR

$3.49

$

In Stock, only 1 left!

0

27

Exmark 88-1080

Footpad Fastener

$8.99

$

In Stock, only 4 left!

0

28

Exmark 142-3886

WIRE-STOP

$3.49

$

Usually ships in 3-6 days

0

29

Exmark 142-6119

COVER-HOPPER, LARGE

$91.99

$

Usually ships in 3-6 days

0

30

Exmark 126-2712

SCREW-HHF

$5.49

$

In Stock, Qty 8

0

31

Exmark 135-6109

Nut-Hex Flange

$1.49

$

In Stock, Qty 5

0

32

Exmark HDW05856

Nut,NYL Lock,#10-32,ST/ST 18-8

$1.49

$

In Stock, Qty 6

0

33

Exmark 135-6272

SCREW-HHF

$2.99

$

In Stock, Qty 10

0

34

Exmark 135-6280

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 142-3541

Clip-Spinner

$10.99

$

Usually ships in 3-6 days

0

36

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

37

Exmark 135-6341

Washer

$1.49

$

Usually ships in 3-6 days

0

39

Exmark 135-7081

Screw-Hsbhf

$3.49

$

Usually ships in 3-6 days

0

40

Exmark 135-6342

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

41

Exmark 135-6356

SCREW-HH

$1.49

$

In Stock, Qty 14

0

42

Exmark 135-7080

Screw-Hsbhf

$2.99

$

In Stock, Qty 8

0

43

Exmark 135-5988

Grommet-Rubber

$1.99

$

Usually ships in 3-6 days

0

44

Exmark 142-3958

Decal-Hopper Control

$5.99

$

Usually ships in 3-6 days

0

45

Exmark 135-5935

CABLE-PUSH/PULL

$105.99

$

In Stock, only 1 left!

0

46

Exmark 3241-7

Screw-SQH

$3.99

$

In Stock, only 2 left!

0

47

Exmark 135-6725

Decal-Dismemberment Hazard

$3.49

$

Usually ships in 3-6 days

0

48

Exmark 520-0019

Nut,Hex Jam Mch Scr,10-32,Sst

$0.99

$

In Stock, only 1 left!

0

50

Exmark 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 8

0

51

Exmark 107675

WASHER

$3.49

$

In Stock, Qty 18

0

52

Exmark 135-5779

Screw-HHF

$2.99

$

Usually ships in 3-6 days

0

53

Exmark 142-3925

Cable-Control, Turn Lock 2.00 Trvl

$57.99

$

Usually ships in 3-6 days

0
