ZS4630 - Exmark Z-Spray Intermediate Stand-on Sprayer, 5 GPM Pump (SN: 406294345 - 408644345) (Rev A) (2020) Park Brake Assembly Parts Diagram

Z-Spray Intermediate Stand-on Sprayer, 5 GPM Pump

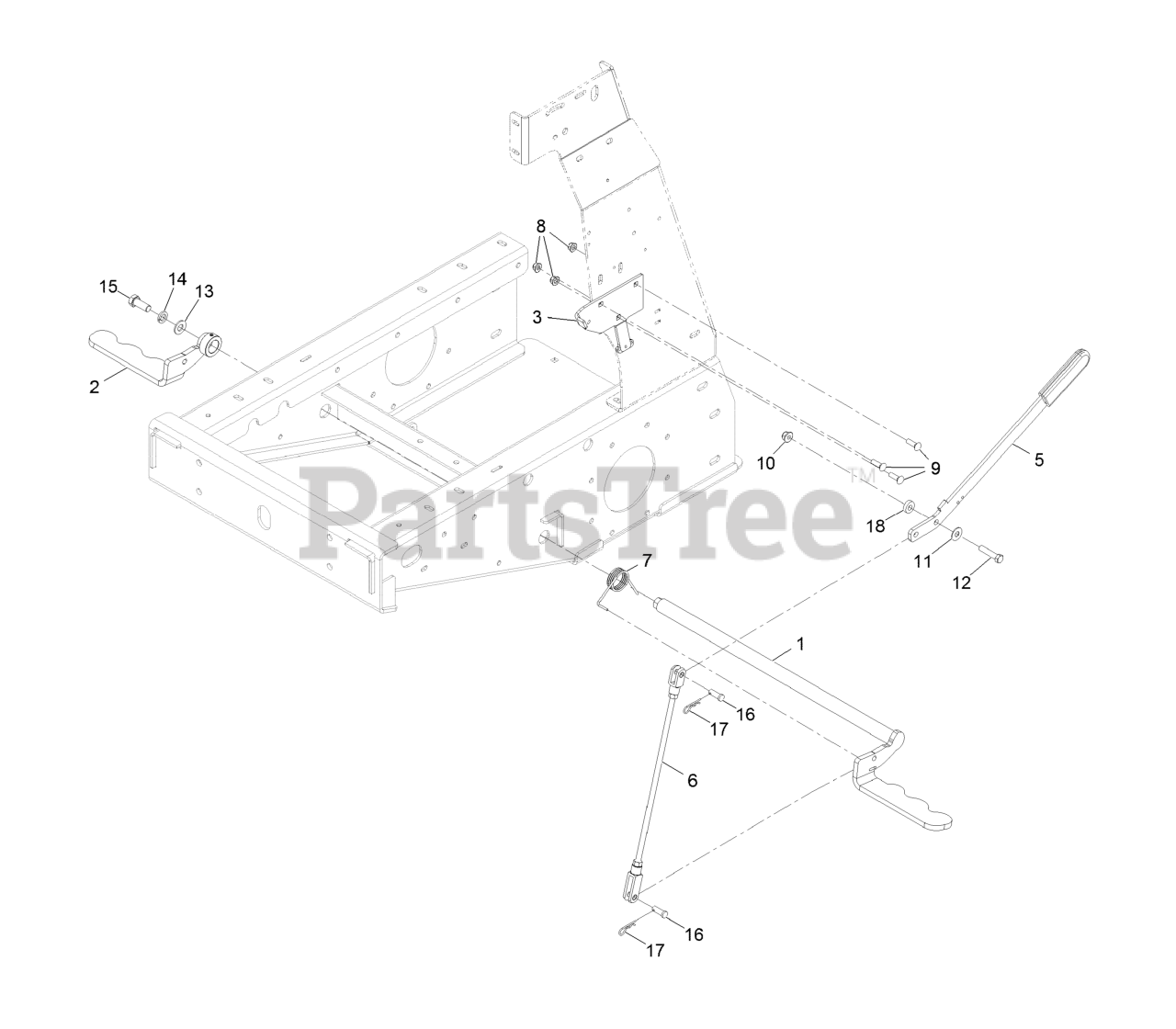

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 135-5526-03

Arm-Brake, Lt [black]

$82.99

$

Usually ships in 3-6 days

0

2

Exmark 135-5529-03

Arm-Brake, Rt [black]

$44.99

$

Usually ships in 3-6 days

0

3

Exmark 135-7225

Bracket-Handle, Brake

$44.99

$

Usually ships in 3-6 days

0

5

Exmark 135-6058

Handle-Brake

$37.99

$

Usually ships in 3-6 days

0

6

Exmark 135-6066

ASM, Rod-Brake

$47.99

$

In Stock, only 1 left!

0

7

Exmark 135-6106

SPRING-TORSION

$6.49

$

In Stock, only 3 left!

0

8

Exmark 135-6109

Nut-Hex Flange

$1.49

$

In Stock, Qty 5

0

9

Exmark HDW17294

Bolt,Carriage,5/16-18X1,ST/ST 18-8

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 1126

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

12

Exmark 323-52

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

13

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

15

Exmark 106-0378

Screw ( .50-20Unfx1.25 Grade 8]

$4.99

$

In Stock, Qty 5

0

16

Exmark 1-808284

PIN-CLEVIS

$3.49

$

In Stock, only 4 left!

0

17

Exmark 135-6284

Pin-Hair

$0.99

$

In Stock, Qty 6

0

18

Exmark 5-0652

SPACER

$7.49

$

In Stock, Qty 5

0
