ZS4630 - Exmark Z-Spray Intermediate Stand-on Sprayer, 5 GPM Pump (SN: 404314159 - 406294344) (2019) Liquid Valve Assembly Parts Diagram

Z-Spray Intermediate Stand-on Sprayer, 5 GPM Pump

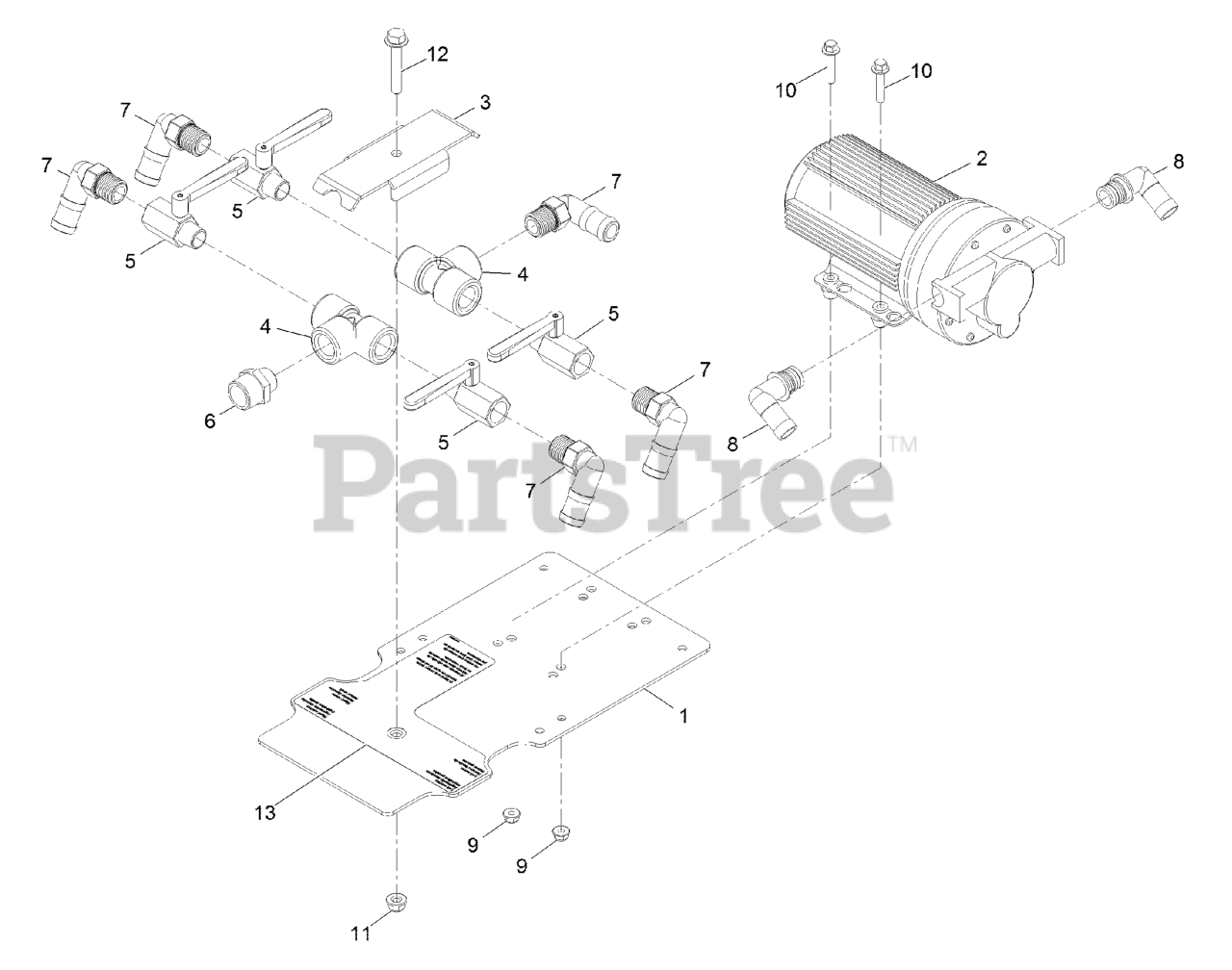

Liquid Valve Assembly Parts Diagram

  • Title

1

Exmark 135-5491

MOUNT-PLATE, LIQUID VALVE

$33.99

$

Usually ships in 3-6 days

0

2

Exmark 135-5759

PUMP-5.0 GPM
(Superseded to 142-3321)

$354.99

$

In Stock, only 2 left!

0

3

Exmark 135-5504

PLATE-CLAMP, LIQUID VALVE

$7.99

$

Usually ships in 3-6 days

0

4

Exmark 94-7100

TEE

$10.99

$

In Stock, only 2 left!

0

5

Exmark 135-5760

VALVE-CHROME, 1/2

$30.99

$

In Stock, only 3 left!

0

6

Exmark 135-5742

FITTING-NIPPLE

$1.49

$

In Stock, only 3 left!

0

7

Exmark 92-8557

ELBOW-90

$6.49

$

In Stock, Qty 12

0

8

Exmark 135-6003

FITTING-ELBOW, 3/4QD X 3/
(Superseded to 126-4420)

$15.99

$

In Stock, Qty 10

0

9

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

10

Exmark 135-6312

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

11

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 15

0

12

Exmark 126-2711

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0

13

Exmark 135-6420

DECAL-VALVE, TANK

$13.99

$

Usually ships in 3-6 days

0
