ZS4230 - Exmark Z-Spray Junior Stand-on Sprayer, 5 GPM Pump (SN: 408644346 - 411294211) (Rev B) (2021) Hydraulic Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5 GPM Pump

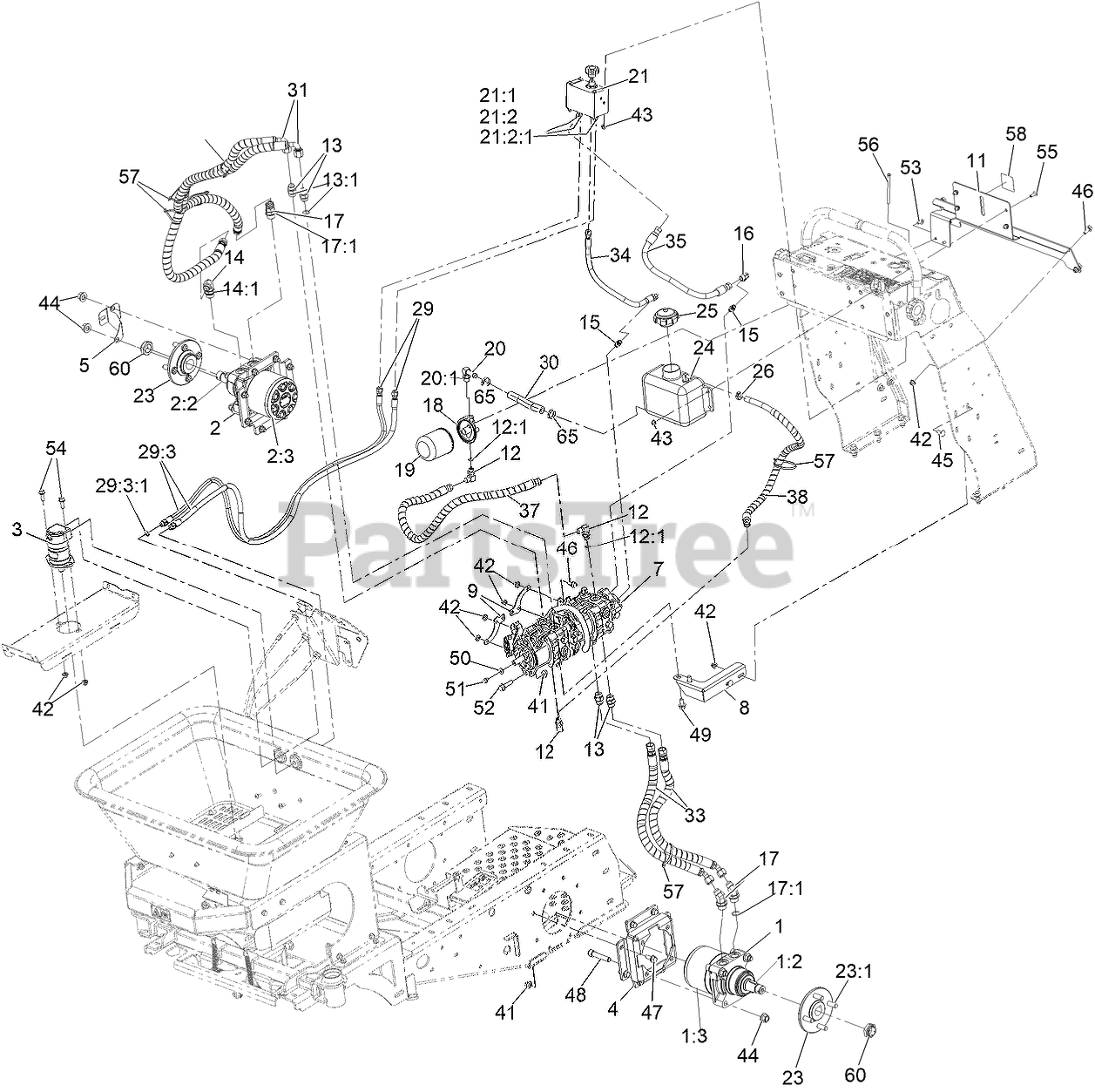

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 135-5230

MOTOR, LH WHEEL

$668.99

$

Usually ships in 3-6 days

0

1:2

Exmark 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 10

0

1:3

Exmark 103-6994

SEAL KIT

$330.99

$

Usually ships in 3-6 days

0

2

Exmark 135-5231

MOTOR, RH WHEEL

$668.99

$

Usually ships in 3-6 days

0

2:2

Exmark 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 10

0

2:3

Exmark 103-6994

SEAL KIT

$330.99

$

Usually ships in 3-6 days

0

3

Exmark 135-5243

MOTOR-HYDRAULIC, SPREADER

$527.99

$

Usually ships in 3-6 days

0

4

Exmark 135-5524

Mount-Motor, Wheel

$154.99

$

Usually ships in 3-6 days

0

5

Exmark 135-5574

BRACKET-HOPPER, SPEEDOMET

$4.99

$

Usually ships in 3-6 days

0

7

Exmark 135-5665

PUMP-TANDEM

$1867.99

$

Usually ships in 3-6 days

0

8

Exmark 135-5551

Bracket-Support, Hydro Pump

$28.99

$

Usually ships in 3-6 days

0

9

Exmark 135-5558

Extension, Hydro Pump

$4.99

$

Usually ships in 3-6 days

0

11

Exmark 135-5550

Mount, Hydraulic Tank And Filter

$233.99

$

Usually ships in 3-6 days

0

12

Exmark 103-1802

FITTING-ELBOW, 90 DEG

$23.99

$

In Stock, only 2 left!

0

12:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

13

Exmark 353-388

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

13:1

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

14

Exmark 353-426

FITTING-90 DEG

$31.99

$

Usually ships in 3-6 days

0

14:1

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

15

Exmark 353-545

FITTING-STRAIGHT

$25.99

$

Usually ships in 3-6 days

0

16

Exmark 135-5680

FITTING-90 SWIVEL

$4.99

$

Usually ships in 3-6 days

0

17

Exmark 135-5696

FITTING-ELBOW, 45 DEG

$5.99

$

Usually ships in 3-6 days

0

17:1

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

18

Exmark 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 3 left!

0

19

Exmark 109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$49.99

$

In Stock, Qty 13

0

20

Exmark 109-6449

FITTING-ELBOW, 90

$33.99

$

Usually ships in 3-6 days

0

20:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

21

Exmark 142-4324

Manifold-Flow Control, Hopper
(Superseded to 142-8082)

$382.99

$

Usually ships in 3-6 days

0

21:1

Exmark 01-201-0780

DISCONTINUED

$7.49

$

Usually ships in 3-6 days

0

21:2

Exmark 353-212

FITTING-ELBOW, 45 DEG

$26.99

$

Usually ships in 3-6 days

0

21:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

23

Exmark 135-7525

HUB-WHEEL

$111.99

$

In Stock, Qty 7

0

23:1

Exmark 135-7526

STUD-1/2-20 X 1.55

$5.49

$

Usually ships in 3-6 days

0

24

Exmark 135-5712

TANK-HYDRAULIC, PLASTIC

$39.99

$

Usually ships in 3-6 days

0

25

Exmark 135-5713

Cap-Vented

$20.99

$

In Stock, only 1 left!

0

26

Exmark 135-5757

CLAMP-OETIKER, 167

$2.49

$

Usually ships in 3-6 days

0

29

Exmark 142-6167

HOSE ASM-HYD HP

$90.99

$

Usually ships in 3-6 days

0

29:3

Fitting-Straight, Rigid

Note: Not serviced separately

$

$

Not available

29:3:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

30

Exmark 109-5577

HOSE-HYDRAULIC

$6.49

$

In Stock, Qty 5

0

31

Exmark 142-3115

HOSE ASM-HYD HP

$117.99

$

Usually ships in 3-6 days

0

33

Exmark 142-3117

HOSE ASM-HYD HP

$93.99

$

Usually ships in 3-6 days

0

34

Exmark 142-3113

Hose ASM-HYD HP

$59.99

$

Usually ships in 3-6 days

0

35

Exmark 135-5361

Hose ASM, HYD LP

$35.99

$

In Stock, only 1 left!

0

37

Exmark 135-5385

Hose ASM, HYD LP

$64.99

$

Usually ships in 3-6 days

0

38

Exmark 135-5456

Hose ASM, HYD LP

$46.99

$

Usually ships in 3-6 days

0

41

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 5

0

42

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 15

0

43

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

44

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

45

Exmark 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

46

Exmark 126-2712

SCREW-HHF

$5.49

$

In Stock, Qty 8

0

47

Exmark 135-6208

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

48

Exmark 3274-71

Screw-HSH

$13.99

$

Usually ships in 3-6 days

0

49

Exmark 135-6274

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

50

Exmark 135-6273

Washer

$1.99

$

Usually ships in 3-6 days

0

51

Exmark 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5

0

52

Exmark 135-6278

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

53

Exmark 135-6280

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

54

Exmark 135-6272

SCREW-HHF

$3.49

$

In Stock, Qty 10

0

55

Exmark 135-7080

Screw-Hsbhf

$3.49

$

In Stock, Qty 8

0

56

Exmark 135-6385

Screw-HSBH

$1.99

$

Usually ships in 3-6 days

0

57

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

58

Exmark 135-6398

DECAL-OIL

$3.49

$

Usually ships in 3-6 days

0

60

Exmark 116-1399

LOCKNUT

$14.99

$

In Stock, only 1 left!

0

65

Exmark 135-5692

CLAMP-OETIKER, 167

$2.49

$

In Stock, Qty 15

0
