ZS4230 - Exmark Z-Spray Junior Stand-on Sprayer, 5 GPM Pump (SN: 406294345 - 408644345) (Rev A) (2020) Reel Hose Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5 GPM Pump

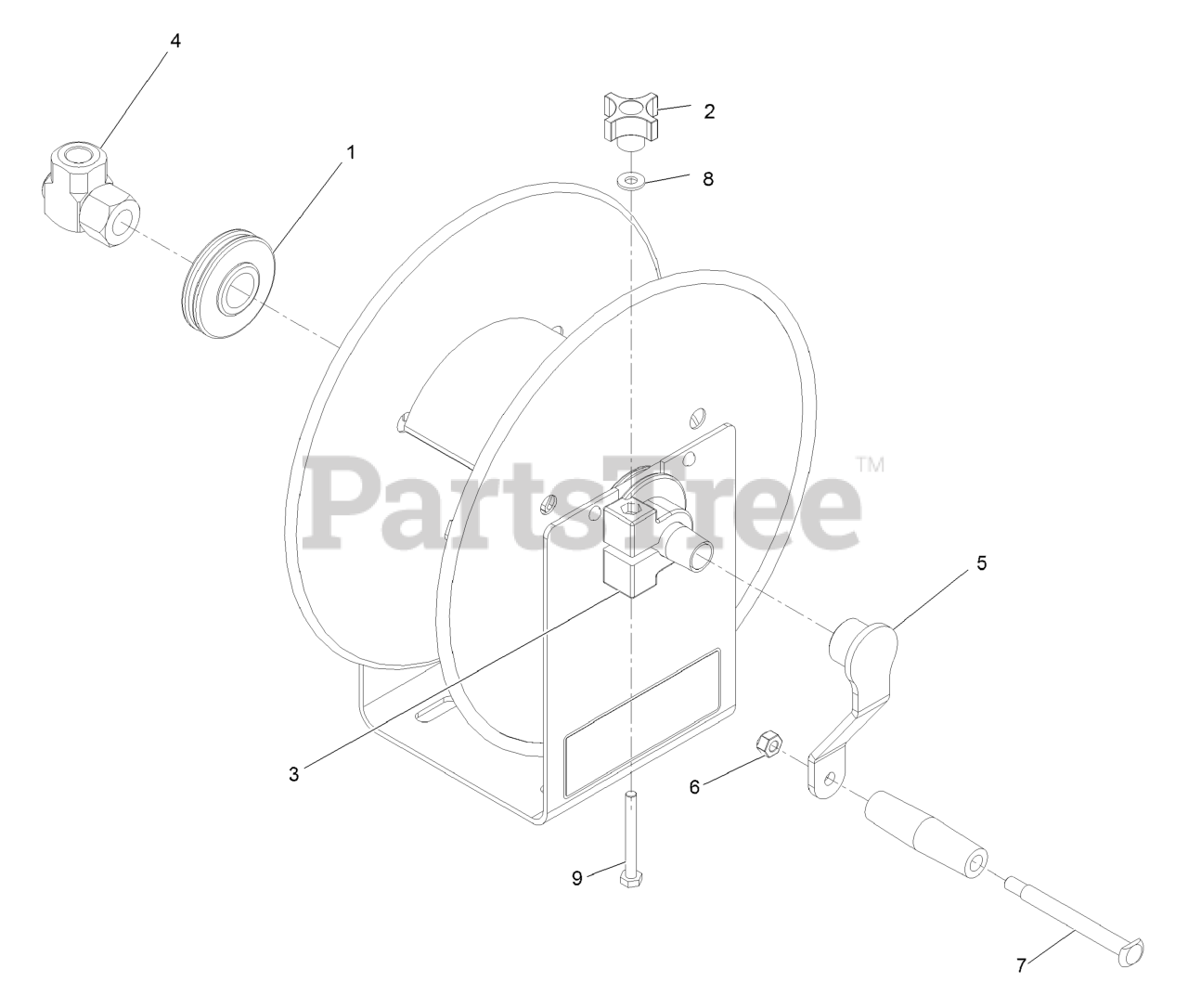

Reel Hose Assembly Parts Diagram

  • Title
1

Exmark 135-8439

PLASTIC BEARING

$13.99

$

Usually ships in 3-6 days

0

2

Exmark 135-8437

HOSE REEL BRAKE KNOB

$7.49

$

Usually ships in 3-6 days

0

3

Exmark 135-8438

BRAKE/BEARING 6329-1-1

$15.99

$

Usually ships in 3-6 days

0

4

Exmark 135-8421

SWIVEL 3/8" NPT

$131.99

$

Usually ships in 3-6 days

0

5

Exmark 135-6011

Crank-Reel

$46.99

$

Usually ships in 3-6 days

0

6

Exmark 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

7

Exmark 135-8436

BOLT, HOSE REEL HANDLE

$9.49

$

Usually ships in 3-6 days

0

8

Exmark 120-9679

Washer-Flat

$2.49

$

Usually ships in 3-6 days

0

9

Exmark 321-18

SCREW-HH

$2.49

$

In Stock, Qty 20+

0
