ZS4230 - Exmark Z-Spray Junior Stand-on Sprayer, 5 GPM Pump (SN: 406294345 - 408644345) (Rev A) (2020) Left Tank Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5 GPM Pump

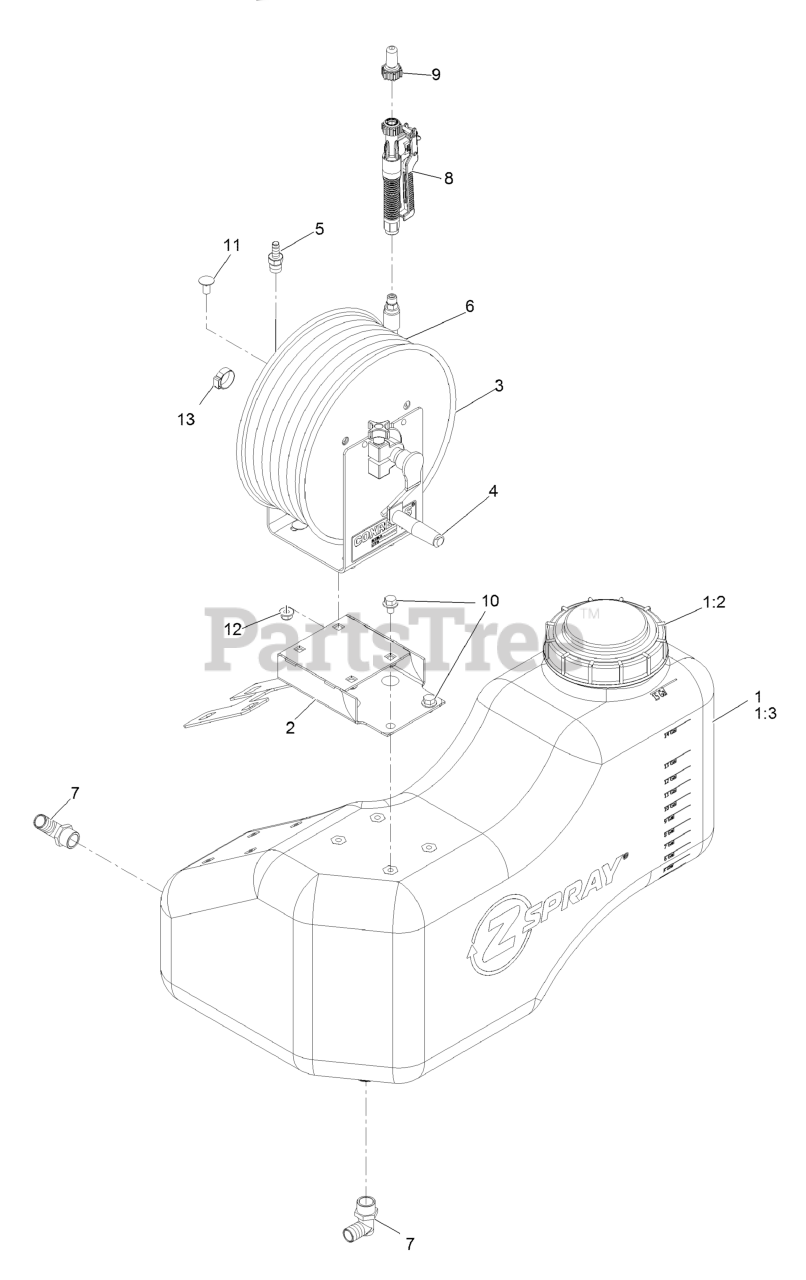

Left Tank Assembly Parts Diagram

  • Title

1

Exmark 142-3063

ASM-TANK, LT

$499.99

$

Usually ships in 3-6 days

0

1:2

Exmark 135-5916

CAP-TANK, SPRAY

$10.99

$

In Stock, only 4 left!

0

1:3

Exmark 126-4393

FITTING-BULKHEAD

$17.99

$

In Stock, only 3 left!

0

2

Exmark 135-5521

MOUNT-REEL, HOSE

$62.99

$

Usually ships in 3-6 days

0

3

Exmark 135-5787

REEL-HOSE

$424.99

$

Usually ships in 3-6 days

0

4

Exmark 135-6011

Crank-Reel

$42.99

$

Usually ships in 3-6 days

0

5

Exmark 1-513200

FITTING,MALE

$9.49

$

In Stock, only 2 left!

0

6

Exmark 135-5794

HOSE-SPRAY, 75'

$240.99

$

In Stock, only 1 left!

0

7

Exmark 135-5772

FITTING-ELBOW, 90

$1.99

$

In Stock, Qty 5

0

8

Exmark 135-5773

GUN-SPRAY, SPOT

$64.99

$

In Stock, Qty 20+

0

9

Exmark 135-5778

TIP-SPRAY, #12 SPOT

$23.99

$

In Stock, Qty 8

0

10

Exmark 135-7096

Screw-HHF

$3.99

$

Usually ships in 3-6 days

0

11

Exmark 135-6271

SCREW-CARRIAGE

$1.99

$

In Stock, only 4 left!

0

12

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 5

0

13

Exmark 135-5757

CLAMP-OETIKER, 167

$1.99

$

Usually ships in 3-6 days

0
