ZS3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5 GPM Pump (SN: 411294212 - 413950473) (Rev A) (2022) Main Frame Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5 GPM Pump

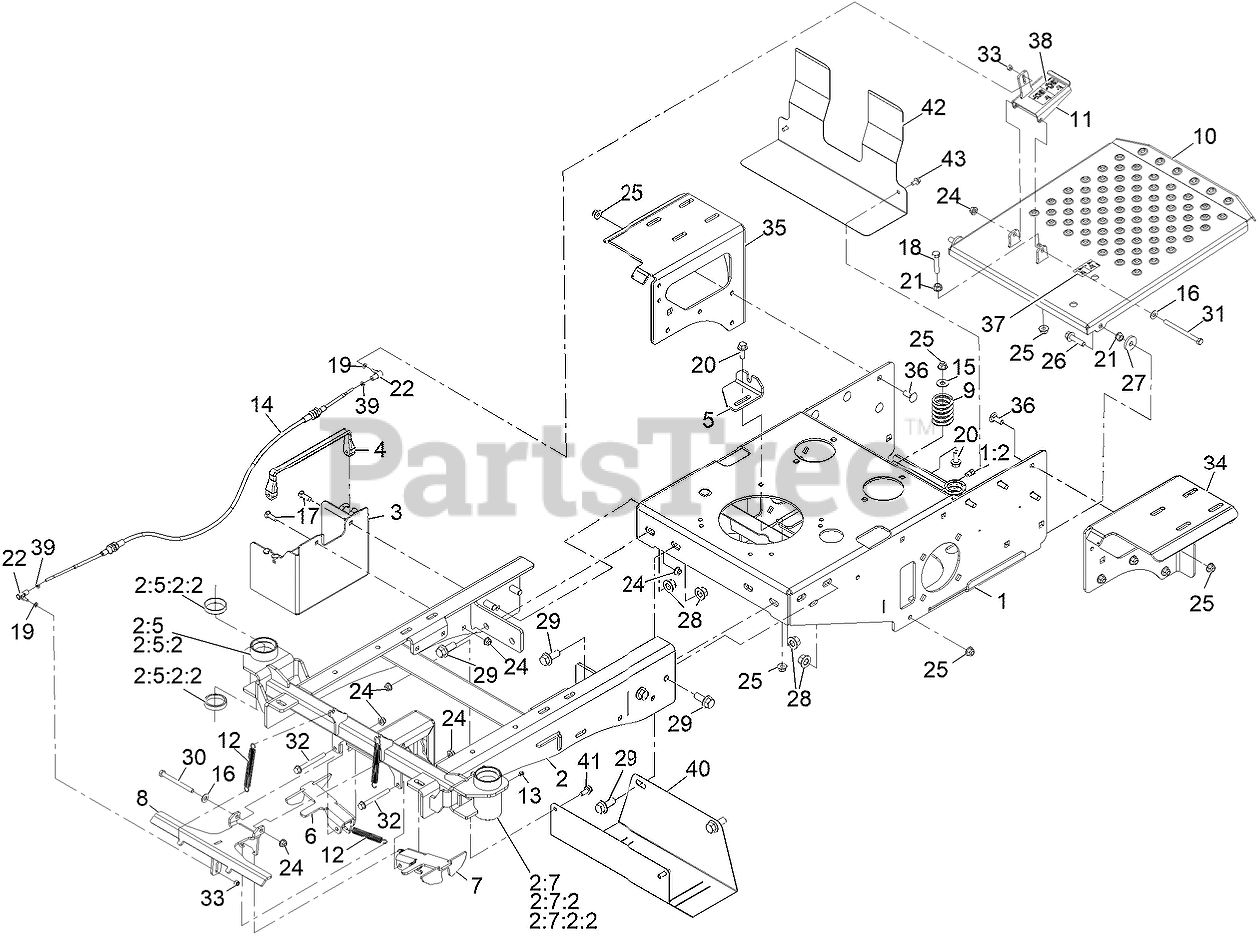

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 135-7823

FRAME-REAR

$1153.99

$

Usually ships in 3-6 days

0

1:2

Exmark 138-2758

NUT-CLINCH,HEX

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 142-0778

WLD, FRONT FRAME, JR36 24

$1893.99

$

Usually ships in 3-6 days

0

2:5

Tube-Caster Rt

Note: Not serviced separately

$

$

Not available

2:5:2

Tube-Caster, W/Cup

Note: Not serviced separately

$

$

Not available

2:5:2:2

Exmark 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 11

0

2:7

Tube-Caster Lt

Note: Not serviced separately

$

$

Not available

2:7:2

Tube-Caster, W/Cup

Note: Not serviced separately

$

$

Not available

2:7:2:2

Exmark 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 11

0

3

Exmark 142-3038

BOX-BATTERY

$115.99

$

Usually ships in 3-6 days

0

4

Exmark 142-1748

BUNGEE (TARP STRAP)

$6.49

$

Usually ships in 3-6 days

0

5

Exmark 135-5494

Bracket, Lower Cable

$17.99

$

Usually ships in 3-6 days

0

6

Exmark 135-5195

Wing-Capture, Rt

$38.99

$

In Stock, only 1 left!

0

7

Exmark 135-5194

Wing-Capture, Lt

$38.99

$

Usually ships in 3-6 days

0

8

Exmark 142-0806

WLD, CAPTURE, T-BAR, JR36

$57.99

$

Usually ships in 3-6 days

0

9

Exmark 135-5654

SPRING-COMPRESSION

$13.99

$

In Stock, only 4 left!

0

10

Exmark 135-7508

WLD, FOOT PLATE, JR36

$319.99

$

Usually ships in 3-6 days

0

11

Exmark 142-1923

Wld, Foot Pedal, Lcs

$34.99

$

Usually ships in 3-6 days

0

12

Exmark 135-5652

SPRING-EXTENSION

$4.49

$

In Stock, only 2 left!

0

13

Exmark 302-63

FITTING-GREASE, ZERK

$2.99

$

In Stock, Qty 19

0

14

Exmark 135-5644

CABLE-CASTER, LOCKING

$110.99

$

Usually ships in 3-6 days

0

15

Exmark 1126

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

16

Exmark 107-0279

WASHER

$1.99

$

Usually ships in 3-6 days

0

17

Exmark HDW17294

Bolt,Carriage,5/16-18X1,ST/ST 18-8

$1.49

$

Usually ships in 3-6 days

0

18

Exmark 126-0710

Screw-HH

$1.99

$

Usually ships in 3-6 days

0

19

Exmark 126-0759

WASHER-FLAT

$1.49

$

In Stock, Qty 7

0

20

Exmark 135-6208

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

21

Exmark 135-6806

Nut-Hex Flange

$1.99

$

Usually ships in 3-6 days

0

22

Exmark 135-5682

BALL JOINT-SS

$49.99

$

Usually ships in 3-6 days

0

24

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 5

0

25

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 5

0

26

Exmark 135-6278

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

27

Exmark 126-3875

WASHER

$5.49

$

Usually ships in 3-6 days

0

28

Exmark 135-6111

NUT-HEX FLANGE

$6.49

$

Usually ships in 3-6 days

0

29

Exmark 135-6207

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

30

Exmark 135-6217

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

31

Exmark 135-6218

Screw-HH

$1.99

$

Usually ships in 3-6 days

0

32

Exmark 135-6222

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

33

Exmark HDW05856

Nut,NYL Lock,#10-32,ST/ST 18-8

$1.49

$

In Stock, Qty 6

0

34

Exmark 142-0775

WLD, MOUNT, FERT BOX, L, JR36

$171.99

$

Usually ships in 3-6 days

0

35

Exmark 142-0777

WLD, MOUNT, FERT BOX, R,

$184.99

$

Usually ships in 3-6 days

0

36

Exmark 126-0980

SCREW-CARR

$1.99

$

In Stock, only 1 left!

0

37

Exmark 135-6728

Decal-Spray Foot Button

$3.49

$

Usually ships in 3-6 days

0

38

Exmark 135-6430

Decal-Lock, Caster

$4.99

$

Usually ships in 3-6 days

0

39

Exmark 520-0019

Nut,Hex Jam Mch Scr,10-32,Sst

$0.99

$

In Stock, only 1 left!

0

40

Exmark 142-0744

GUARD, MUFFLER, JR36

$75.99

$

Usually ships in 3-6 days

0

41

Exmark 126-2712

SCREW-HHF

$5.49

$

In Stock, Qty 8

0

42

Exmark 135-8653-05

Shield, Heat, HYD Pump, Jr36

$67.99

$

Usually ships in 3-6 days

0

43

Exmark 135-6280

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0
