ZS3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5 GPM Pump (SN: 411294212 - 413950473) (Rev A) (2022) Liquid Valve Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5 GPM Pump

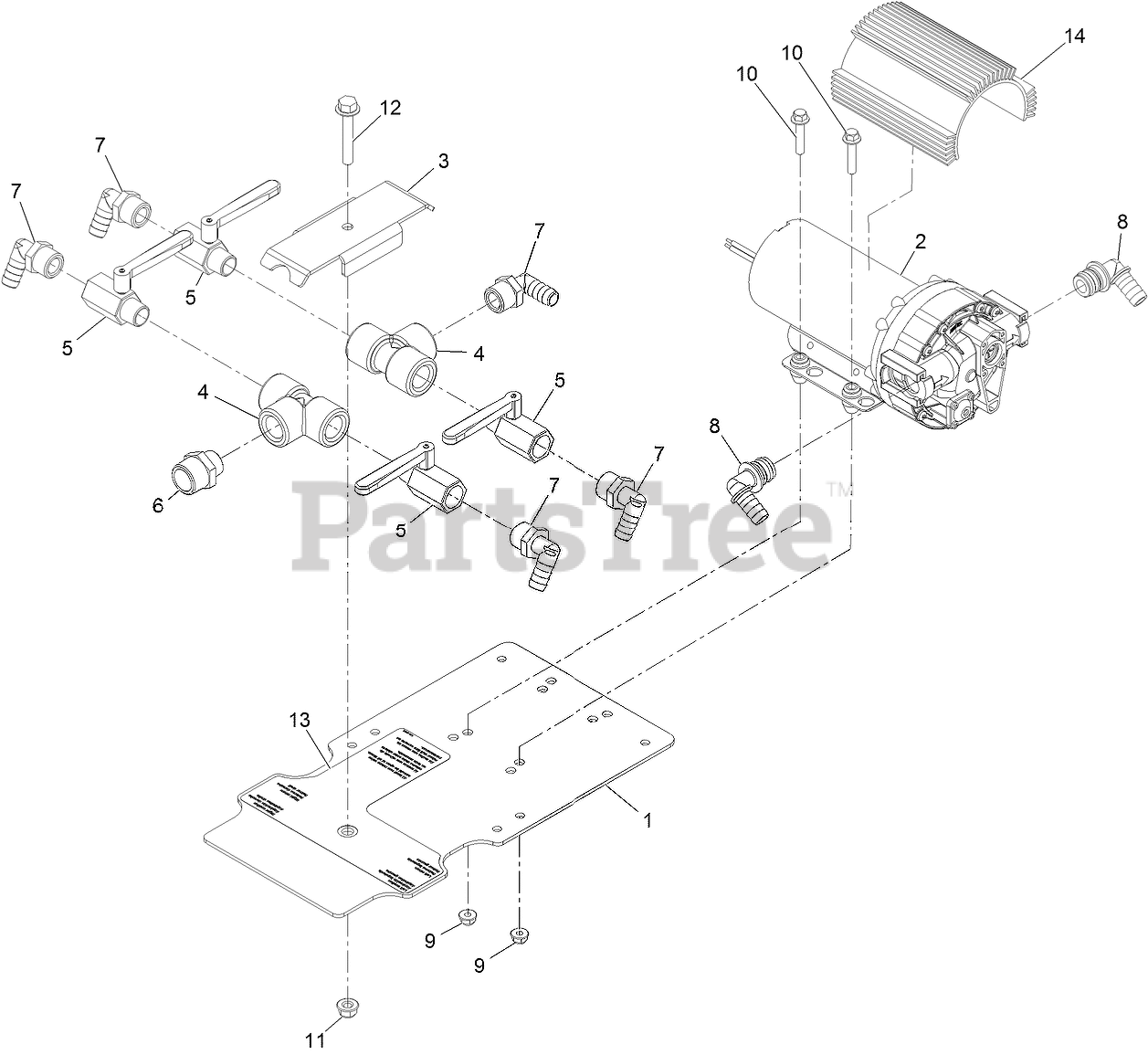

Liquid Valve Assembly Parts Diagram

  • Title

1

Exmark 135-5491

MOUNT-PLATE, LIQUID VALVE

$33.99

$

Usually ships in 3-6 days

0

2

Exmark 142-3321

PUMP-5.3 GPM

$354.99

$

In Stock, only 2 left!

0

3

Exmark 135-5504

PLATE-CLAMP, LIQUID VALVE

$7.99

$

Usually ships in 3-6 days

0

4

Exmark 94-7100

TEE

$10.99

$

In Stock, only 2 left!

0

5

Exmark 135-5760

VALVE-CHROME, 1/2

Note: Apply pipe sealant to all pipe threads.

$30.99

$

In Stock, only 3 left!

0

6

Exmark 135-5742

FITTING-NIPPLE

Note: Apply pipe sealant to all pipe threads.

$1.49

$

In Stock, only 3 left!

0

7

Exmark 120-8673

FITTING-ELBOW, HOSEBARB

Note: Apply pipe sealant to all pipe threads.

$3.49

$

In Stock, only 3 left!

0

8

Exmark 126-0961

FITTING-ELBOW, BARBED

$10.99

$

In Stock, only 3 left!

0

9

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

10

Exmark 135-6312

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

11

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 15

0

12

Exmark 126-2711

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0

13

Exmark 135-6420

DECAL-VALVE, TANK

$13.99

$

Usually ships in 3-6 days

0

14

Exmark 142-3322

HEATSINK-3.0""

$52.99

$

Usually ships in 3-6 days

0
