ZS3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5 GPM Pump (SN: 408644346 - 411294211) (Rev B) (2021) Spreader Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5 GPM Pump

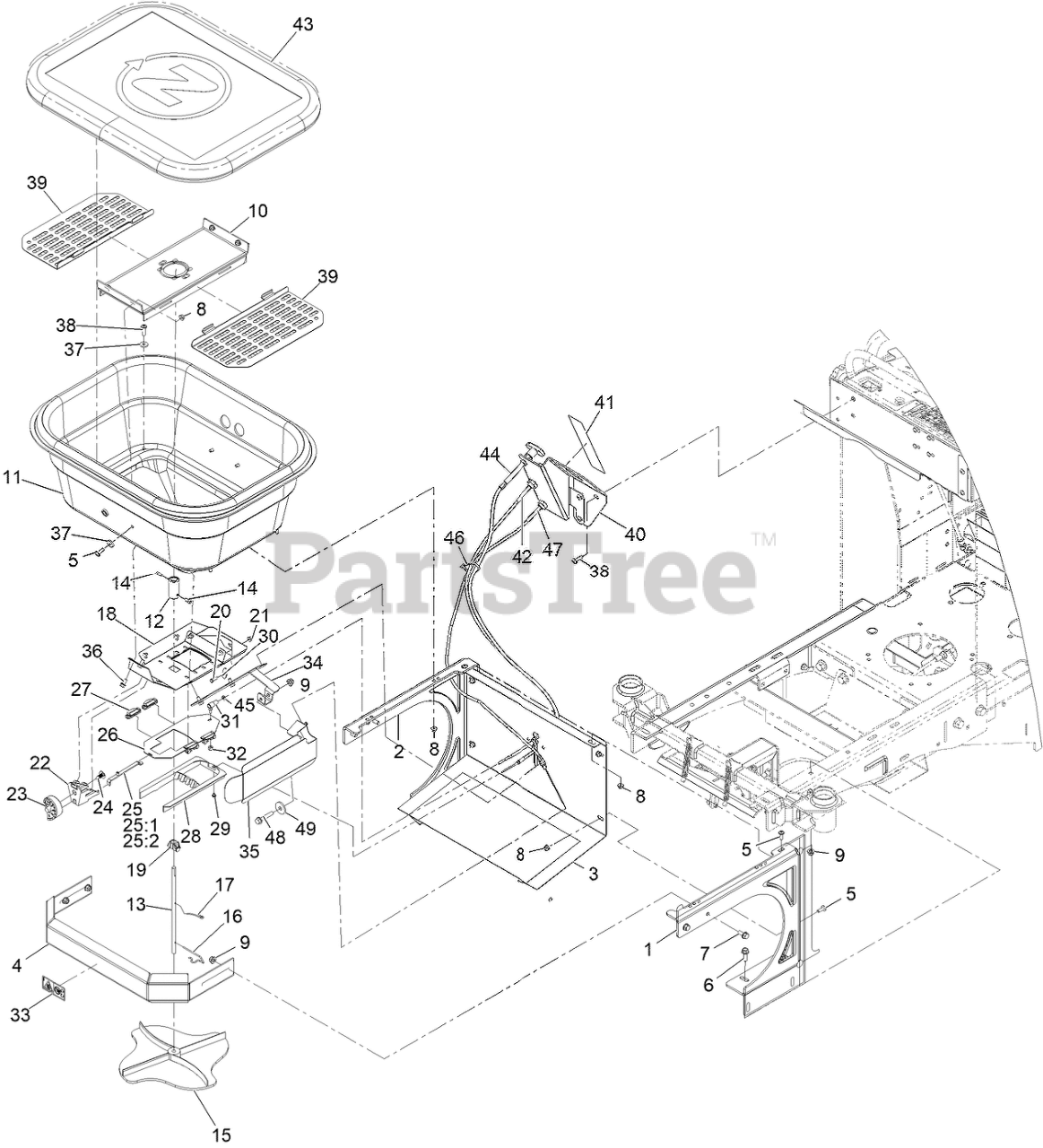

Spreader Assembly Parts Diagram

  • Title

1

Exmark 142-0784

WLD, FRAME, HOPPER, L, 120

$143.99

$

Usually ships in 3-6 days

0

2

Exmark 142-0785

WLD, FRAME, HOPPER, R, 120

$226.99

$

Usually ships in 3-6 days

0

3

Exmark 142-0708

BACKSHIELD, HOPPER, JR36

$150.99

$

Usually ships in 3-6 days

0

4

Exmark 142-0698

BUMPER, FRONT, HOPPER, 120

$63.99

$

In Stock, only 1 left!

0

5

Exmark 135-7080

Screw-Hsbhf

$3.49

$

In Stock, Qty 8

0

6

Exmark 135-6272

SCREW-HHF

$3.49

$

In Stock, Qty 10

0

7

Exmark 126-2712

SCREW-HHF

$5.49

$

In Stock, Qty 8

0

8

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

9

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 5

0

10

Exmark 142-1987

PAN, HOPPER, 120

$55.99

$

Usually ships in 3-6 days

0

11

Exmark 142-5845

HOPPER-120LB

$419.99

$

Usually ships in 3-6 days

0

12

Exmark 135-5937

COUPLER-SS

$28.99

$

In Stock, only 2 left!

0

13

Exmark 142-3726

SHAFT-HOPPER, 120

$26.99

$

In Stock, only 1 left!

0

14

Exmark 3241-7

Screw-SQH

$3.99

$

In Stock, only 2 left!

0

15

Exmark 142-3506

Spinner-Spreader

$41.99

$

In Stock, only 2 left!

0

16

Exmark 142-3541

Clip-Spinner

$10.99

$

In Stock, only 2 left!

0

17

Exmark 142-3666

WIRE-AGITATOR

$3.99

$

In Stock, only 1 left!

0

18

Exmark 142-5847

BASE PLATE, HOPPER, 120

$48.99

$

Usually ships in 3-6 days

0

19

Exmark 142-4042

HOPPER BOTTOM BEARING

$1.99

$

In Stock, only 1 left!

0

20

Exmark 135-6356

SCREW-HH

$1.99

$

In Stock, Qty 14

0

21

Exmark 135-6342

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

22

Exmark 142-3319

MOUNT-DIAL

$3.49

$

In Stock, Qty 6

0

23

Exmark 142-3359

Dial

$11.99

$

In Stock, Qty 7

0

24

Exmark 88-1080

Footpad Fastener

$9.49

$

In Stock, only 3 left!

0

25

Exmark 126-2659

RATE GATE LINK ASM

$27.99

$

In Stock, only 1 left!

0

25:1

Exmark 126-0987

LINK-GATE, RATE

$35.99

$

In Stock, only 1 left!

0

25:2

Exmark 126-4196

SCREW-SHOULDER, SLOTTED

$10.99

$

In Stock, only 2 left!

0

26

Exmark 142-5905

Slide-Door, Hopper

$17.99

$

Usually ships in 3-6 days

0

27

Exmark 142-3316

GUIDE-RATE, GATE

$1.99

$

In Stock, Qty 7

0

28

Exmark 142-3406

DIFFUSER

$7.99

$

Usually ships in 3-6 days

0

29

Exmark 142-3886

WIRE-STOP

$3.99

$

Usually ships in 3-6 days

0

30

Exmark 135-5569

RETAINER, CABLE

$1.99

$

In Stock, only 2 left!

0

31

Exmark 135-5682

BALL JOINT-SS

$49.99

$

Usually ships in 3-6 days

0

32

Exmark HDW05856

Nut,NYL Lock,#10-32,ST/ST 18-8

$1.49

$

In Stock, Qty 6

0

33

Exmark 135-6725

Decal-Dismemberment Hazard

$3.99

$

Usually ships in 3-6 days

0

34

Exmark 142-5102

MOUNT-DEFLECTOR, SIDE

$15.99

$

Usually ships in 3-6 days

0

35

Exmark 142-5103

Deflector-Side, Spreader

$45.99

$

Usually ships in 3-6 days

0

36

Exmark 135-6280

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

37

Exmark 135-6341

Washer

$1.99

$

Usually ships in 3-6 days

0

38

Exmark 135-7081

Screw-Hsbhf

$3.49

$

Usually ships in 3-6 days

0

39

Exmark 142-1995

SCREEN, HOPPER, 120

$26.99

$

Usually ships in 3-6 days

0

40

Exmark 142-3957-05

Mount-Speedometer

$56.99

$

Usually ships in 3-6 days

0

41

Exmark 142-3958

Decal-Hopper Control

$6.49

$

Usually ships in 3-6 days

0

42

Exmark 135-5931

CABLE-PUSH/PULL

$57.99

$

In Stock, only 2 left!

0

43

Exmark 142-6116

COVER-HOPPER, SMALL

$92.99

$

Usually ships in 3-6 days

0

44

Exmark 135-8492

120LB HOPPER CABLE

$96.99

$

In Stock, only 1 left!

0

45

Exmark 520-0019

Nut,Hex Jam Mch Scr,10-32,Sst

$0.99

$

In Stock, only 1 left!

0

46

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

47

Exmark 142-3925

Cable-Control, Turn Lock 2.00 Trvl

$57.99

$

Usually ships in 3-6 days

0

48

Exmark 135-5779

Screw-HHF

$3.49

$

Usually ships in 3-6 days

0

49

Exmark 107675

WASHER

$3.49

$

In Stock, Qty 18

0
