ZS3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5 GPM Pump (SN: 408644346 - 411294211) (Rev B) (2021) Park Brake Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5 GPM Pump

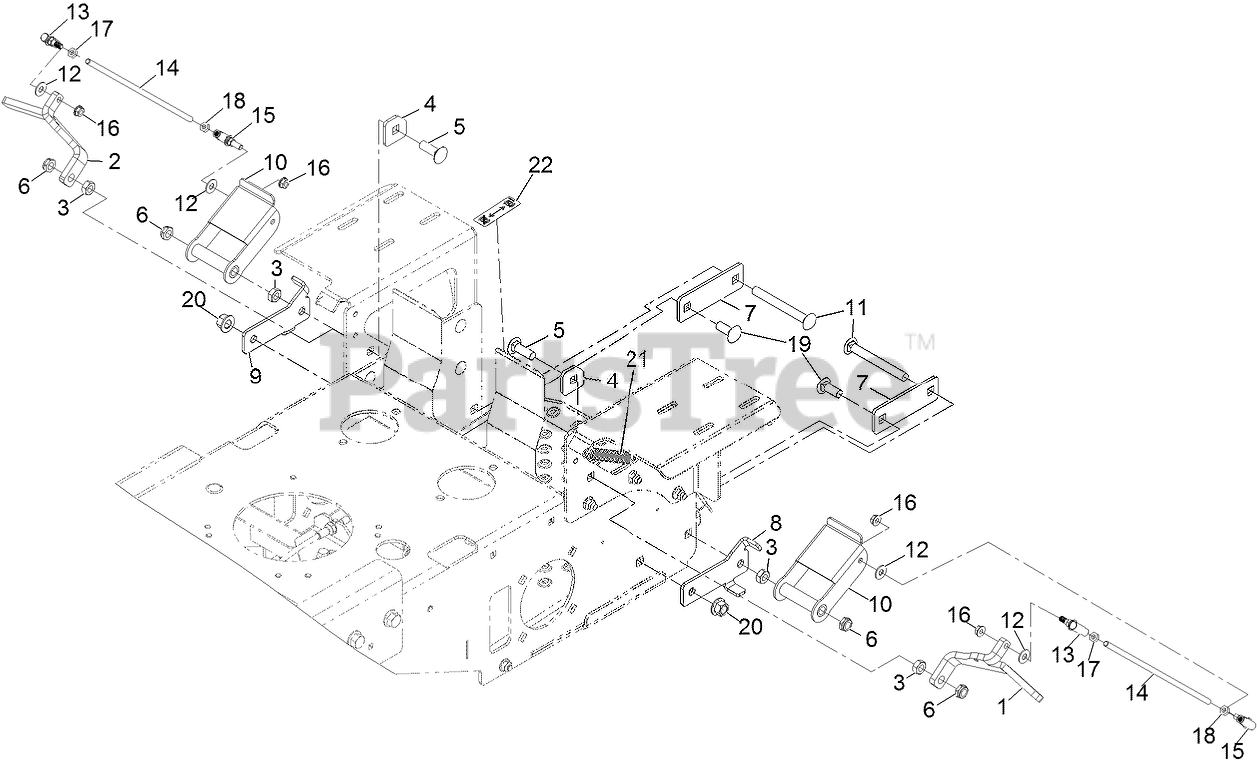

Park Brake Assembly Parts Diagram

  • Title
1

Exmark 142-0703-03

CHOCK, L, BRAKE, JR36

$38.99

$

Usually ships in 3-6 days

0

2

Exmark 142-0704-03

CHOCK, L, BRAKE, JR36, MS, 0.375

$38.99

$

Usually ships in 3-6 days

0

3

Exmark 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

4

Exmark 142-0732

BACKPLATE, BRAKE MOUNT, JR36

$3.49

$

Usually ships in 3-6 days

0

5

Exmark 3233-2

Screw-CARR

$7.99

$

Usually ships in 3-6 days

0

6

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

7

Exmark 142-0733

BACKPLATE, BRAKE PEDAL, JR36

$9.49

$

Usually ships in 3-6 days

0

8

Exmark 142-0730

STOP, FOOT PEDAL, BRAKE, JR36

$15.99

$

Usually ships in 3-6 days

0

9

Exmark 142-0731

STOP, JR36 FOOT PEDAL BRA

$15.99

$

Usually ships in 3-6 days

0

10

Exmark 142-0794

WLD, FOOT PEDAL, BRAKE, J

$31.99

$

Usually ships in 3-6 days

0

11

Exmark 3233-7

Screw-CARR

$19.99

$

Usually ships in 3-6 days

0

12

Exmark HDW14535

FLAT WASHER, 5/16 NOM,ST

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 135-9812

3/8-24 SS BALL JOINT\N367

$17.99

$

Usually ships in 3-6 days

0

14

Exmark 142-3043

LINKAGE-BRAKE, PARK

$18.99

$

Usually ships in 3-6 days

0

15

Exmark 135-5257

Balljoint-SS

$17.99

$

Usually ships in 3-6 days

0

16

Exmark 107-0380

Nut-HHF

$5.49

$

Usually ships in 3-6 days

0

17

Exmark 107-0282

Nut-Hex

$0.99

$

Usually ships in 3-6 days

0

18

Exmark 135-6512

Nut-Hex

$0.99

$

Usually ships in 3-6 days

0

19

Exmark 3233-1

Screw-CARR

$8.49

$

Usually ships in 3-6 days

0

20

Exmark 135-6111

NUT-HEX FLANGE

$6.49

$

Usually ships in 3-6 days

0

21

Exmark 126-2127

SPRING-EXTENSION

$7.99

$

In Stock, only 2 left!

0

22

Exmark 115-9625

DECAL-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0
