ZS3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5 GPM Pump (SN: 406294345 - 408644345) (Rev A) (2020) Wheel Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5 GPM Pump

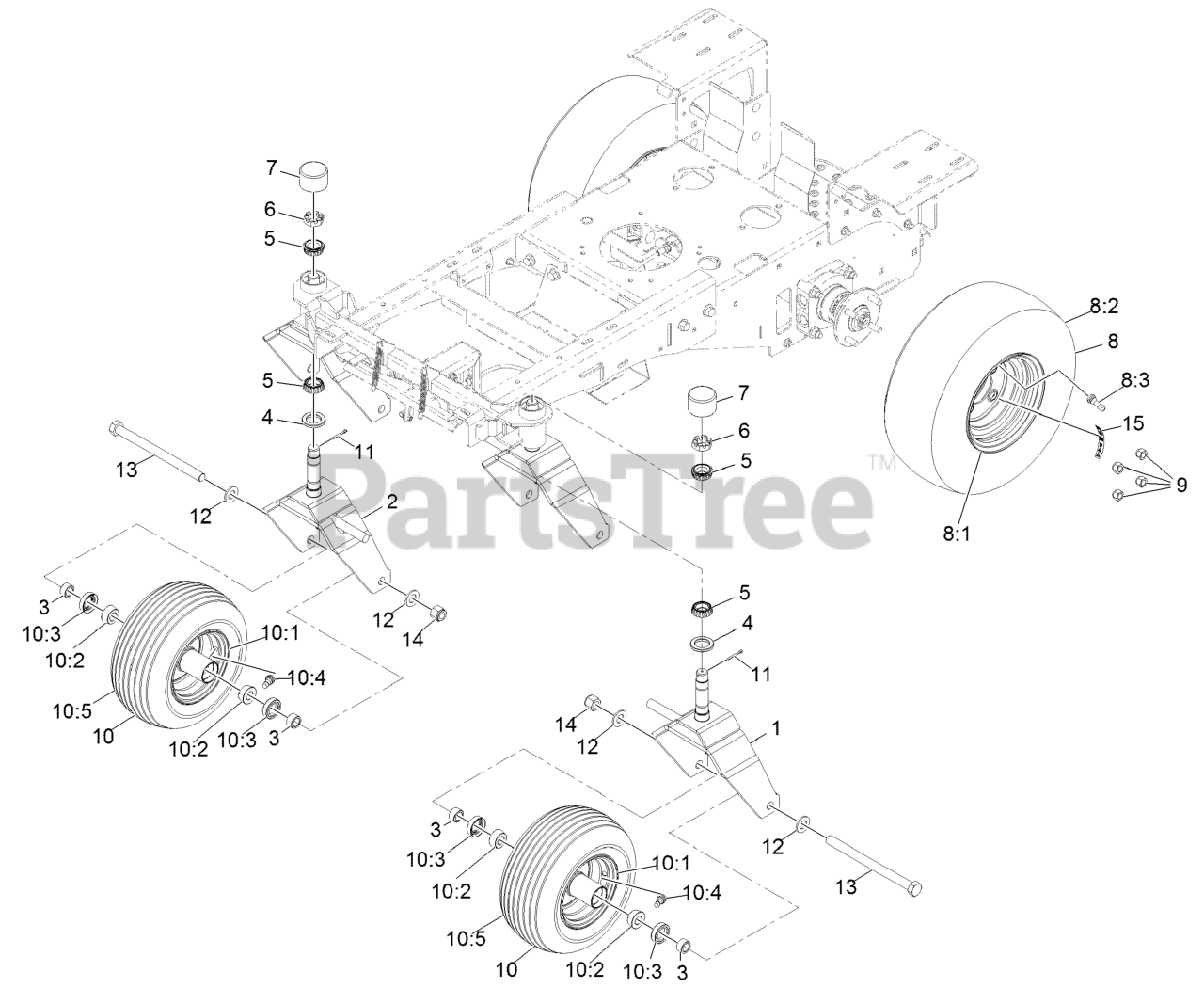

Wheel Assembly Parts Diagram

  • Title

1

Exmark 142-0918-01

Wld, Caster, L, Jr36, 36R

$211.99

$

Usually ships in 3-6 days

0

2

Exmark 142-0919-01

Wld, Caster, R, Jr36, 36R

$211.99

$

Usually ships in 3-6 days

0

3

Exmark 135-5683

SPACER-AXLE

$2.99

$

In Stock, Qty 20+

0

4

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

5

Exmark 254-92

CONE-BEARING, OUTER

$18.99

$

In Stock, Qty 16

0

6

Exmark 1-809082

NUT-SHH

$14.99

$

In Stock, Qty 6

0

7

Exmark 135-5756

CAP-DUST, RUBBER

$3.49

$

In Stock, Qty 17

0

8

Exmark 135-8621

TIRE/RIM ASM, K500-4H-BLK
(Superseded to 142-5511)

$150.99

$

Usually ships in 3-6 days

0

8:1

Exmark 135-6679

RIM-8X5.375, CENTERED

$59.99

$

Usually ships in 3-6 days

0

8:2

Exmark 126-1618

TIRE

$160.99

$

In Stock, only 1 left!

0

8:3

Exmark 232-27

Stem-Valve

$

$

Not available

9

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

10

Exmark 135-8615

TIRE, FRONT, ZPLUG,J36,36
(Superseded to 142-5510)

$148.99

$

Usually ships in 3-6 days

0

10:1

Exmark 135-6680

RIM-6 X 4.5

$88.99

$

Usually ships in 3-6 days

0

10:2

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 20+

0

10:3

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 20+

0

10:4

Exmark 5108

VALVE

$6.99

$

In Stock, Qty 14

0

10:5

Exmark 135-6681

TIRE-RIB

$59.99

$

Usually ships in 3-6 days

0

11

Exmark 135-6292

Pin-Cotter

$1.99

$

In Stock, only 3 left!

0

12

Exmark 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

13

Exmark 135-6300

SCREW-HH

$15.99

$

In Stock, Qty 18

0

14

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

15

Exmark 126-2055

DECAL-TORQUE, WHEEL HUB LUG

$6.49

$

In Stock, Qty 11

0
