ZS3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5 GPM Pump (SN: 406294345 - 408644345) (Rev A) (2020) Boom Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5 GPM Pump

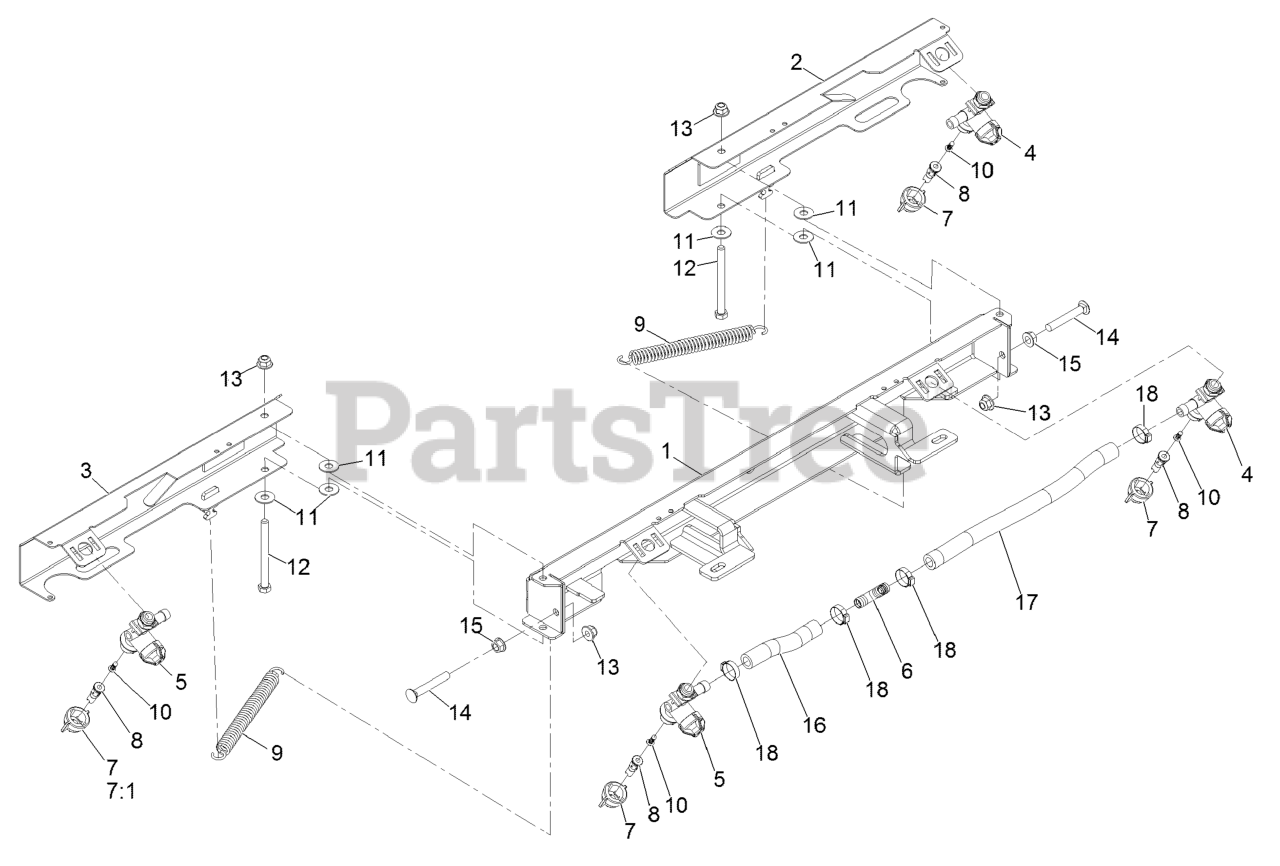

Boom Assembly Parts Diagram

  • Title

1

Exmark 135-6798

BOOM-CENTER

$97.99

$

Usually ships in 3-6 days

0

2

Exmark 135-6800

BOOM-WING, RT

$85.99

$

Usually ships in 3-6 days

0

3

Exmark 135-6799

BOOM-WING, LT

$85.99

$

Usually ships in 3-6 days

0

4

Exmark 135-5790

BODY-NOZZLE, RIGHT

$11.99

$

In Stock, only 2 left!

0

5

Exmark 135-5788

BODY-NOZZLE, LEFT

$11.99

$

In Stock, only 2 left!

0

6

Exmark 138-2751

FITTING-TEE, BARB

$16.99

$

In Stock, Qty 7

0

7

Exmark 135-5781

CAP-NOZZLE

$9.49

$

In Stock, Qty 5

0

7:1

Exmark 40998

SEAT-GASKET

$1.49

$

In Stock, Qty 20+

0

8

Exmark 142-3308

TIP-SPRAY, 025

$23.99

$

In Stock, Qty 5

0

9

Exmark 135-5780

SPRING-EXTENSION

$25.99

$

Usually ships in 3-6 days

0

10

Exmark 126-3943

STRAINER-NOZZLE, 50M 5PSI

$21.99

$

In Stock, Qty 20+

0

11

Exmark 1126

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

12

Exmark 135-6310

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

13

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 5

0

14

Exmark 126-0702

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

15

Exmark 135-6806

Nut-Hex Flange

$1.99

$

Usually ships in 3-6 days

0

16

Exmark 135-6298

Hose-Spray

$4.99

$

Usually ships in 3-6 days

0

17

Exmark 135-7129

Hose-Spray

$9.49

$

Usually ships in 3-6 days

0

18

Exmark 135-5692

CLAMP-OETIKER, 167

$1.99

$

In Stock, Qty 5

0
