ZMT 2500KH (84414) - Snapper Zero-Turn Mower, 25hp Caster Wheel Assembly Parts Diagram

Zero-Turn Mower, 25hp

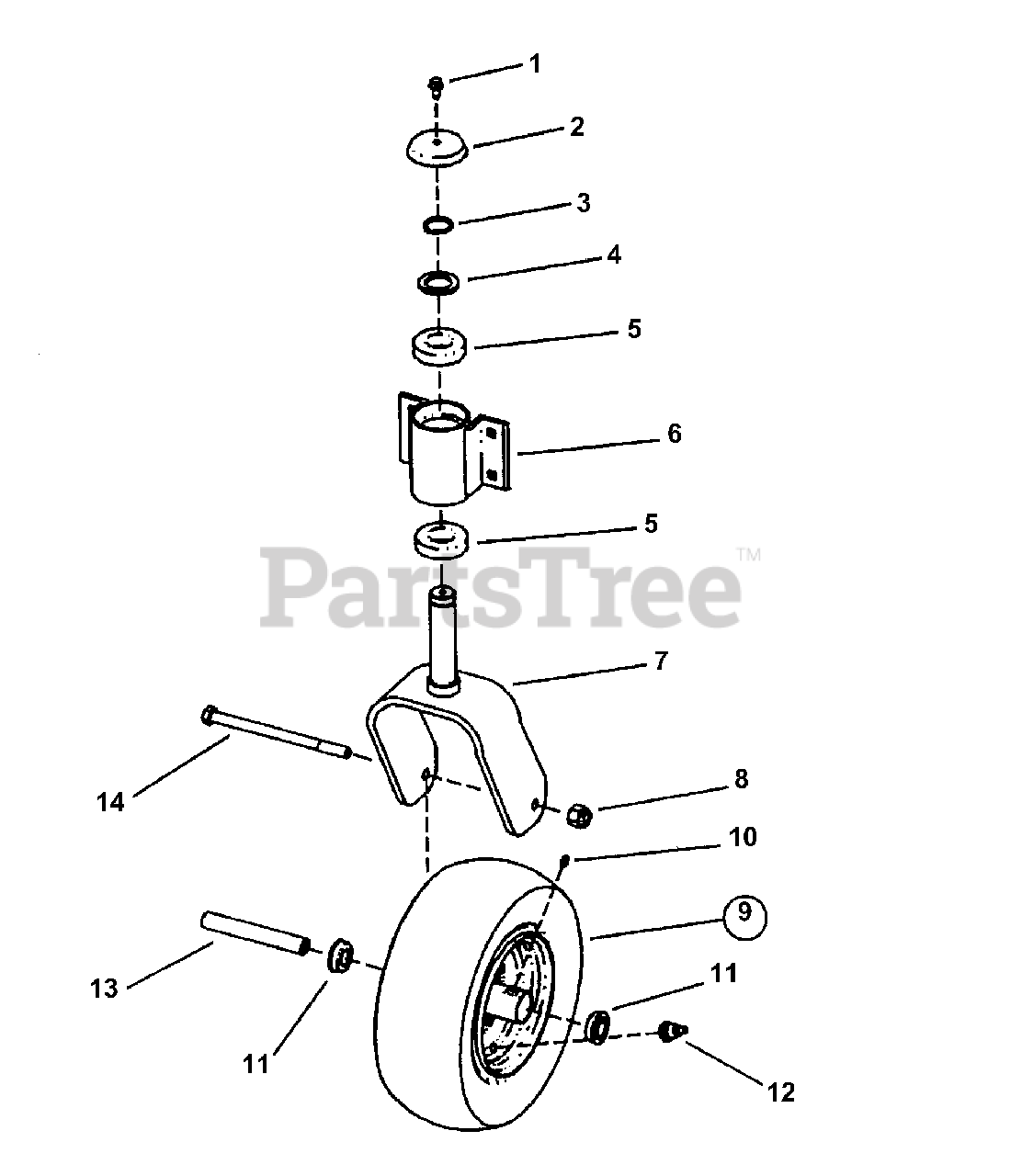

Caster Wheel Assembly Parts Diagram

  • Title

1

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Flange Self Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

2

Snapper 7036578

CAP, Caster Shaft
(Superseded to 7036578YP)

$30.99

$

Usually ships in 2-12 days

0

3

Snapper 7010965

RING, 1-3/16" External Retaining
(Superseded to 7010965YP)

$4.49

$

In Stock, Qty 6

0

4

Snapper 7091795

WASHER, 1-1/4" Flat
(Superseded to 7091795YP)

$5.49

$

Usually ships in 2-12 days

0

5

Snapper 7035602

BEARING, 30mm x 62mm
(Superseded to 7035602YP)

$27.99

$

Usually ships in 2-12 days

0

6

Snapper 7042590

WELDMENT, Caster Support
(Superseded to 7061966YP)

$1082.99

$

Usually ships in 2-12 days

0

Snapper 7058760

WELDMENT, Caster Support (5 degree)
(Superseded to 7058760YP)

Note: (Used on model ZMT2500KH only)

$148.99

$

Usually ships in 2-12 days

0

7

Snapper 7042591

WELDMENT, Caster Yoke
(Superseded to 7042591YP)

$182.99

$

In Stock, only 1 left!

0

8

Snapper 7091325

NUT, 1/2-13 Hex Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

9

Snapper 7054087

ASSEMBLY, Tire & Rim

Note: (Includes items 10 thru 12)

$

$

Not available

10

Snapper 7076998

FITTING, Lube
(Superseded to 703153)

Note: Was 12700

$3.99

$

In Stock, Qty 12

0

11

Snapper 7028722

BEARING
(Superseded to 7028722YP)

$29.99

$

In Stock, Qty 9

0

12

Snapper 7012234

VALVE, Air
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

13

Snapper 7035476

SLEEVE, Axle
(Superseded to 7035476YP)

$31.99

$

In Stock, only 1 left!

0

14

Snapper 5025017X56

BOLT, HEX, 1/2-13 X 7, GD 8, YZ
(Superseded to 5025017X56YP)

$14.99

$

In Stock, Qty 8

0
