ZMT 2500KH (7084414) - Snapper Zero-Turn Mower, 25hp Twin Stick Control Assembly Parts Diagram

Zero-Turn Mower, 25hp

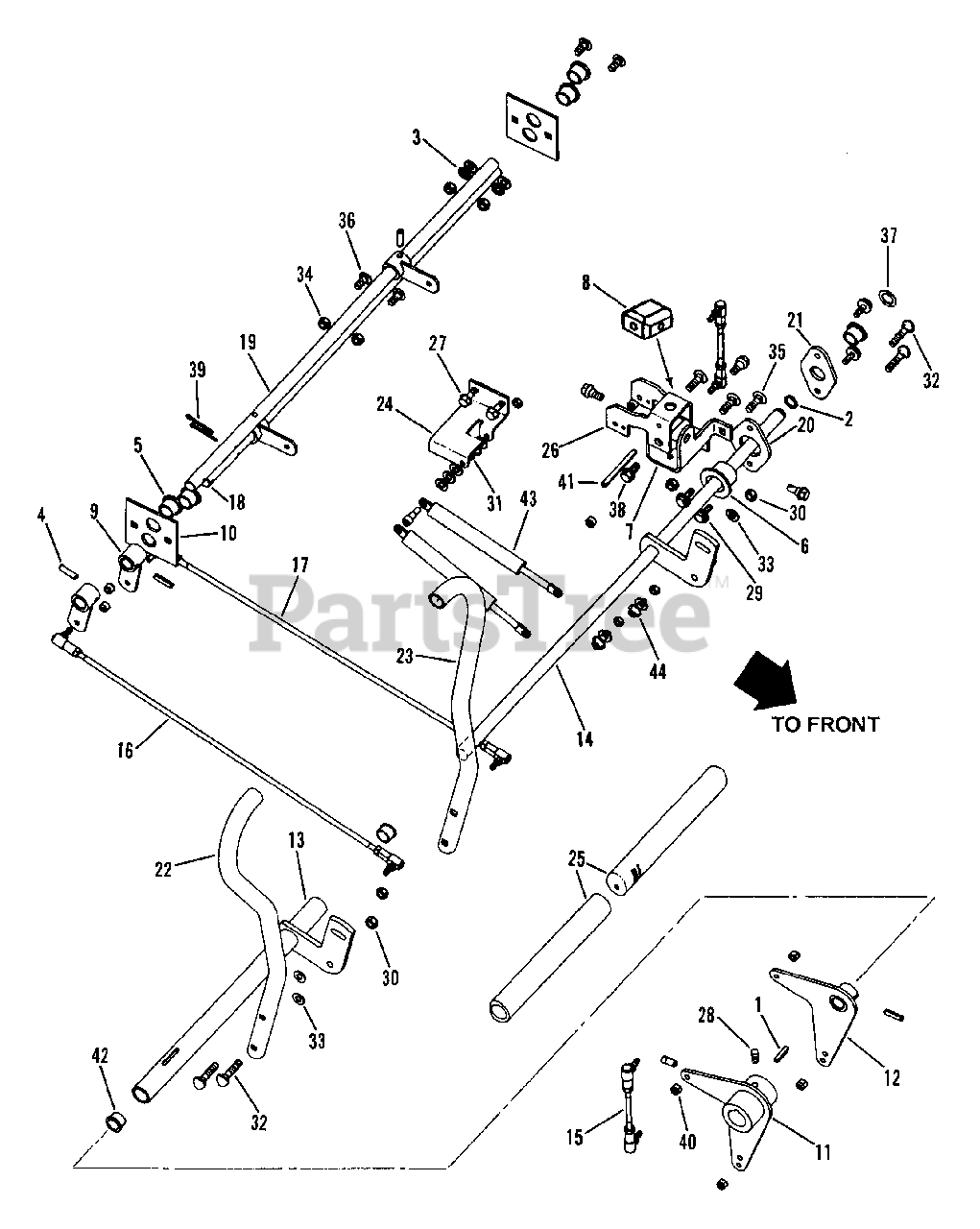

Twin Stick Control Assembly Parts Diagram

  • Title

1

Snapper Pro 7010061

KEY, 3/16" Square x 1"
(Superseded to 7010061SM)

$4.49

$

Usually ships in 2-12 days

0

2

Snapper Pro 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

3

Snapper Pro 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

4

Snapper Pro 7013072

ROLL PIN, 1/4" x 1"

$3.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 7013874

BUSHING, 5/8 I.D. x 5/8"

$5.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 7023556

BUSHING, Caster
(Superseded to 7023556YP)

$8.49

$

In Stock, Qty 20+

0

7

Snapper Pro 7035532

BRACKET, Joystick Mounting
(Superseded to 7035532YP)

$37.99

$

In Stock, only 3 left!

0

8

Snapper Pro 7035533

BLOCK, Pivot
(Superseded to 7035533YP)

$22.99

$

In Stock, only 2 left!

0

9

Snapper Pro 7042638

WELDMENT, Arm/Hub
(Superseded to 7042638YP)

$43.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7073060

PLATE, Bushing, Hydro Shaft

$9.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7058108

WELDMENT, R. H. Control Bellcrank
(Superseded to 7058108YP)

$94.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 7058109

WELDMENT, L. H. Control Bellcrank
(Superseded to 7058109YP)

$66.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7058110

WELDMENT, R. H. Control
(Superseded to 7058110YP)

$95.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 7058111

WELDMENT, L. H. Control

$

$

Not available

15

Snapper Pro 7058115

ASSEMBLY, Ball Joint Link 5.12"

Note: Includes 7-1970 (Rod), 1-5753 Ball Joint & 9-1605 Hex Nut

$

$

Currently unavailable

16

Snapper Pro 7058116

ASSEMBLY, Ball Joint Link 20.4"

Note: Includes 7-1971 (Rod), 1-5753 Ball Joint & 9-1605 Hex Nut

$

$

Currently unavailable

17

Snapper Pro 7058117

ASSEMBLY, Ball Joint Link 20.56"

Note: Includes 7-1971 (Rod), 1-5753 Ball Joint & 9-1605 Hex Nut

$

$

Currently unavailable

18

Snapper Pro 7071944

HYDRO SHAFT, L.H.

$

$

Currently unavailable

19

Snapper Pro 7071945

HYDRO SHAFT, R.H.

$

$

Currently unavailable

20

Snapper Pro 7071959

PLATE, R.H. Bearing

$

$

Not available

21

Snapper Pro 7073061

PLATE, L.H. Bearing (Twin-Stick Z Mower)

$

$

Currently unavailable

22

Snapper Pro 7071964

ARM, R.H. Twin Stick Control
(Superseded to 7071964YP)

$41.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 7072022

ARM, L.H. Twin Stick Control
(Superseded to 7072022YP)

$45.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 7072047

BRACKET, Dampener Mounting
(Superseded to 7072047YP)

$10.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 7072212

GRIP, Twin Stick

$

$

Currently unavailable

26

Snapper Pro 7072442

BRACKET, Joystick Control
(Superseded to 7072442YP)

$48.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

28

Snapper Pro 7090848

SET SCREW, 5/16-18 x 1/2" Square Head Cup Point
(Superseded to 7090848SM)

$10.99

$

In Stock, only 1 left!

0

29

Snapper Pro 7090741

SCREW, 1/4-20 x 5/8" Hex Head Self-Tap

Note: Was 91016

$

$

Currently unavailable

30

Snapper Pro 7091575

NUT, 5/16-18 Hex Center Lock, Grade 8
(Superseded to 703164)

Note: Was 91067

$3.49

$

In Stock, Qty 18

0

31

Snapper Pro 7090372

NUT, 1/4-20 Hex Center Lock, Grade 5 or B

Note: Was 91099

$

$

Not available

32

Snapper Pro 7091190

BOLT, 5/16-18 x 1-1/2" Curved Head Square Neck
(Superseded to 704063)

$5.49

$

In Stock, Qty 5

0

33

Snapper Pro 7090188

WASHER, .34 I.D. Flat

Note: Was 91296

$

$

Not available

34

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 7091303

BOLT, 5/16-18 x 1" Round Head Short Neck Carriage, Grade 5

$

$

Not available

36

Snapper Pro 7091508

BOLT, 5/16-18 x 3/4" Round Hd. Short Neck Carriage, Grade 5

$

$

Not available

37

Snapper Pro 7091628

WASHER, 5/8" I.D. Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, only 3 left!

0

38

Snapper Pro 7091800

BOLT, 5/16-18 Shoulder

$

$

Not available

39

Snapper Pro 7091809

COTTER PIN, 1/8 x 1-1/4"
(Superseded to 7091809YP)

$4.49

$

Usually ships in 2-12 days

0

40

Snapper Pro 7091812

NUT, 1/4-28 Hex Nyloc

$3.49

$

In Stock, Qty 13

0

41

Snapper Pro 7091816

ROLL PIN, 1/4 x 2-3/4"

$2.99

$

Usually ships in 2-12 days

0

42

Snapper Pro 7072934

BUSHING, .632 I.D. x .753 O.D. Teflon Impregnated

$7.99

$

Usually ships in 2-12 days

0

43

Snapper Pro 7092009

CYLINDER, Dampener
(Superseded to 7092009YP)

$91.99

$

Usually ships in 2-12 days

0

44

Snapper Pro 7092010

BOLT, 1/4-20 Socket Head Shoulder
(Superseded to 7092010YP)

$3.49

$

Usually ships in 2-12 days

0
