ZMT 2500KH (7084326) - Snapper Zero-Turn Mower, 25hp Drive Tire/Wheel Assembly Parts Diagram

Zero-Turn Mower, 25hp

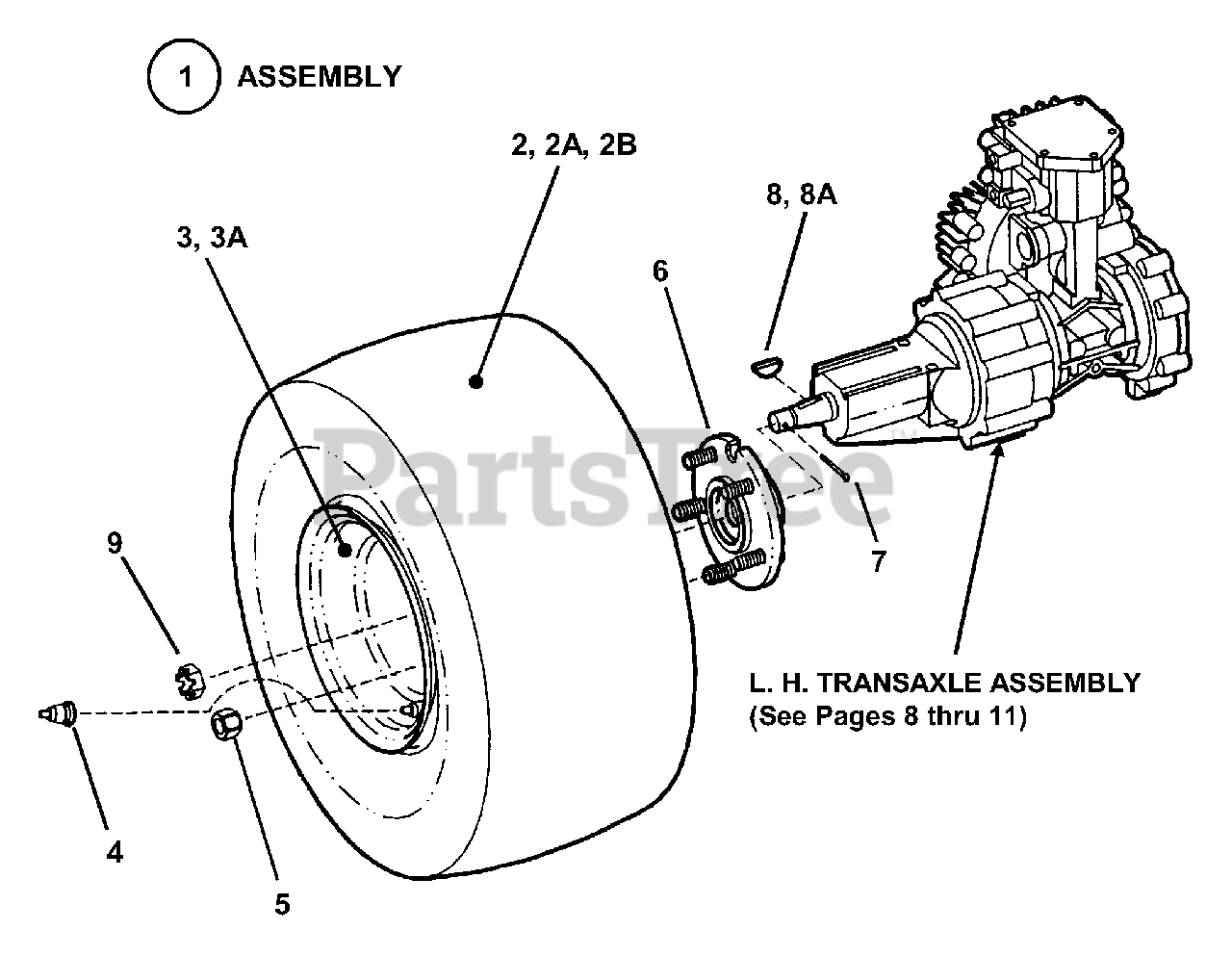

Drive Tire/Wheel Assembly Parts Diagram

  • Title
1

Snapper Pro 7054526

ASSEMBLY, Rear Tire & Rim
(Superseded to 7054526YP)

Note: (Includes Item 2, 3 & 4)

$330.99

$

Usually ships in 2-12 days

0

Snapper Pro 7057706

ASSEMBLY, Rear Tire & Rim (Left Hand) (Model MZM2200KH Only)
(Superseded to 7057706YP)

Note: (Includes Item 2A, 3A & 4)

$262.99

$

Usually ships in 2-12 days

0

Snapper Pro 7057707

ASSEMBLY, Rear Tire & Rim (Right Hand) (Model MZM2200KH Only)

Note: (Includes Item 2A, 3A & 4)

$245.99

$

Usually ships in 2-12 days

0

Snapper Pro 7058193

ASSEMBLY, Rear Tire & Rim

Note: (Includes Item 2B, 3 & 4) (Model ZMT2500KH & ZM2501KH)

$

$

Currently unavailable

Snapper Pro 7059161

ASSEMBLY, Rear Tire & Rim

Note: (Includes Item 2C, 3 & 4) (Model ZM2502KH)

$

$

Not available

2

Snapper Pro 7074157

TIRE, 23 x 10.5 - 12 NHS
(Superseded to 7074157YP)

Note: Was 44771

$267.99

$

Usually ships in 2-12 days

0

2A

Snapper Pro 7044707

TIRE, 21 x 11 - 8 AG (Model MZM2200KH Only)

$

$

Not available

2B

Snapper Pro 7072110

TIRE, 23 x 10.5 - 12 "Turf Mate"
(Superseded to 7074157YP)

$267.99

$

Usually ships in 2-12 days

0

?2C

Snapper Pro 7074157

TIRE, 23 x 10.5 - 12 "Super Turf"
(Superseded to 7074157YP)

$267.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7044772

RIM, 12" Diameter x 7.00"

$

$

Currently unavailable

3A

Snapper Pro 7047032

RIM, 8" Diameter x 6-3/8 (Model MZM2200KH Only)
(Superseded to 7047032YP)

$210.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7012234

VALVE, Air
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 7027192

NUT, 1/2-20 Lug
(Superseded to 7027192SM)

$2.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 7054461

ASSEMBLY, Wheel Hub

$

$

Not available

7

Snapper Pro 7091793

PIN, 9/64 x 1-1/2" Cotter

$2.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7091778

KEY, #808 Woodruff
(Superseded to 7091778YP)

$3.49

$

Usually ships in 2-12 days

0

8A

Snapper Pro 7091978

KEY, #806 Woodruff (Model ZMT2500KH, ZM2501KH, ZM2502KH)
(Superseded to 7091978YP)

$4.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 7091828

NUT, 3/4-20 Slotted Hex

$

$

Not available
