ZM 6102M (84671) - Snapper 61" Mower Deck Assembly Deck, Idlers, Rollers (Part 2) Parts Diagram

61" Mower Deck Assembly

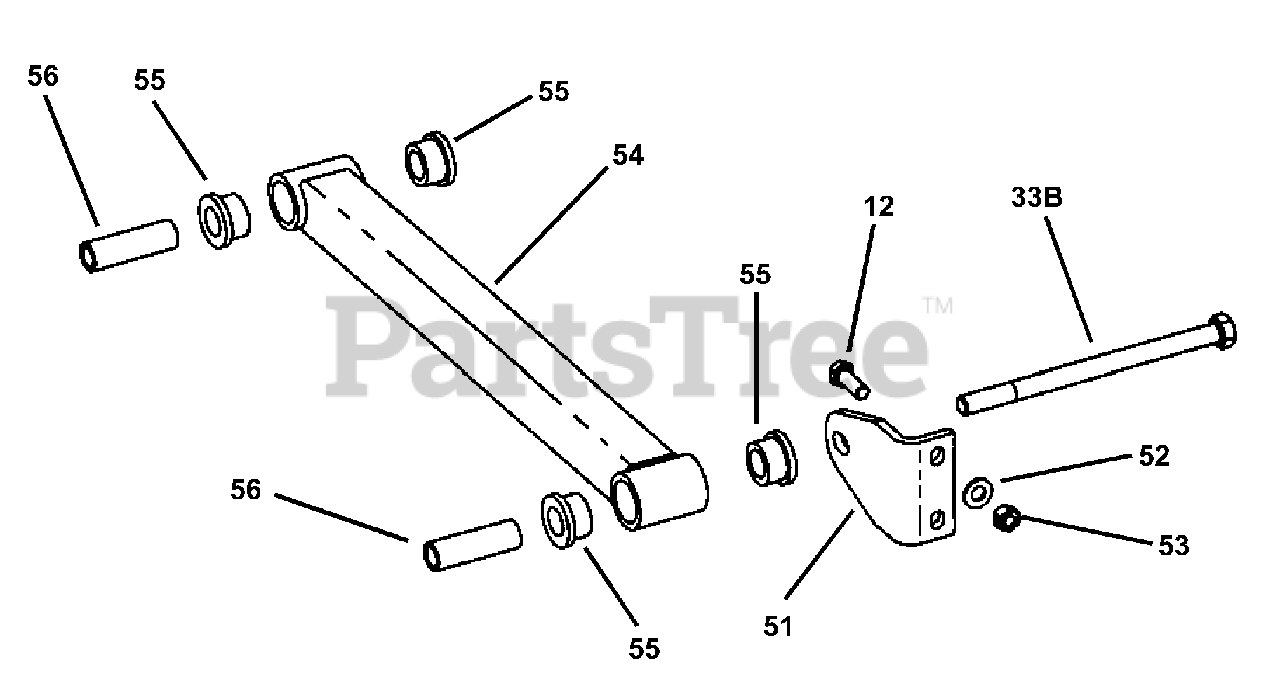

Deck, Idlers, Rollers (Part 2) Parts Diagram

  • Title

12

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

33B

Snapper 5025017X60

BOLT, 1/2-13 X 7-1/2" GD5 YZ
(Superseded to 5025488X60FS)

$13.99

$

Usually ships in 2-12 days

0

51

Snapper 7074155

BRACKET, Deck Stabilizer
(Superseded to 7074155YP)

$23.99

$

Usually ships in 2-12 days

0

52

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

53

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

54

Snapper 7059166

STRUCTURE, 61" Stabilizer Bar
(Superseded to 7059166YP)

$82.99

$

Usually ships in 2-12 days

0

55

Snapper 7029258

BUSHING, Suspension
(Superseded to 7029258YP)

$8.49

$

Usually ships in 2-12 days

0

56

Snapper 7029263

SLEEVE, Suspension
(Superseded to 7029263YP)

$24.99

$

In Stock, Qty 16

0
