ZM 5200M (7082474) - Snapper 52" Mower Deck Assembly Chute, Deck Covers & Baffle Parts Diagram

52" Mower Deck Assembly

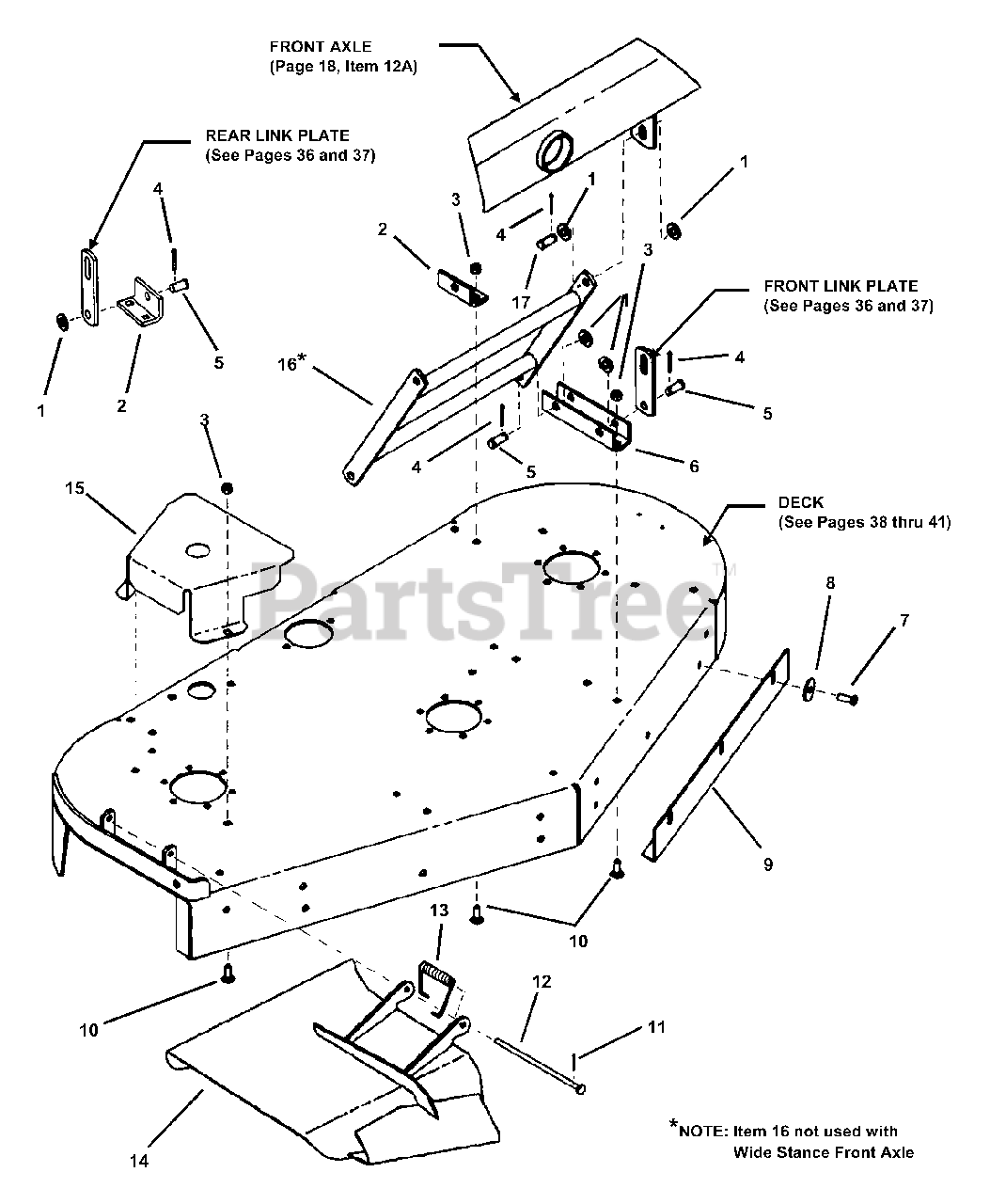

Chute, Deck Covers & Baffle Parts Diagram

  • Title

1

Snapper Pro 7091587

WASHER, 17/32 x 1-1/16 Flat

$

$

Not available

2

Snapper Pro 7043824

BRACKET, Rear Lift
(Superseded to 7043824YP)

$21.99

$

In Stock, only 2 left!

0

3

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

4

Snapper Pro 7091516

PIN, 5/32 x 1" Cotter

$

$

Not available

5

Snapper Pro 7091948

PIN, 1/2 x 23/32 Clevis

$4.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 7044670

BRACKET, Front Lift

$

$

Not available

7

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

8

Snapper Pro 7091331

WASHER, 13/32 x 1-1/2" Flat

$

$

Not available

9

Snapper Pro 7042914

BAFFLE, 52 Front
(Superseded to 7042914YP)

$39.99

$

Usually ships in 2-12 days

0

Snapper Pro 7036445

BAFFLE, 61 Front
(Superseded to 7036445YP)

$41.99

$

In Stock, only 1 left!

0

10

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Carriage
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

11

Snapper Pro 7091313

PIN, 3/32 x 1" Cotter

$

$

Not available

12

Snapper Pro 7029277

PIN, Chute Hinge
(Superseded to 7029277YP)

$40.99

$

In Stock, only 2 left!

0

13

Snapper Pro 7027950

SPRING, Chute
(Superseded to 7027950YP)

$

$

Not available

14

Snapper Pro 7044806

CHUTE, 52" Deck
(Superseded to 7044806YP)

Note: Was 42903 or 58285

$311.99

$

Usually ships in 2-12 days

0

Snapper Pro 7044806

CHUTE, 52" Deck (Euro)
(Superseded to 7044806YP)

$311.99

$

Usually ships in 2-12 days

0

Snapper Pro 7058291

CHUTE, 61" Deck
(Superseded to 7058291YP)

Note: Was 42656

$427.99

$

Usually ships in 2-12 days

0

Snapper Pro 7058291

CHUTE, 61" Deck (Euro)
(Superseded to 7058291YP)

$427.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 7044756

COVER, Spindle
(Superseded to 7044756YP)

$77.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 7045339

WELDMENT, Pull Bar

$

$

Not available

17

Snapper Pro 7012802

PIN, 1/2 x 1-1/8" Clevis
(Superseded to 7012802SM)

$5.99

$

In Stock, only 2 left!

0
