ZHD-L60 (17ANDALD897) - Columbia 60" Zero-Turn Mower (2016) Engine Accessories Parts Diagram

60" Zero-Turn Mower

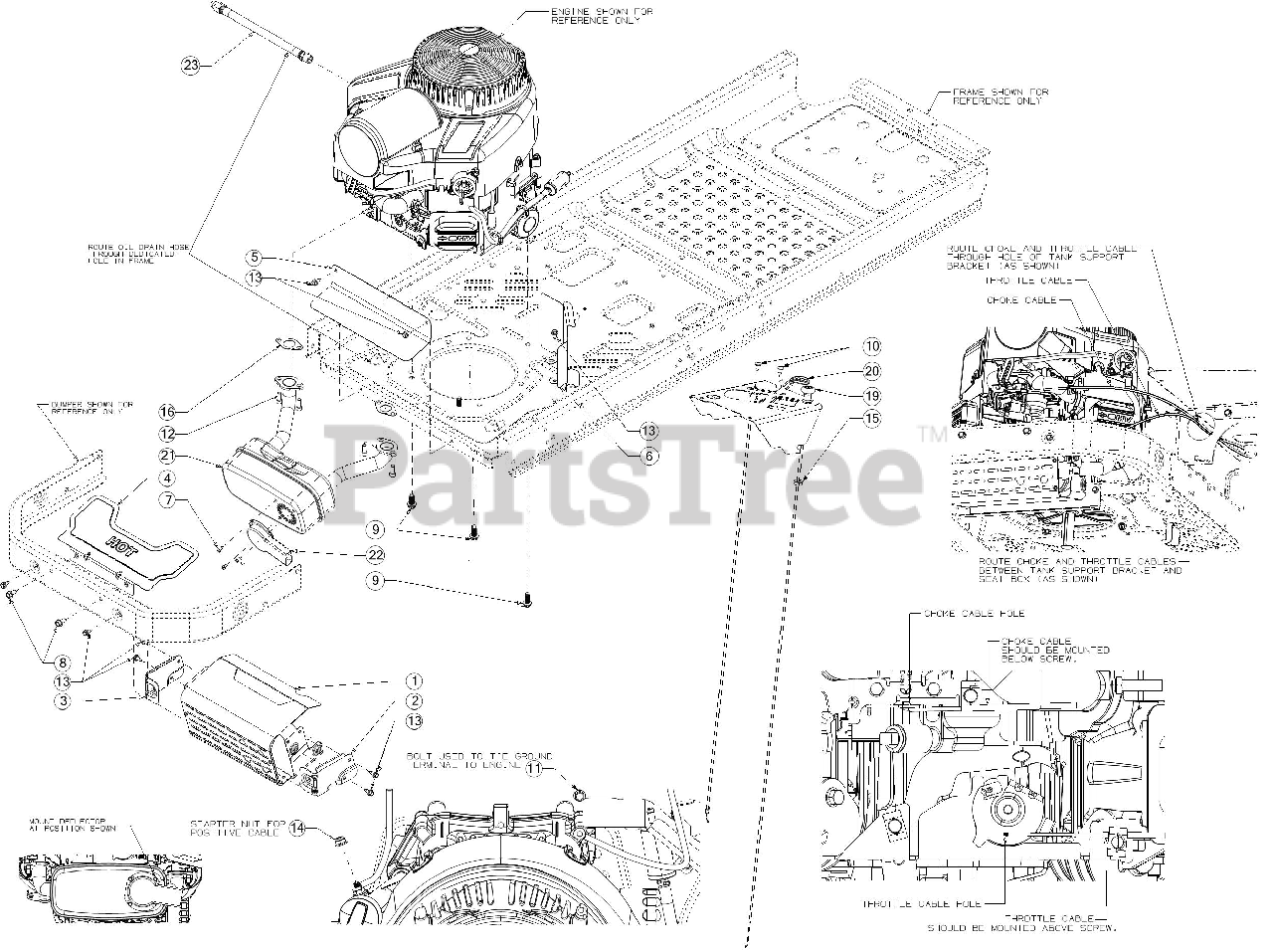

Engine Accessories Parts Diagram

  • Title

1

MTD 603-05156A-0637

MUFFLER SHIELD W/EXTENSION

$94.99

$

Usually ships in 3-6 days

0

1

MTD 683-04549C-0637

MUFFLER SHIELD (ONLY)
(Superseded to 683-05460A-0637)

Note: (Not Shown)

$80.99

$

Usually ships in 3-6 days

0

2

MTD 703-08671B-0637

MUFFLER SHIELD BRACKET (RH)

$8.49

$

Usually ships in 3-6 days

0

3

MTD 703-08695A-0637

MUFFLER SHIELD BRACKET (LH)

$8.49

$

Usually ships in 3-6 days

0

4

MTD 703-09083-0637

MUFFLER HEAT SHIELD

$31.99

$

In Stock, only 1 left!

0

5

MTD 703-09195

LOWER HEAT SHIELD

$18.99

$

Usually ships in 3-6 days

0

6

MTD 703-09611A

ENGINE HEAT SHIELD

$22.99

$

Usually ships in 3-6 days

0

7

MTD 710-0227

HEX SCREW WASHER HD #8-18 x 0.500

$4.49

$

In Stock, Qty 15

0

8

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-04683C

SCREW 3/8-16 x 1

$6.49

$

In Stock, only 3 left!

0

10

MTD 710-05070A

SCREW 1/4-20 x .5

$6.99

$

In Stock, Qty 7

0

11

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-1314A

SCREW 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

15

MTD 912-3005

HEX FLANGE NUT
(Superseded to 712-3005)

$6.99

$

Usually ships in 3-6 days

0

16

MTD 721-0460

MUFFLER GASKET
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

19

MTD 746-04235

CHOKE CABLE 47"

$48.99

$

Usually ships in 3-6 days

0

20

MTD 946-05256A

THROTTLE CABLE 36"

$60.99

$

In Stock, only 1 left!

0

21

MTD 951-10542A

EXHAUST MUFFLER(B&S)(TWIN)
(Superseded to 951-10542E)

$142.99

$

In Stock, only 2 left!

0

22

MTD 751-11053A

EXHAUST DELECTOR
(Superseded to 751-11053B)

$5.49

$

In Stock, only 3 left!

0

23

MTD 751-15324

OIL DRAIN HOSE
(Superseded to 751-15324A)

$

$

Not available
