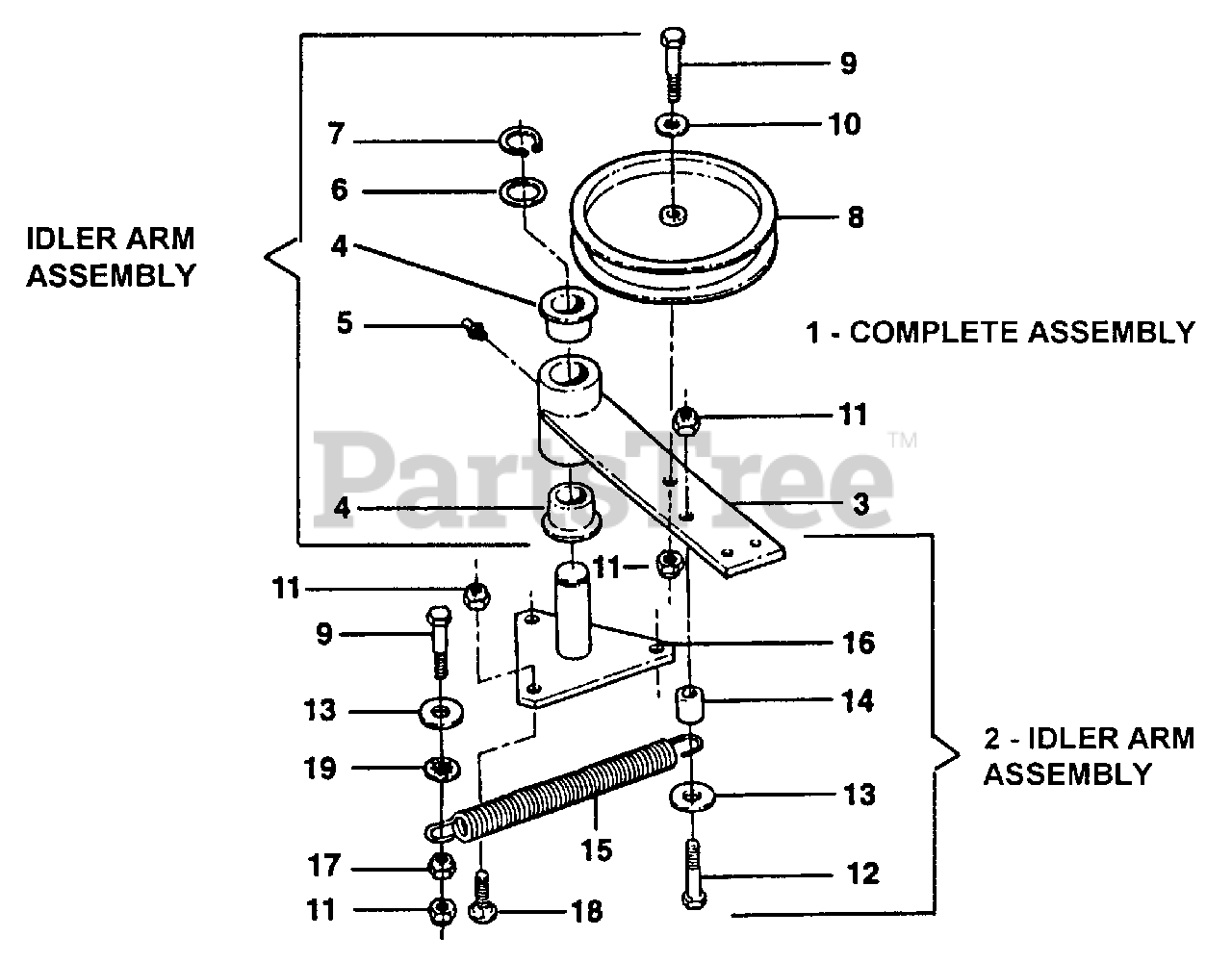

ZF 7301M (84278) - Snapper 73" Mower Deck Assembly Spring-Loaded Idler Group Parts Diagram

73" Mower Deck Assembly

Spring-Loaded Idler Group Parts Diagram

  • Title
1

Snapper 7054356

ASSEMBLY, Spring-Loaded Idler Group

Note: (Includes items 1 thru 18)

$

$

Currently unavailable

2

Snapper 7054248

ASSEMBLY, Idler Arm

Note: (Includes items 3 thru 14)

$

$

Currently unavailable

3

Snapper 7042619

ARM, Idler (Weldment)
(Superseded to 7042619YP)

$253.99

$

Usually ships in 2-12 days

0

4

Snapper 7023556

BUSHING
(Superseded to 7023556YP)

$8.49

$

In Stock, Qty 20+

0

5

Snapper 7076998

FITTING, 1/4-28 Straight
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

6

Snapper 7032031

WASHER, 1.031 x 1.25 x .03" Flat
(Superseded to 7032031YP)

$5.99

$

Usually ships in 2-12 days

0

7

Snapper 7012709

E-RING, 1"
(Superseded to 703993)

$3.49

$

In Stock, Qty 11

0

8

Snapper 7035789

PULLEY, 5 1/2" O.D.
(Superseded to 7035789YP)

$59.99

$

In Stock, Qty 5

0

9

Snapper 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

10

Snapper 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

Note: Was 91300

$3.99

$

In Stock, only 1 left!

0

11

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7091553

SCREW, 3/8-16 x 1 3/4" Hex Head Cap, Grade 5
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

13

Snapper 7091331

WASHER, .406 x 1.5 x .120" (YZ)
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

14

Snapper 7035858

SPACER, .50 I.D. x .75 O.D. x 83"
(Superseded to 7035858YP)

$32.99

$

Usually ships in 2-12 days

0

15

Snapper 7035667

SPRING, Extension
(Superseded to 7035667YP)

$32.99

$

In Stock, only 1 left!

0

16

Snapper 7041295

PIVOT, Idler (Weldment)
(Superseded to 7041295YP)

$44.99

$

Usually ships in 2-12 days

0

17

Snapper 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

18

Snapper 7091640

BOLT, 3/8-16 x 1" Carriage
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

19

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0
