ZF 7301M (84278) - Snapper 73" Mower Deck Assembly Rear Caster Assembly Parts Diagram

73" Mower Deck Assembly

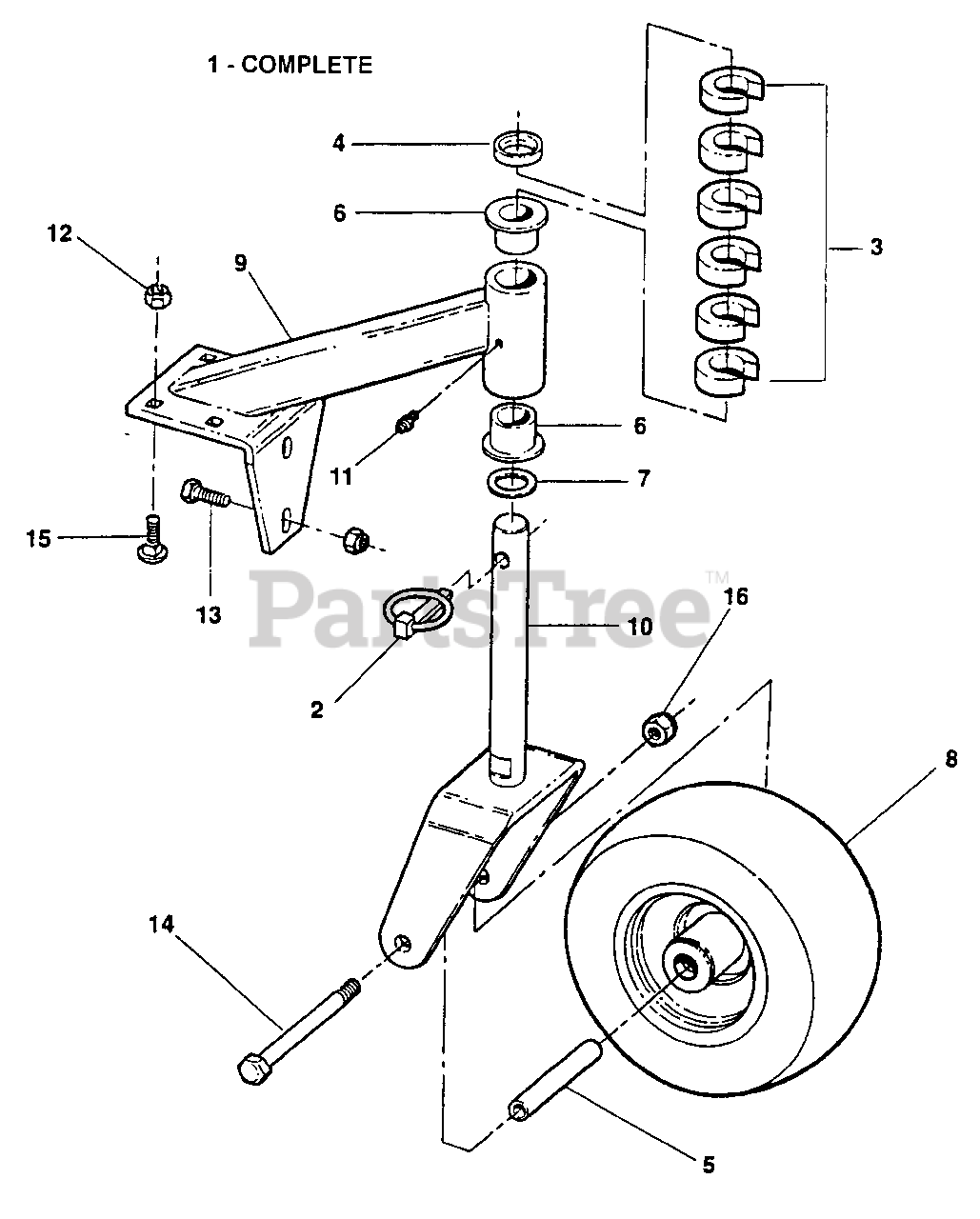

Rear Caster Assembly Parts Diagram

  • Title

1

Snapper 7057738

ASSEMBLY, Rear Caster, 73" OFZ Deck

Note: (Includes items 2 thru 16)

$

$

Currently unavailable

2

Snapper 7017711

PIN, 7/16" Lynch (HD)
(Superseded to 5020655SM)

$10.99

$

In Stock, only 2 left!

0

3

Snapper 7019152

SPACER, Caster
(Superseded to 7019152YP)

$7.49

$

In Stock, only 1 left!

0

4

Snapper 7028641

SPACER, 1" x 1 3/8 x .30" (PM)
(Superseded to 7028641YP)

Note: Was 21960

$

$

Not available

5

Snapper 7022151

SPACER, Axle Sleeve
(Superseded to 7022151YP)

$43.99

$

In Stock, only 1 left!

0

6

Snapper 7023556

BUSHING, Caster
(Superseded to 7023556YP)

$8.49

$

In Stock, Qty 20+

0

7

Snapper 7023747

BUSHING, 1" Machine
(Superseded to 7023747YP)

$5.49

$

In Stock, Qty 20+

0

8

Snapper 7058167

ASSEMBLY, Wheel/Tire, 9 x 3.50 - 4
(Superseded to 7058167YP)

Note: Was 29869

$120.99

$

Usually ships in 2-12 days

0

9

Snapper 7046515

SUPPORT, Caster (Weldment)
(Superseded to 7046515YP)

$182.99

$

Usually ships in 2-12 days

0

10

Snapper 7046523

YOKE, Caster (Weldment)
(Superseded to 7046523YP)

$170.99

$

Usually ships in 2-12 days

0

11

Snapper 7076998

FITTING, Lube, 1/4-28 Straight
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

12

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

13

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

14

Snapper 5025017X44

BOLT, 1/2-13 X 5-1/2" GD5 YZ
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 3 left!

0

15

Snapper 7091640

BOLT, 3/8-16 x 1" Carriage
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

16

Snapper 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0
