ZF 7301M (84278) - Snapper 73" Mower Deck Assembly Fixed Idler Group Parts Diagram

73" Mower Deck Assembly

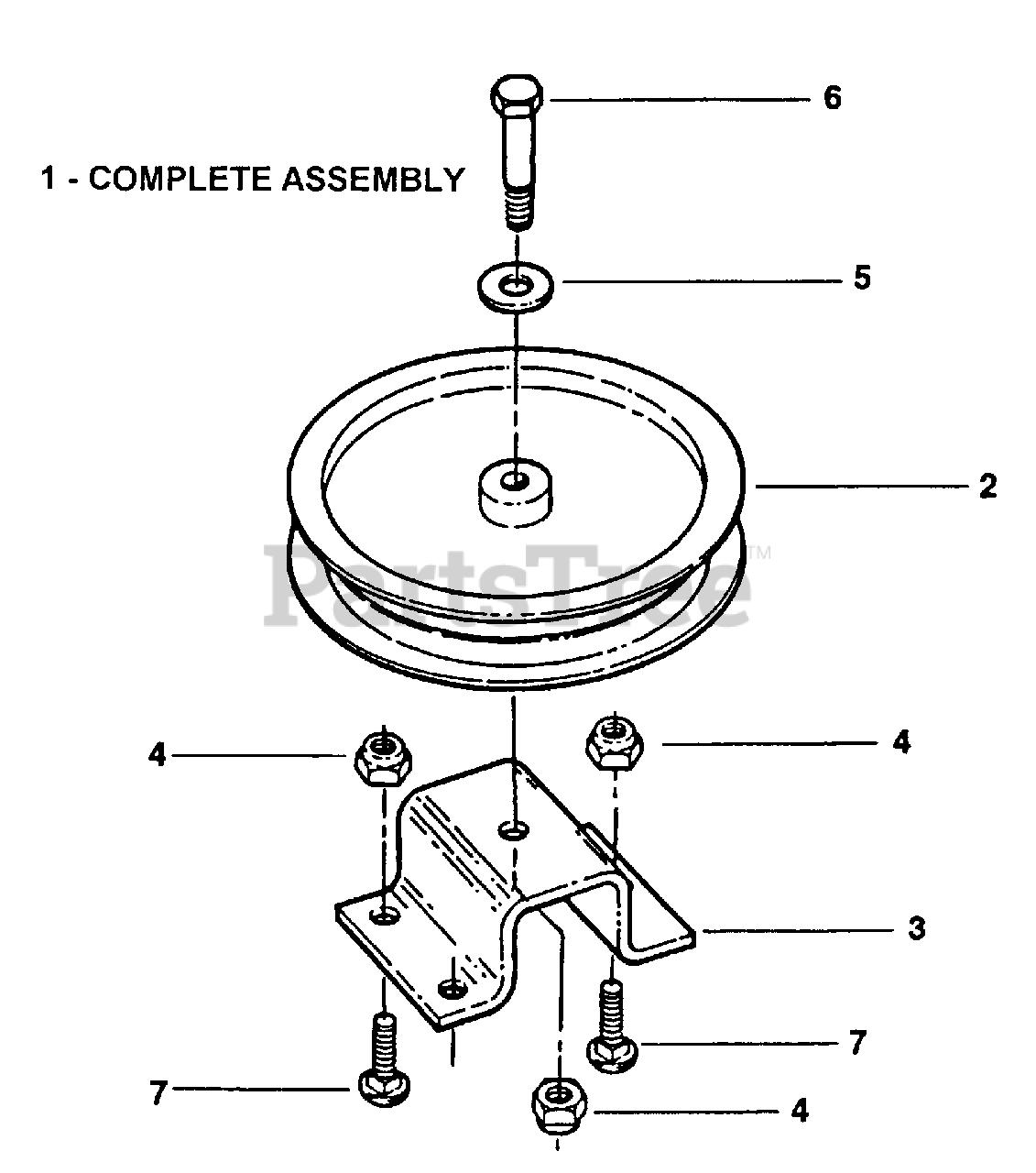

Fixed Idler Group Parts Diagram

  • Title

1

Snapper 7054355

ASSEMBLY, Fixed Idler Group

$

$

Currently unavailable

2

Snapper 7035789

PULLEY, Idler, 5 1/2" O.D.
(Superseded to 7035789YP)

$59.99

$

In Stock, Qty 5

0

3

Snapper 7036449

STAND, Fixed Idler
(Superseded to 7036449YP)

$18.99

$

Usually ships in 2-12 days

0

4

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

Note: Was 91300

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

7

Snapper 7091640

BOLT, 3/8-616 x 1" Round Head Square Neck
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0
