ZF 7301M (7084441) - Snapper 73" Mower Deck Assembly 73" OFZ Mower Deck Assembly Parts Diagram

73" Mower Deck Assembly

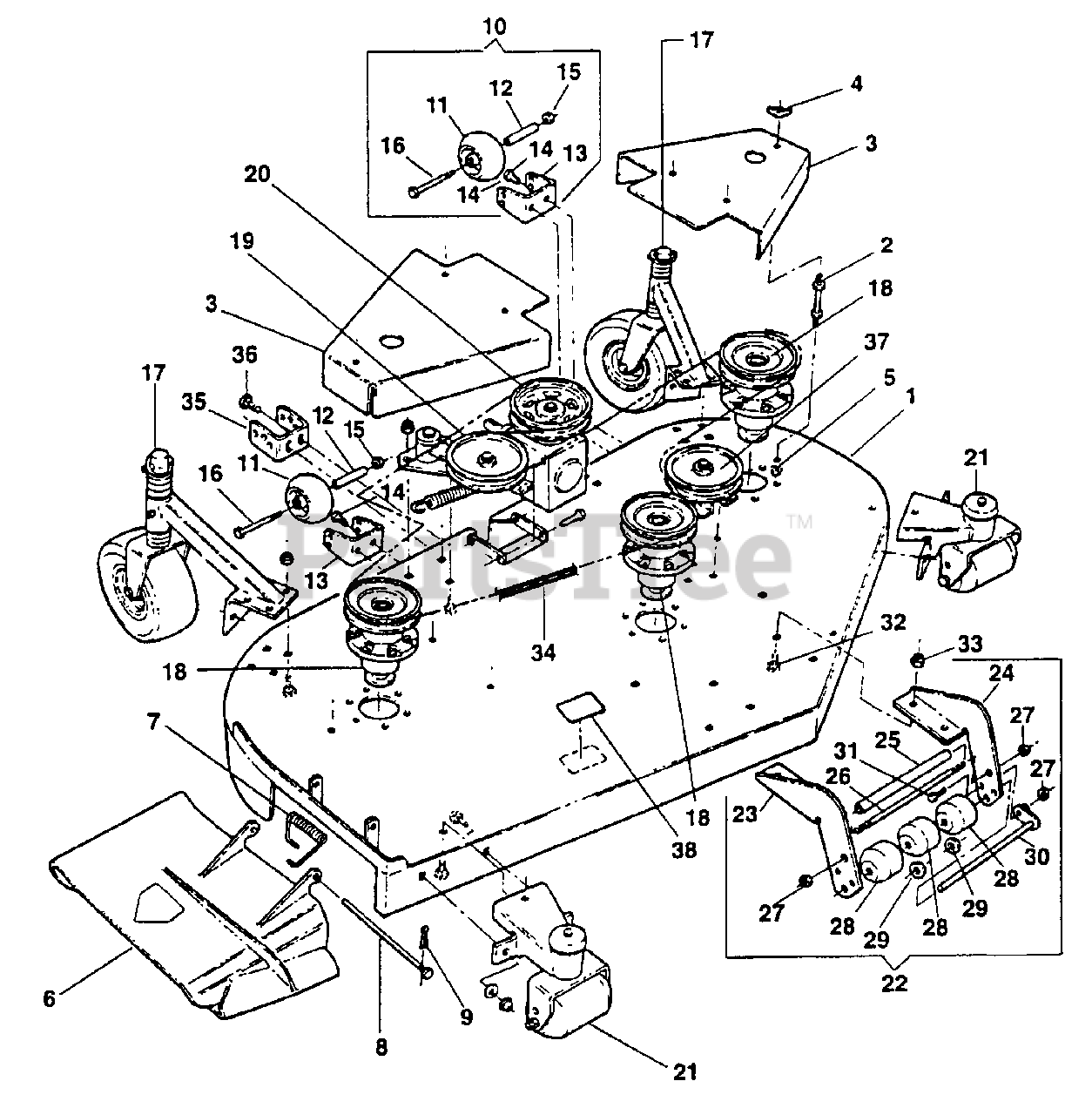

73" OFZ Mower Deck Assembly Parts Diagram

  • Title

1

Snapper Pro 7041901

WELDMENT, 73" OFZ MOWER DECK

$

$

Currently unavailable

2

Snapper Pro 7028864

STANDOFF, 3 1/2"
(Superseded to 7028864YP)

$27.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7046644

GUARD, Belt
(Superseded to 7046644YP)

$104.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7091049

WINGNUT, 3/8-16
(Superseded to 7091049SM)

$5.49

$

In Stock, only 2 left!

0

5

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

6

Snapper Pro 7047139

DEFLECTOR, Chute, 73" Deck (Weldment)
(Superseded to 7047139YP)

$196.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7027950

SPRING, Chute
(Superseded to 7027950YP)

$

$

Not available

8

Snapper Pro 7029277

HINGE PIN, Chute
(Superseded to 7029277YP)

$40.99

$

In Stock, only 2 left!

0

9

Snapper Pro 7091313

PIN, 3/32 x 1" Cotter

$

$

Not available

10

Snapper Pro 7054465

ASSEMBLY, Gage Wheel

Note: (Includes items 11-16)

$

$

Currently unavailable

11

Snapper Pro 7029264

WHEEL, Gage
(Superseded to 7029264YP)

$14.99

$

In Stock, only 2 left!

0

12

Snapper Pro 7036456

SPACER, Gage Wheel

$

$

Not available

13

Snapper Pro 7036457

FORK, Gage Wheel
(Superseded to 7036457YP)

$43.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

15

Snapper Pro 7091325

NUT, 1/2-13 Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, only 3 left!

0

16

Snapper Pro 5025017X40

BOLT, 1/2-13 X 5 GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 2 left!

0

17

GROUP, 9" Caster (Rear)

$

$

Not available

18

GROUP, Spindle

$

$

Not available

19

GROUP, Spring-Loaded Idler

$

$

Not available

20

Snapper Pro 7046624

GEARBOX, Right Angle

$

$

Not available

21

Snapper Pro 7054695

ASSEMBLY, Roller

$

$

Currently unavailable

22

Snapper Pro 7057822

ASSEMBLY, Center Deck Roller

Note: (Includes items 23-33)

$

$

Currently unavailable

23

Snapper Pro 7036458

MOUNT, Roller (R.H.)
(Superseded to 7036458YP)

$51.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 7036459

MOUNT, Roller (L.H.)
(Superseded to 7036459YP)

$54.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 7036460

ROLLER, Tube

$

$

Not available

26

Snapper Pro 7036461

ROD, Threaded Roller
(Superseded to 7036461YP)

$8.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 7091325

NUT, 1/2-13 Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, only 3 left!

0

28

Snapper Pro 7073142

ROLLER, Low Density Poly
(Superseded to 7073142YP)

Note: Was 79226

$16.99

$

In Stock, Qty 7

0

29

Snapper Pro 7027344

WASHER, 5/8" SAE Flat
(Superseded to 7027344SM)

$3.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 7027327

WELDMENT, Pivot Pin
(Superseded to 7027327YP)

$82.99

$

In Stock, only 1 left!

0

31

Snapper Pro 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Carriage, Grade 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

33

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

34

Snapper Pro 7041896

BELT, 164" HB Section
(Superseded to 7041896YP)

$158.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 7046623

BRACKET, Rear Deck Hanger
(Superseded to 7046623YP)

$33.99

$

Usually ships in 2-12 days

0

36

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Carriage, Grade 5 (YZ)
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

37

GROUP, Fixed Idler

$

$

Not available

38

Snapper Pro 7046371

DECAL, 73 Deck
(Superseded to 7046371YP)

$5.99

$

Usually ships in 2-12 days

0

GROUP, ZF73 Decal

Note: (Not Shown)

$

$

Not available

--

Snapper Pro 7013010

DECAL, Warning
(Superseded to 7013010SM)

Note: (Not Shown)

$9.49

$

In Stock, Qty 11

0

--

Snapper Pro 7022522

DECAL, Warning
(Superseded to 7046720SM)

Note: (Not Shown)

$7.49

$

Usually ships in 2-12 days

0

--

Snapper Pro 7073647

DECAL, Caution
(Superseded to 7073647YP)

Note: Was 24156 (Not Shown)

$7.99

$

Usually ships in 2-12 days

0
