ZF 7301M (7084278) - Snapper 73" Mower Deck Assembly Front Caster Assembly Parts Diagram

73" Mower Deck Assembly

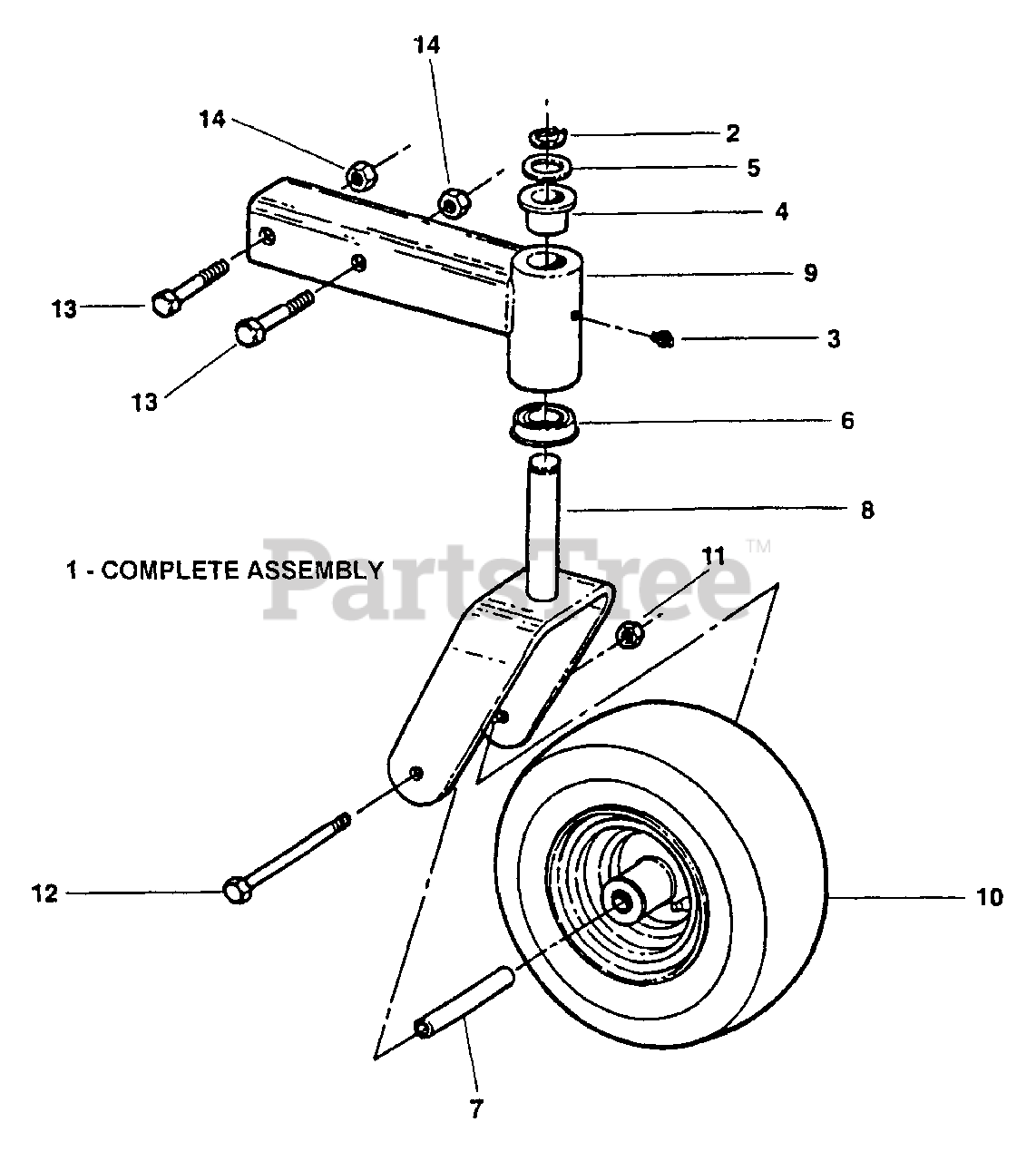

Front Caster Assembly Parts Diagram

  • Title

1

Snapper Pro 7057774

ASSEMBLY, 11" Front Caster

Note: (Includes items 2 thru 14)

$

$

Currently unavailable

2

Snapper Pro 7012709

RING, 1" External Retaining
(Superseded to 703993)

$3.49

$

In Stock, Qty 11

0

3

Snapper Pro 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

4

Snapper Pro 7023556

BUSHING, Caster
(Superseded to 7023556YP)

$8.49

$

In Stock, Qty 20+

0

5

Snapper Pro 7023747

BUSHING, 1" Machine
(Superseded to 7023747YP)

$5.49

$

In Stock, Qty 20+

0

6

Snapper Pro 7029141

BEARING, Flanged Ball
(Superseded to 7029141YP)

$30.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7035359

TUBE, 5/8" O.D. x 18 Gage Wall x 3.545 Long
(Superseded to 1734841SM)

$12.99

$

In Stock, Qty 20+

0

8

Snapper Pro 7046620

YOKE, Caster (Weldment)

$

$

Not available

9

Snapper Pro 7047138

ARM, Telescoping Caster (Weldment)

$

$

Not available

10

Snapper Pro 7053980

ASSEMBLY, Wheel
(Superseded to 1734013SM)

$110.99

$

In Stock, Qty 20+

0

11

Snapper Pro 7090839

NUT, 7/16-14 Hex Head Cap
(Superseded to 7090839SM)

$4.99

$

In Stock, Qty 5

0

12

Snapper Pro 7091772

SCREW, 7/16-14 x 6" Hex Head Cap
(Superseded to 7091772SM)

$8.49

$

In Stock, Qty 20+

0

13

Snapper Pro 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

14

Snapper Pro 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0
