ZF 6101M (7084604) - Snapper 61" Mower Deck Assembly Deck Driveshaft Assembly (Part 1) Parts Diagram

61" Mower Deck Assembly

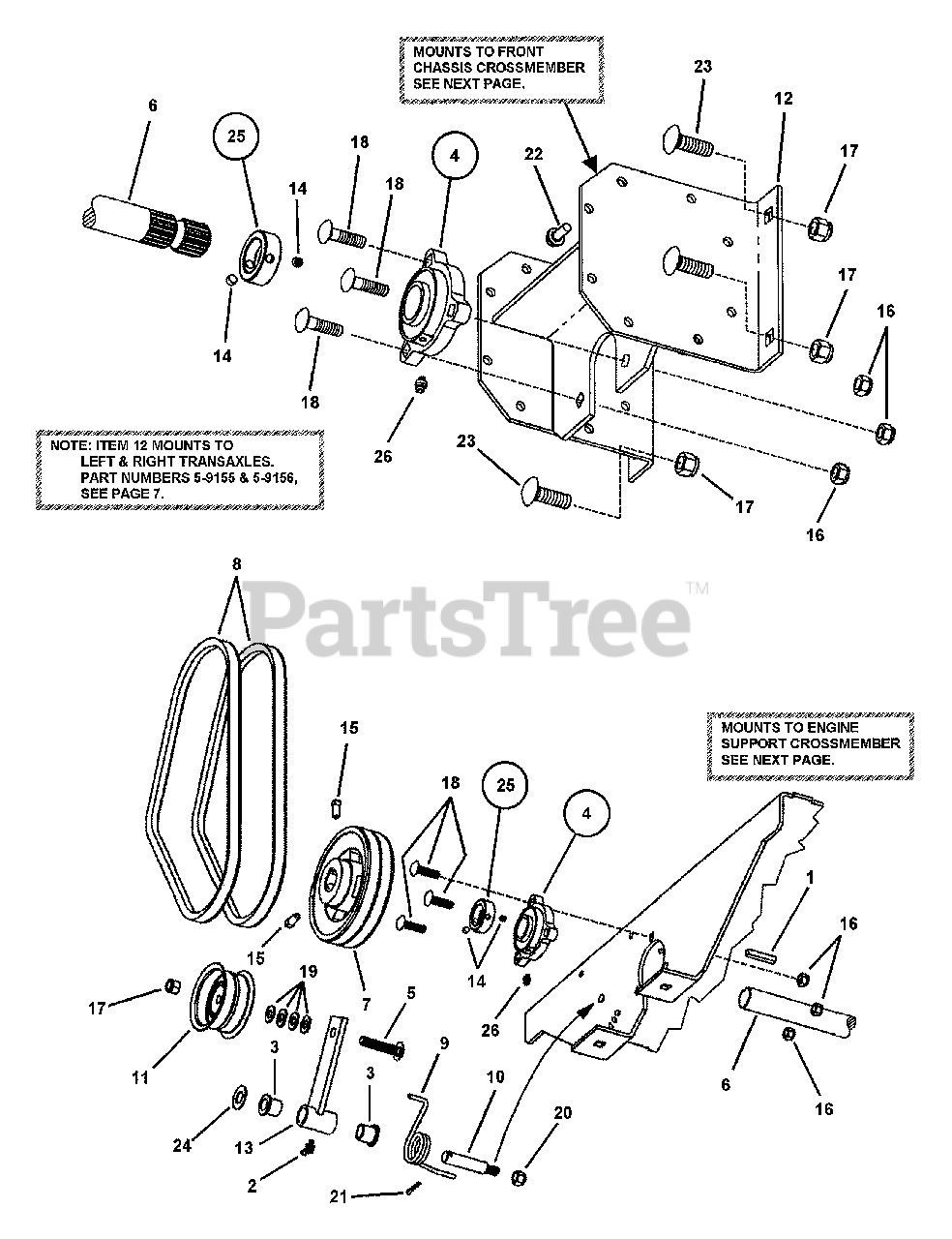

Deck Driveshaft Assembly (Part 1) Parts Diagram

  • Title

1

Snapper Pro 7012315

KEY, 1/4" Square x 2"
(Superseded to 7012315YP)

$2.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7013324

FITTING, Lube (45 degree, for 3/16" hole)
(Superseded to 7013324YP)

$7.99

$

In Stock, Qty 6

0

3

Snapper Pro 7014409

BUSHING
(Superseded to 7014409SM)

$6.99

$

In Stock, Qty 20+

0

4

Snapper Pro 7054658

ASSEMBLY, Bearing
(Superseded to 7054658YP)

Note: (Includes items 25 & 26)

$

$

Not available

5

Snapper Pro 7090990

BOLT, 3/8-16 x 2" Carriage, Grade 2
(Superseded to 7090990YP)

$5.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 7035530

DRIVE SHAFT, Deck (1" Diameter, 15 Spline)

$

$

Not available

7

Snapper Pro 7035531

PULLEY, Double V (5.45 O.D., A Section)

$

$

Not available

8

Snapper Pro 7035543

BELT, Deck Drive (HA 36.5" Eff. Length)
(Superseded to 7035543YP)

$49.99

$

In Stock, only 1 left!

0

9

Snapper Pro 7035713

SPRING, Tension
(Superseded to 7035713YP)

$28.99

$

In Stock, only 1 left!

0

10

Snapper Pro 7035816

PIN, 3/8-24 UNF
(Superseded to 7035816YP)

$100.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7035867

FLAT IDLER, 2.75 O.D. x 1-1/4" Wide
(Superseded to 7035867YP)

$59.99

$

In Stock, only 2 left!

0

12

Snapper Pro 7042610

WELDMENT, Bearing Mount
(Superseded to 7042610YP)

$239.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7042622

IDLER ARM, Straight (Weldment)
(Superseded to 7057717YP)

$

$

Not available

14

Snapper Pro 7090776

SET SCREW, 1/4-20 x 1/4" Cone Point
(Superseded to 7090776YP)

$4.49

$

In Stock, Qty 15

0

15

Snapper Pro 7091802

SET SCREW, 5/16-18 x 5/8 Knurled Cup Point
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0

16

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

18

Snapper Pro 7091928

BOLT, 5/16-18 x 1-1/4", Square Neck Carriage Grade 5
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

19

Snapper Pro 7090122

WASHER, 3/8" Flat

$

$

Not available

20

Snapper Pro 7091518

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

21

Snapper Pro 7091598

COTTER-PIN, 1/8 x 3/4"

$

$

Not available

22

Snapper Pro 7091787

SCREW, 1/4-20 x 5/8", Hex Flange Lock, Grade 5
(Superseded to 7091787SM)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 7027181

BOLT, 3/8-16 x 1-1/4" Carriage, Grade 5

$

$

Not available

24

Snapper Pro 7091804

WASHER, 9/16 Flat
(Superseded to 5103679)

$2.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 7014265

ASSEMBLY, Lock Collar, 1" (with 1/4" Set Screw, item 14)
(Superseded to 7014265YP)

$13.99

$

In Stock, Qty 9

0

26

Snapper Pro 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

Snapper Pro 7059155

TRANSAXLE

$

$

Not available

Snapper Pro 7059156

TRANSAXLE

$

$

Not available
